ME910C1 HW User Guide
1VV0301351 Rev.8 Page 46 of 99 2018-09-28
NOTE:
Do not use any pull up resistor on the HW_SHUTDOWN* line nor any
totem pole digital output. Using pull up resistor may bring to latch up
problems on the ME910C1 power regulator and improper functioning
of the module.
To proper power on again the module please refer to the related
paragraph (“Power ON”)
The unconditional hardware shutdown must always be implemented
on the boards and should be used only as an emergency exit
procedure.

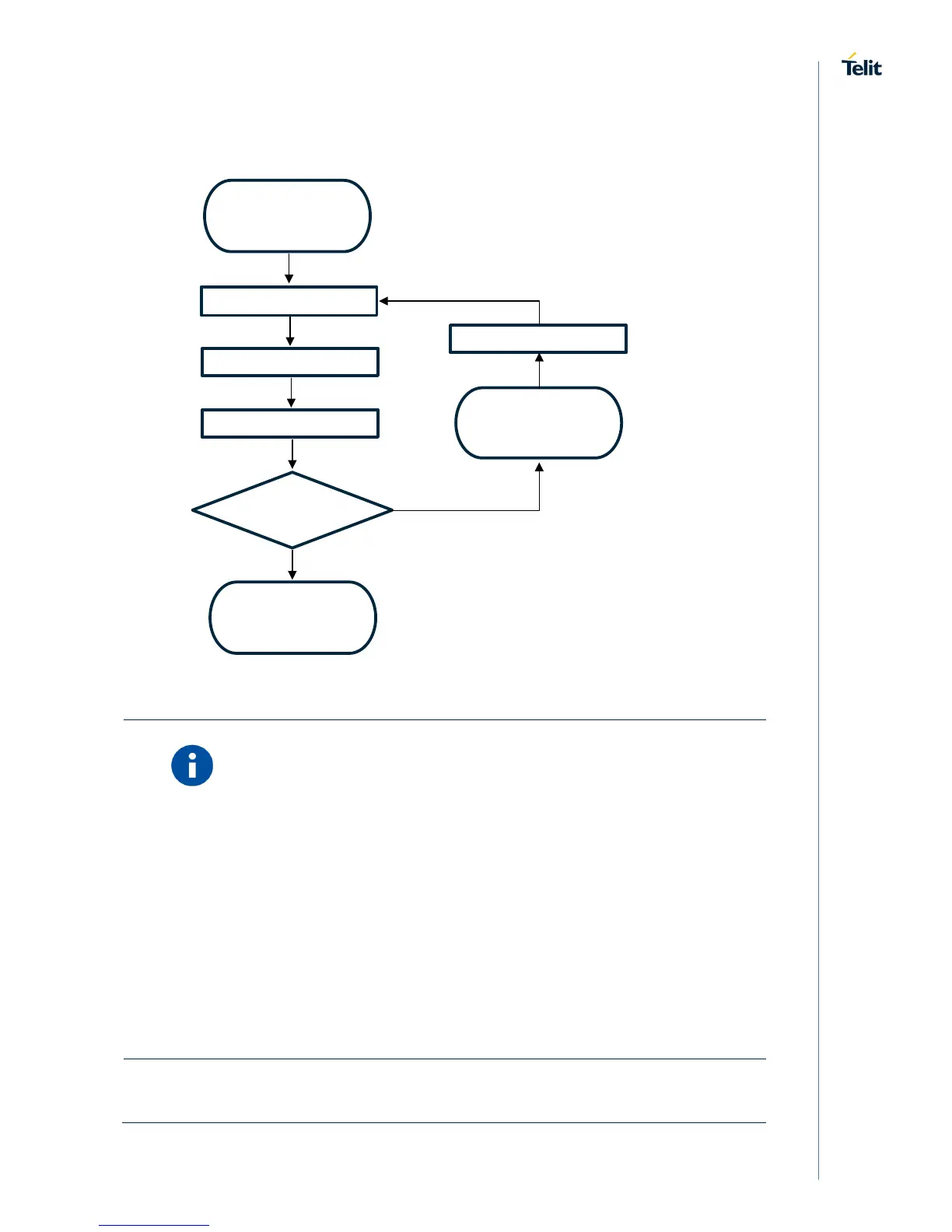

HW SHUTDOWN
Unconditional
START
HW_SHUTDOWN* = LOW
Delay = 200ms
PWRMON = ON
Disconnect
VBATT
Y
N
HW SHUTDOWN
Unconditional
END
HW_SHUTDOWN* = HIGH
Delay = 1s
