8. MECHANICAL DESIGN
Mechanical Dimensions
The ME910X1-mPCIe overall dimensions are:
• Length: 50.95 mm
• Width: 30 mm
• Thickness 3.2 mm (Version with SIM holder : 4.78 mm)
• Weight: 7 gr
Mechanical Drawing
8.2.1. Top View
The figure below shows mechanical top view of the ME910X1-mPCIe, dimension are in
mm.

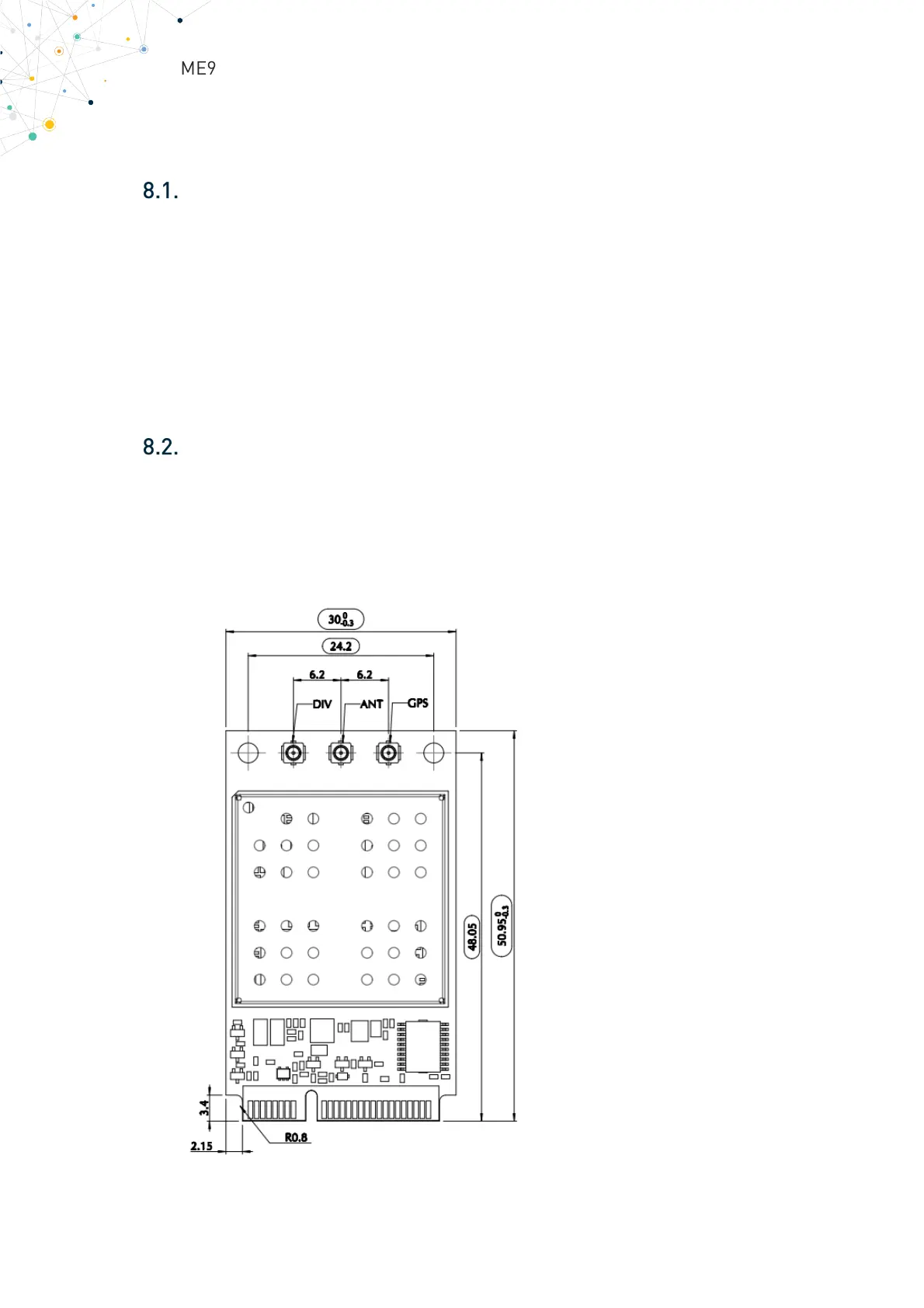

Figure 13 ME910X1-mPCIe Top View
