9. APPLICATION PCB DESIGN
The ME910X1-mPCIe modules have been designed in order to be compliant with a
standard lead-free SMT process.
Recommended Footprint for the Application
ME910X1-mPCIe modules fits any full mPCIe 52 pin socket and latch connectors
compliant with PCI Express Mini Card Electromechanical Specification Revision 2.1
Given below example of board connector (MM60-52B1-E1-R650, JAE) and latch (MM60-
EZH059-B5-R650, JAE) footprint for reference only:

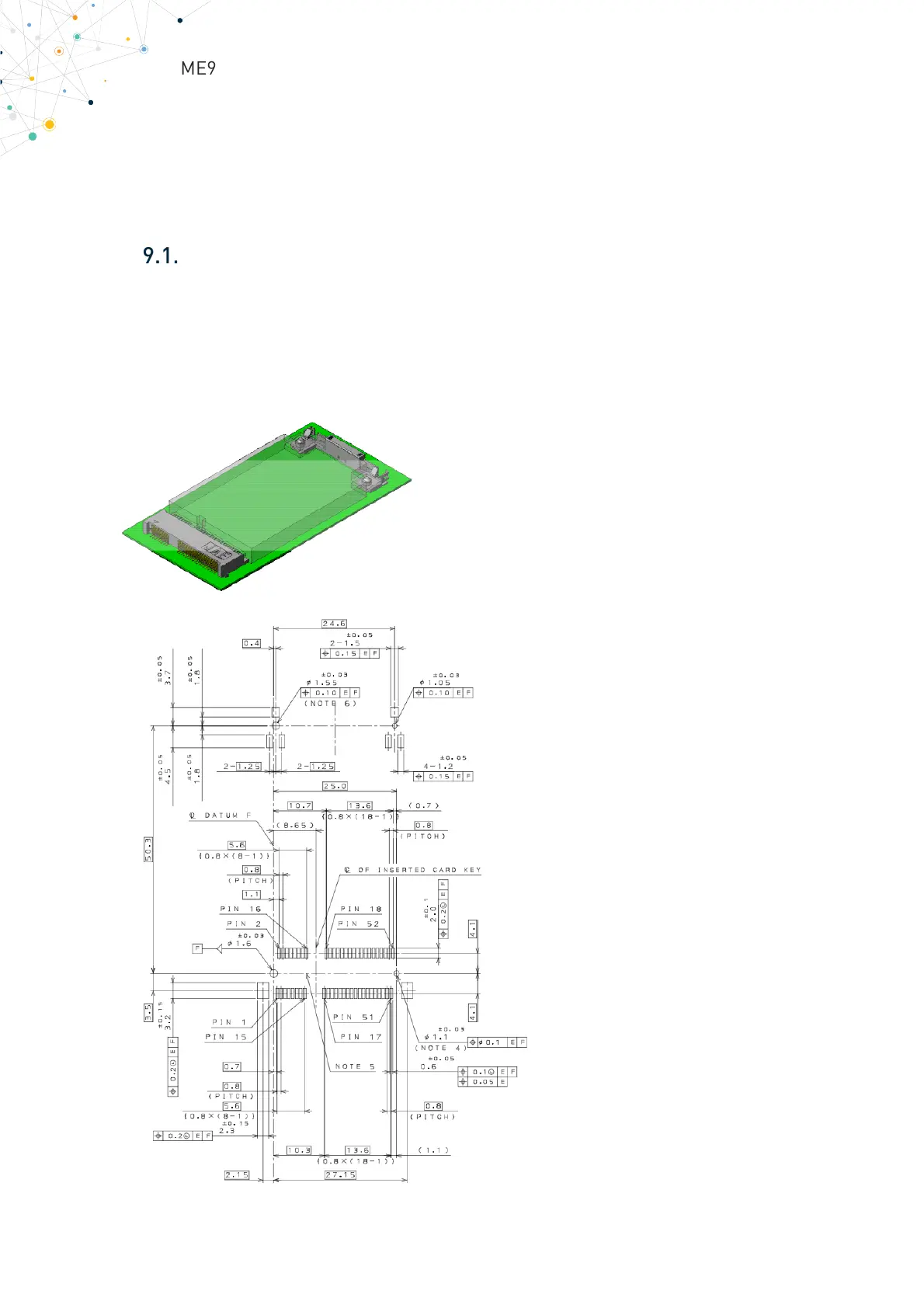

Figure 16 ME910X1-mPCIe Footprint Reference
