Telit Wireless Solutions ME910X1 User Manual

ME910C1 mPCIe HW Design Guide
1VV0301642 Rev. 2 Page 23 of 56 2022-01-14
Not Subject to NDA
OPERATING RANGE – SIM CARD PADS @2.95V:
Parameter
Min
Max
Input High Level
2.1V 3.1V
Input Low Level
-0.3V 0.55V
Output High Level
2.25V 3.1V
Output Low Level
0V 0.4V
Input Leakage Current
-10uA 10uA
Pull-Up Resistance
10kΩ 100kΩ
Pull-Down Resistance
10kΩ 100kΩ
Input Capacitance
5pF
Table 13 Operating Range SIM Card Pads
Power On
The ME910X1-mPCIe will automatically Power ON as soon as VBATT applies to the
module and W_DISABLE_N and PERST_N are HI. The module is ready for use after HW
power Up and SW initialization process completes. For this reason, it is impossible to
access ME910X1-PCIe during the initialization state.
As shown below the ME910X1-mPCIe becomes operational (in the Activation state) at
least 20 seconds after power is applied:

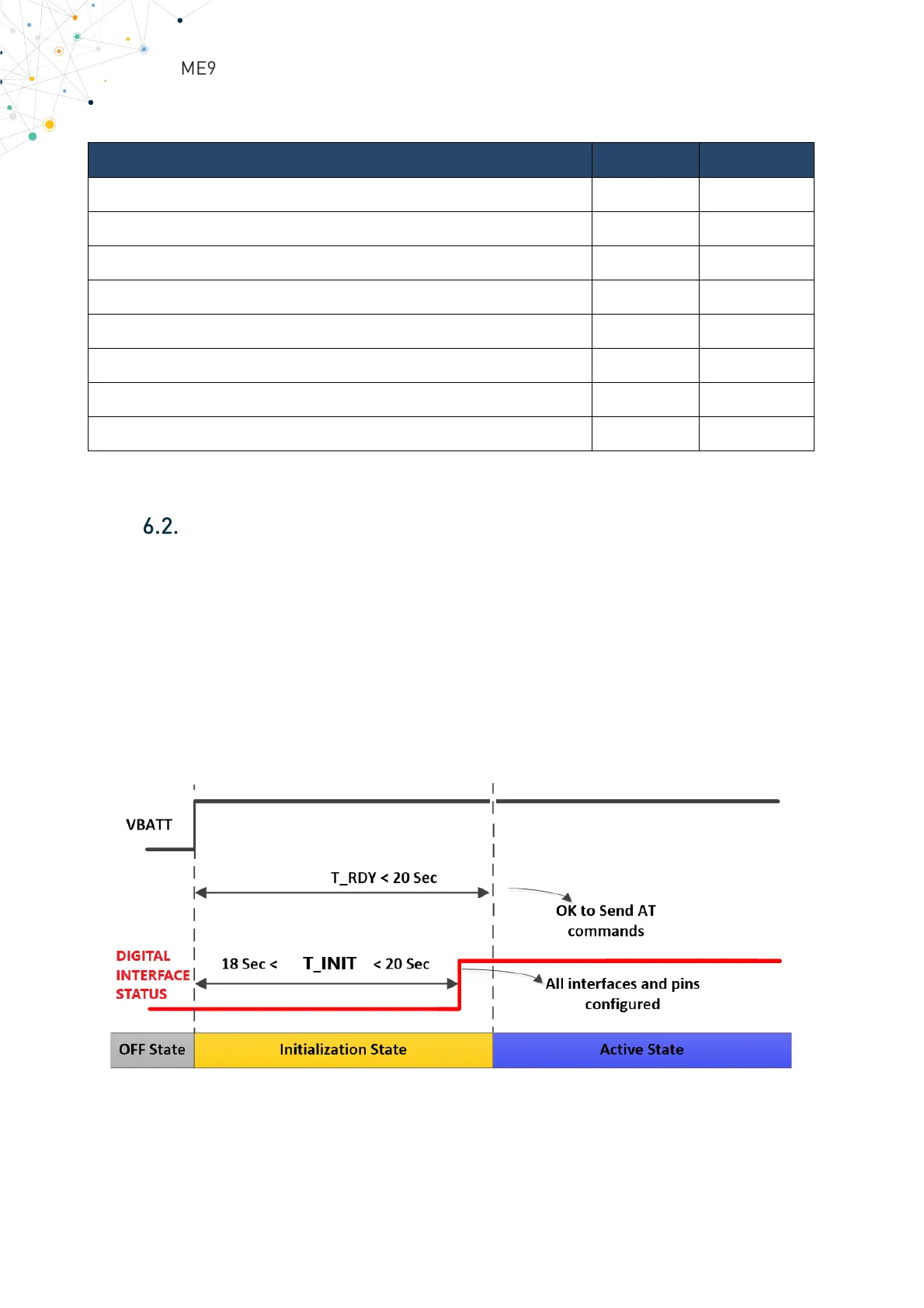

Figure 4 Power On Timing Diagram.
