INTRODUCTION | 3
Hx2 Hybrid

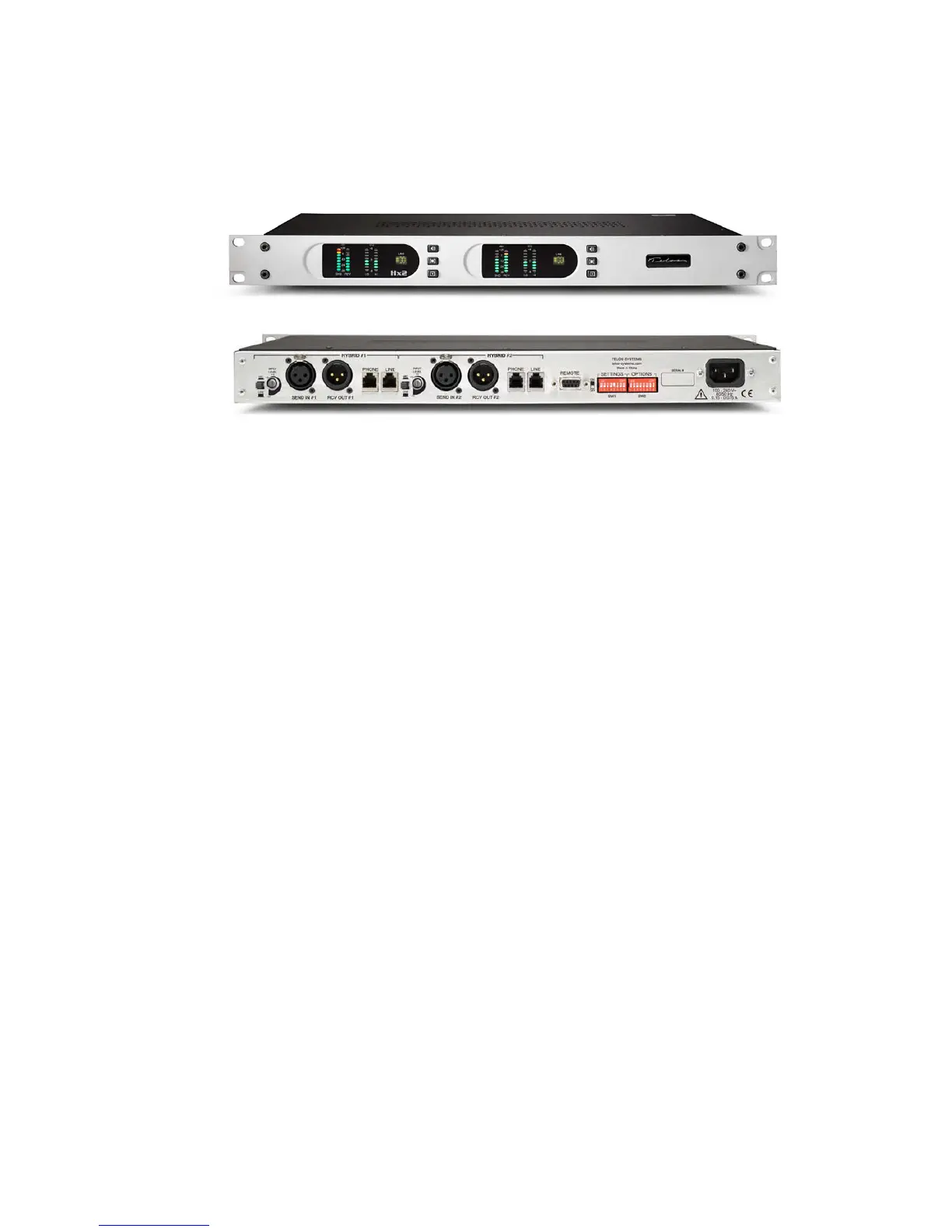

e Telos Hx2 unit consists of two identical digital hybrids in a single 1RU 19 inch
rack-mount enclosure.
e Hx2 can operate as two fully independent hybrids or be congured with an
internal mix-minus to couple the two hybrids, sharing a single mix minus from the
audio console and allowing callers on both hybrids to hear each other and your talent.
e Hx may be controlled remotely via connections available on the unit’s remote
connector (DB-9). Control functions include remote on and o control, and available
status outputs include “line ringing” and “hybrid in use” open-collector indications.
e remote connector allows easy direct connection to 1A2 interfaces, consoles or
other remote control devices.
e unit can be equipped with an optional AES3 module, which plugs into the
motherboard and converts the XLR connections from analog to AES3.
