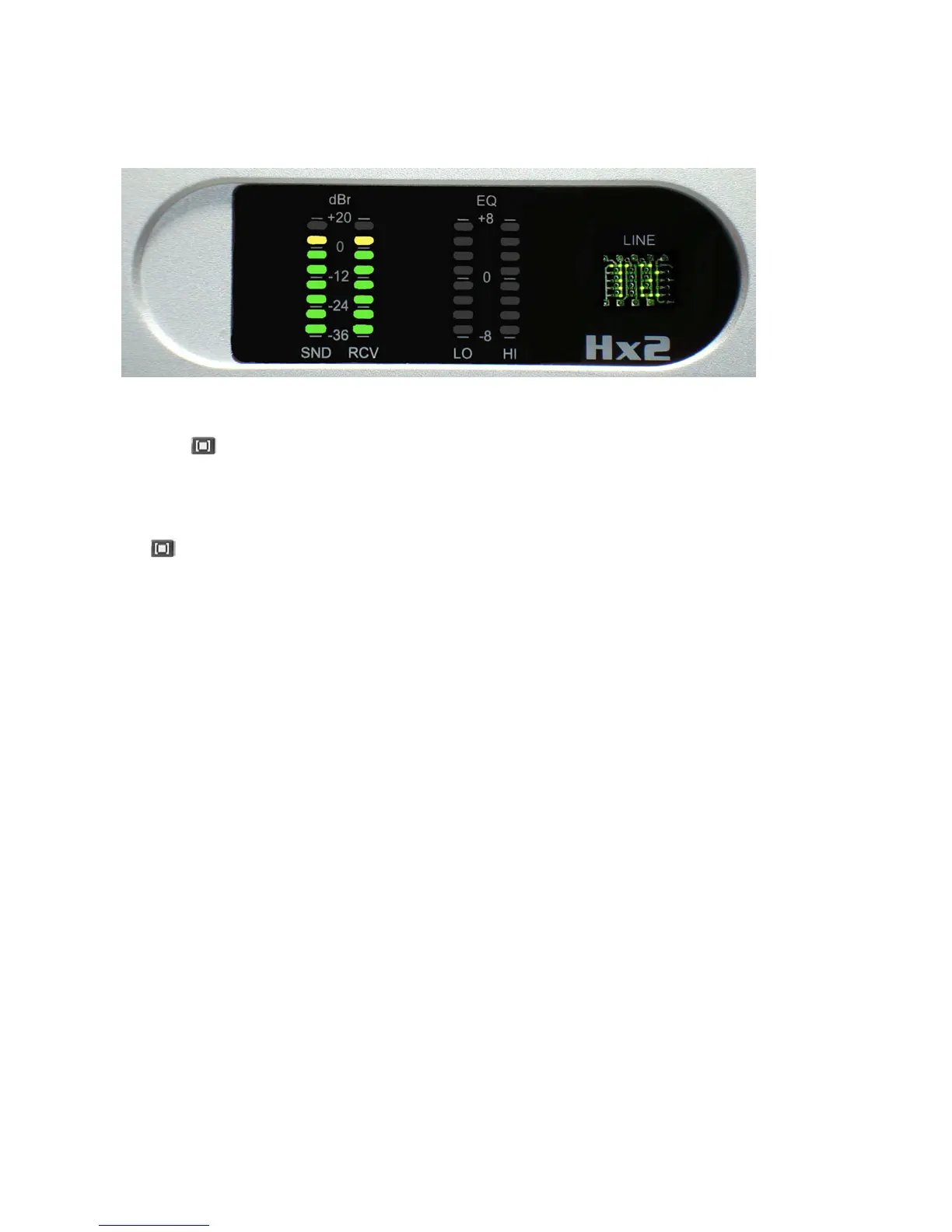

6.1.5 T3 Test - Feed Through Test
Press the button to advance to the next diagnostic test. e Line Status display should
indicate ‘T3’. is test takes audio present at the SEND IN XLR connector and feeds it to the
LINE RJ11 connector without any processing. Likewise, whatever signal is being fed into the
LINE RJ11 connector will be routed to the RCV OUT XLR connector.
is test enables you to test the studio and telephone input and output levels. If you like, press
the
button to skip past this diagnostic test. After the last test in the sequence is complete,
the unit will reset itself and return to normal operation.
6.2 Hardware Repairs
A consequence of modern surface-mount construction is that it is frequently no longer possible
for local repairs to be made. Special and expensive equipment is required to change parts. As
well, today’s equipment is complicated and requires repair technicians to have specic product
experience and training and access to high-end test equipment.
At the same time, the advent of overnight delivery services means that equipment can be
returned to the factory for quick turn-around repair. erefore, we do not expect you to repair
this unit at the component level, and we do not include schematics of the unit in the manual.
Upon request, our support sta can fax or mail you a schematic, should you need one. Please see
the rst pages of this manual for proper procedures on returning units for repair.
TROUBLESHOOTING | 39
