Section 3 - Step-By-Step Assembly
Temp-Cast 2000 Installation Manual
14

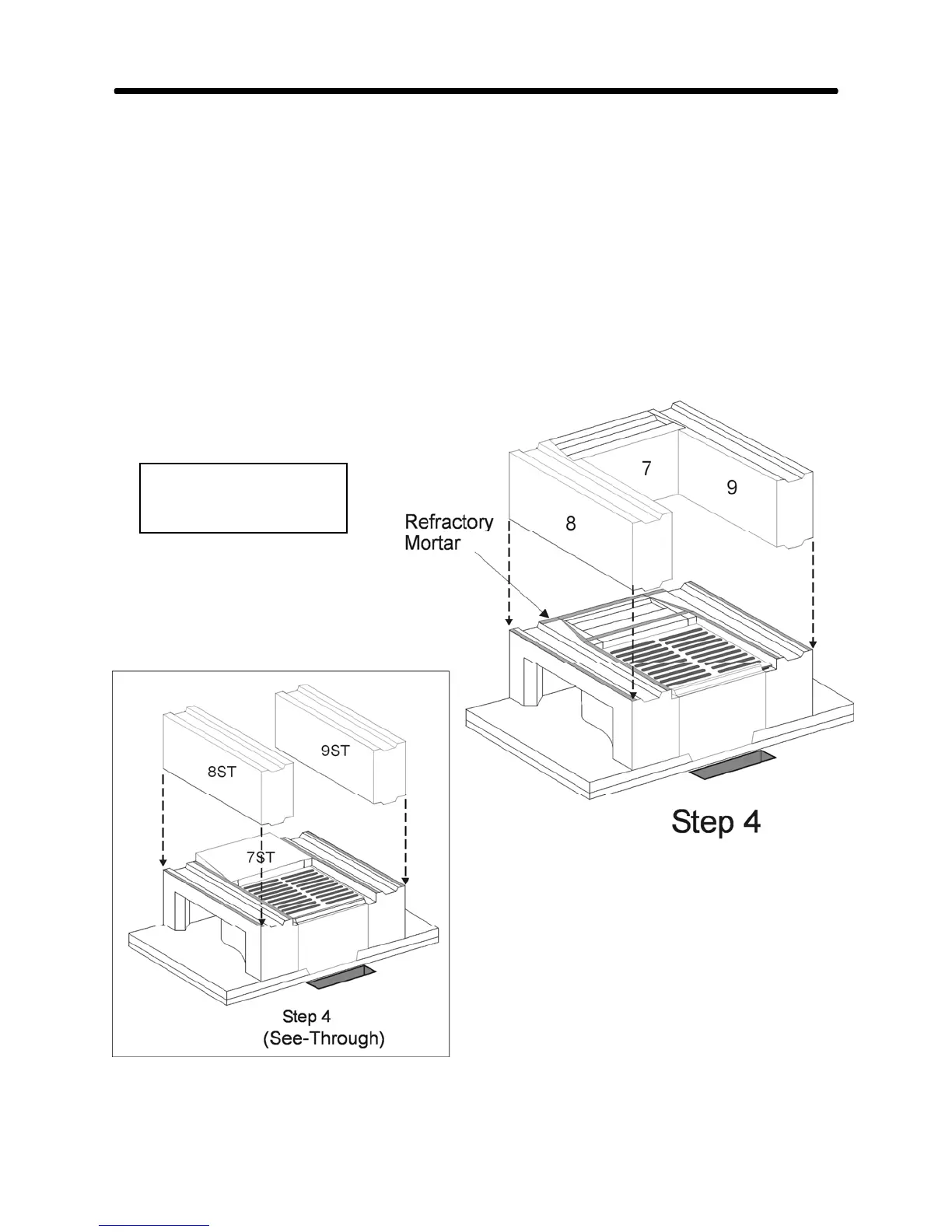

STEP 4:
Assemble the second course, parts #7, #8 & #9. A small bead (½”) of refractory mortar is laid on
the outside edges where the two parts meet. (The bead can be laid either on the part being laid on
or the previous part - whichever is easier.) Note that the parts are numbered in the order that they
should be placed. (For a Temp-Cast "See-Through" fireplace, these 3 parts are slightly different,
as in the accompanying illustration.)
Use the rubber mallet to seat the modules. Remove excess mortar and wipe inside and out with a
damp sponge as work progresses.
NOTE: When installing the modules on this course and subsequent courses around the firebox
opening, take care that the parts are flush at the front of the fireplace. This will produce the most
level surface on which to install the door frame later.
Weights
#7 - 52 lbs
#8, #8ST, #9, #9ST - 68
