Section 3 - Step-By-Step Assembly 25
Temp-Cast 2000 Installation Manual

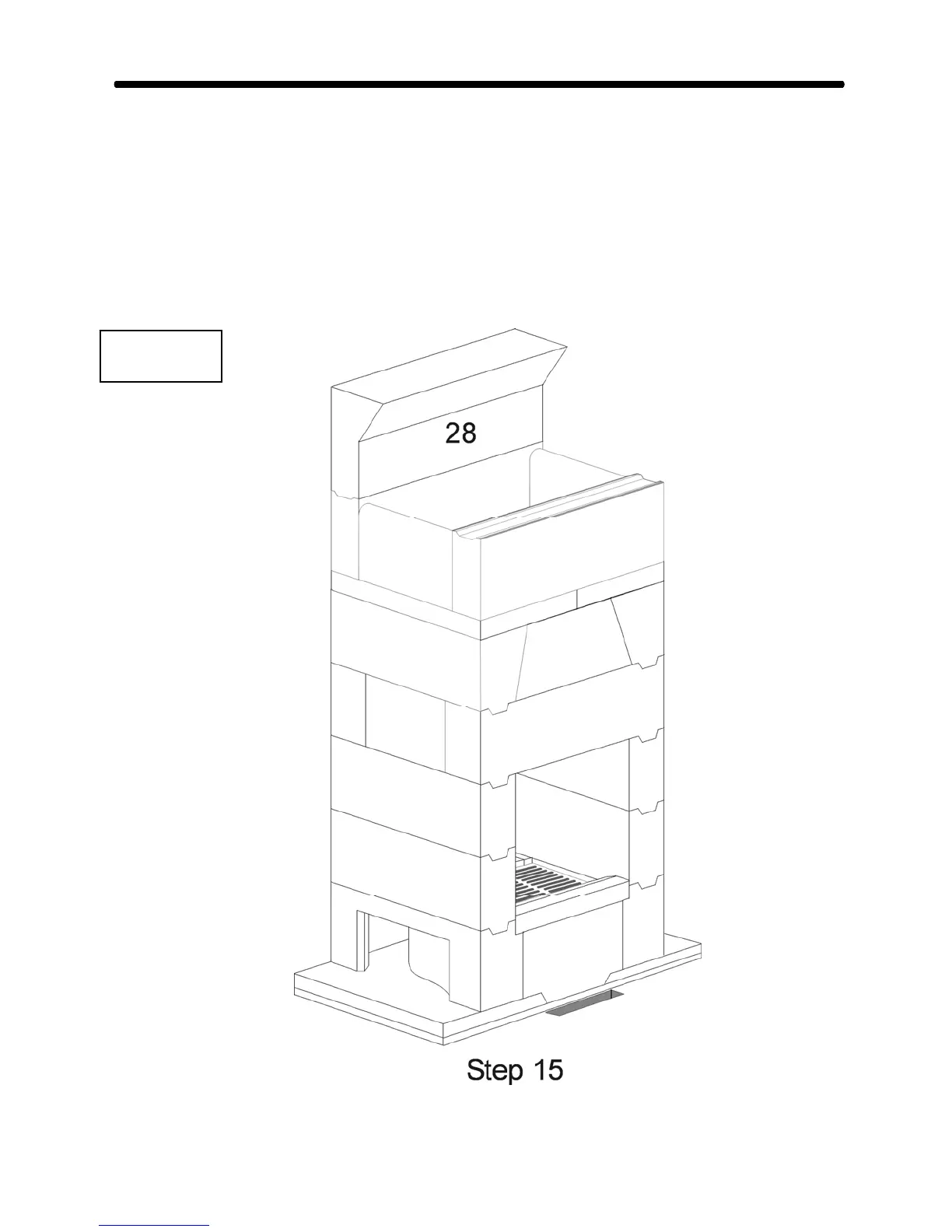

STEP 15:
Install part #28, the upper rear secondary combustion wall.
This is also a heavy part and may require 2 people, so that the previous course does get
disturbed. Installation is easiest if the bottom of the module is placed first into position and then
raised upright. So this part does not tilt inwards, a little extra refractory mortar can be used on
the inside edge of the part.
Weights
#28 - 126 lbs
