Section 3 - Step-By-Step Assembly 27
Temp-Cast 2000 Installation Manual
STEPS 11 THRU 16: (Bake Oven Installation)

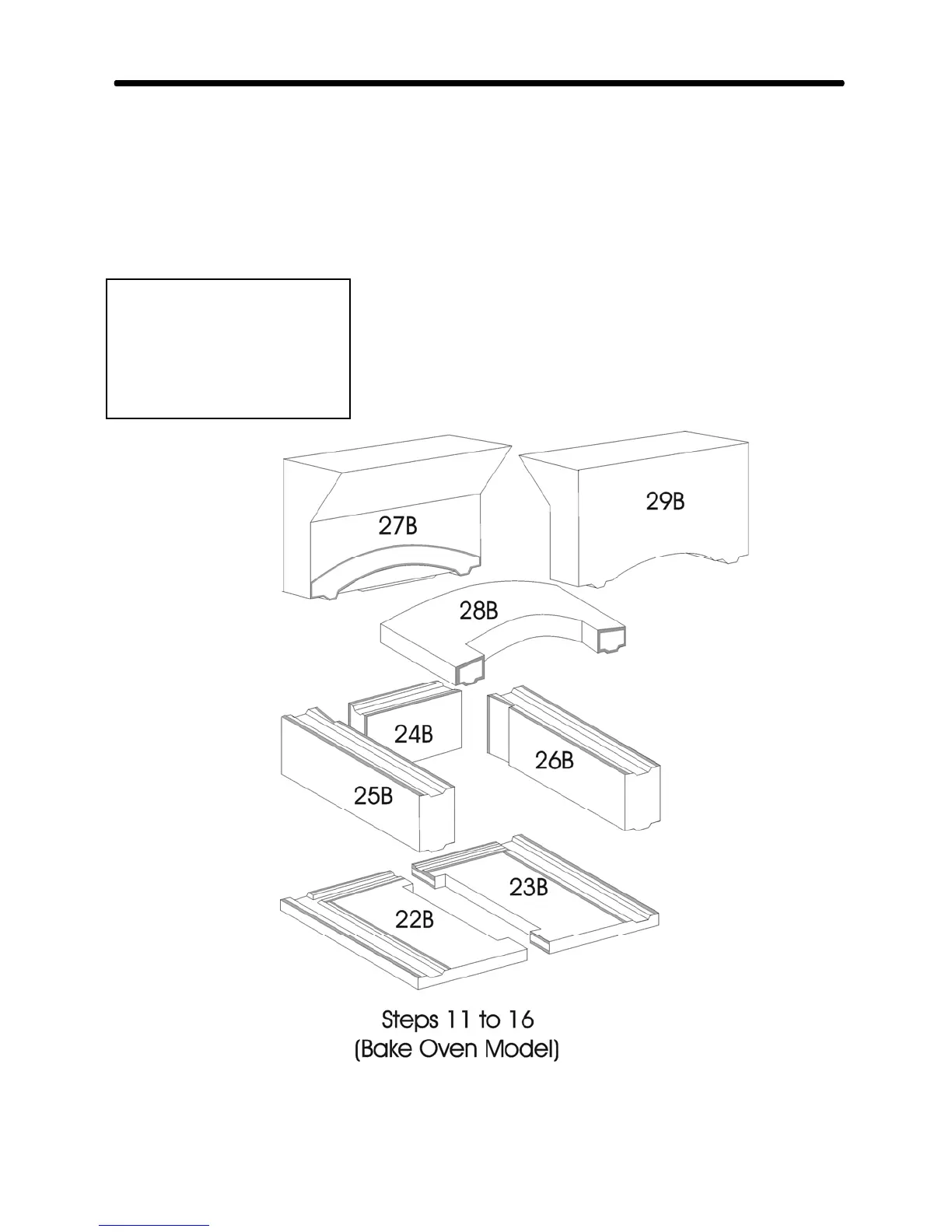

Assemble the Bake Oven parts, in numerical order, as illustrated below. Parts 22B and 23B are
laid with a bead of refractory mortar around the outside edges of the parts and seated with the
rubber mallet. Use refractory mortar wherever one part joins another, as indicated by shaded
areas. (Remember to immediately remove excess mortar and clean the inside with a damp
sponge.)
Weights
#22B, #23B & #24B - 48 lbs
#25B &26B - 51 lbs
#27B - 126 lbs
#28B -100 lbs
#29B - 114 lbs
