Section 3 - Step-By-Step Assembly 28
Temp-Cast 2000 Installation Manual

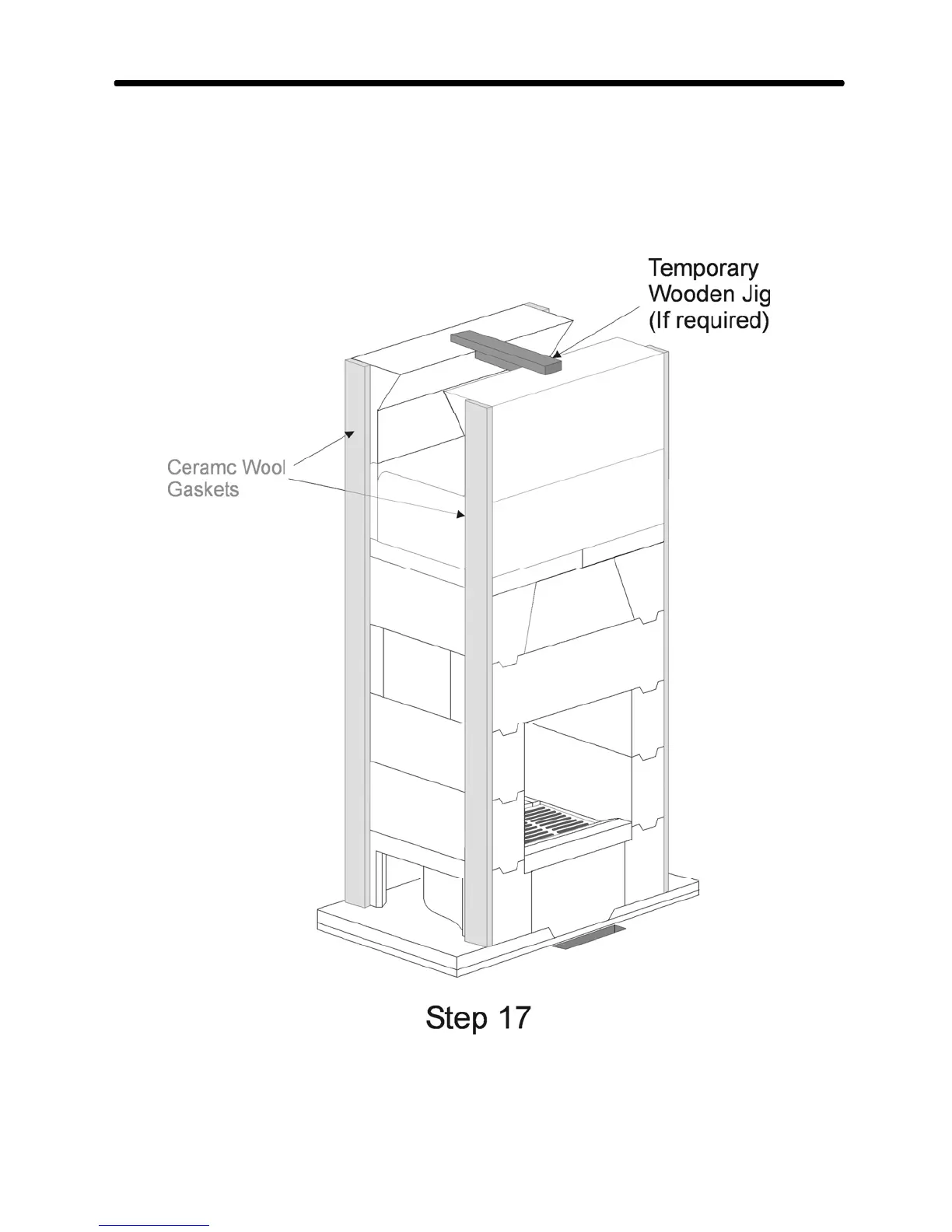

STEP 17:
Find the ceramic fibre "Cutting Plan" in Section 6 for the model you are installing. With a tape
measure, magic marker & straight-edge, transfer the "Cutting Plan" dimensions & piece numbers
to the ceramic fibre. Cut out the four (4) strips marked "3"x72" (Side Channels)" K1 thru K4,
and glue them to the exterior of the core as shown below, using five or six evenly spaced small
dabs of refractory mortar.
