Section 3 - Step-By-Step Assembly 31
Temp-Cast 2000 Installation Manual

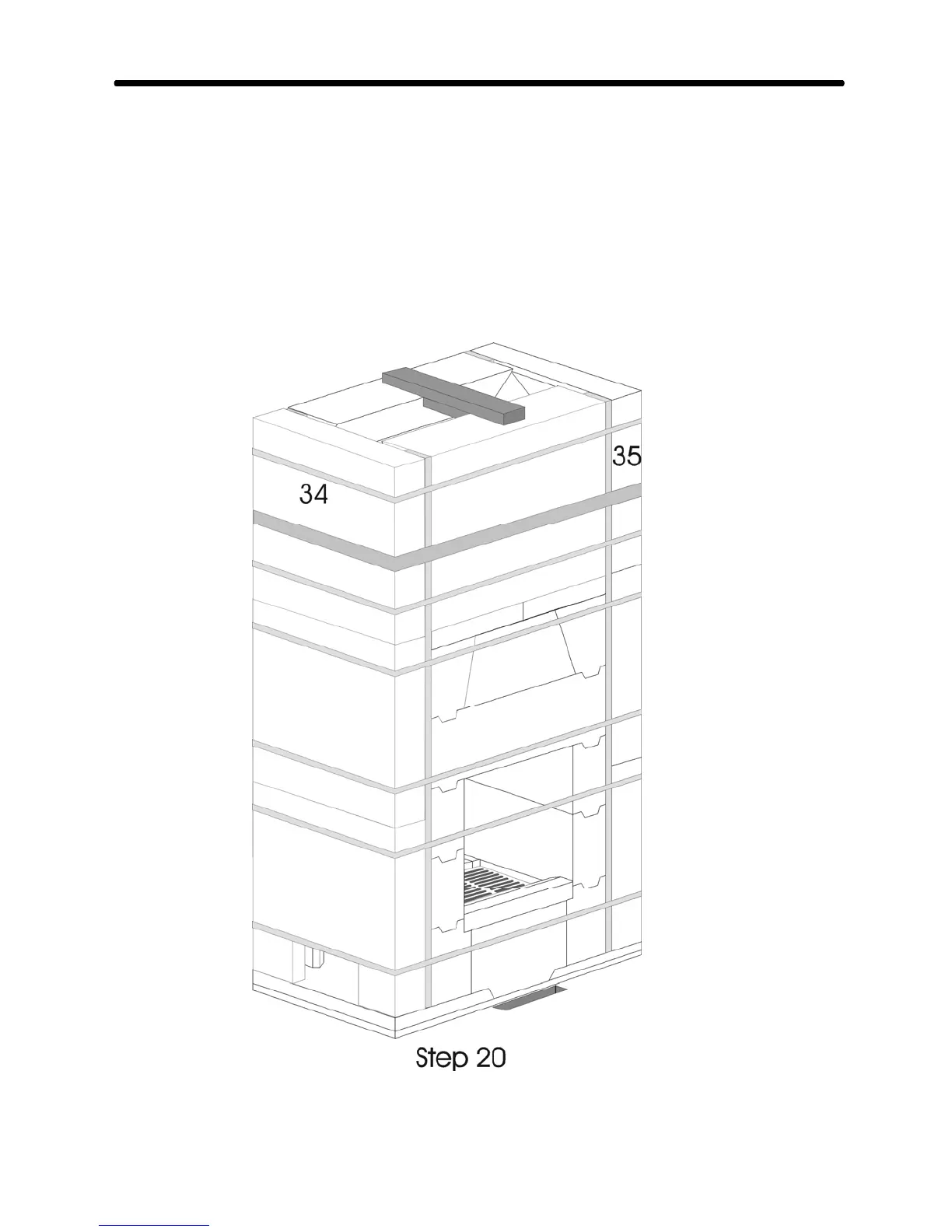

STEP 20:
Install the upper heat exchange channels, #34 & 35. Note that these are slightly different than
the other 4, with a transition formed on the inside upper surfaces, and an enclosed top.
Use a thin refractory mortar joint between these and the previous channels and secure these parts
with the tie down and packing tape. (Remove the temporary wood support jig.)
