Section 3 - Step-By-Step Assembly 33
Temp-Cast 2000 Installation Manual
STEP 21:

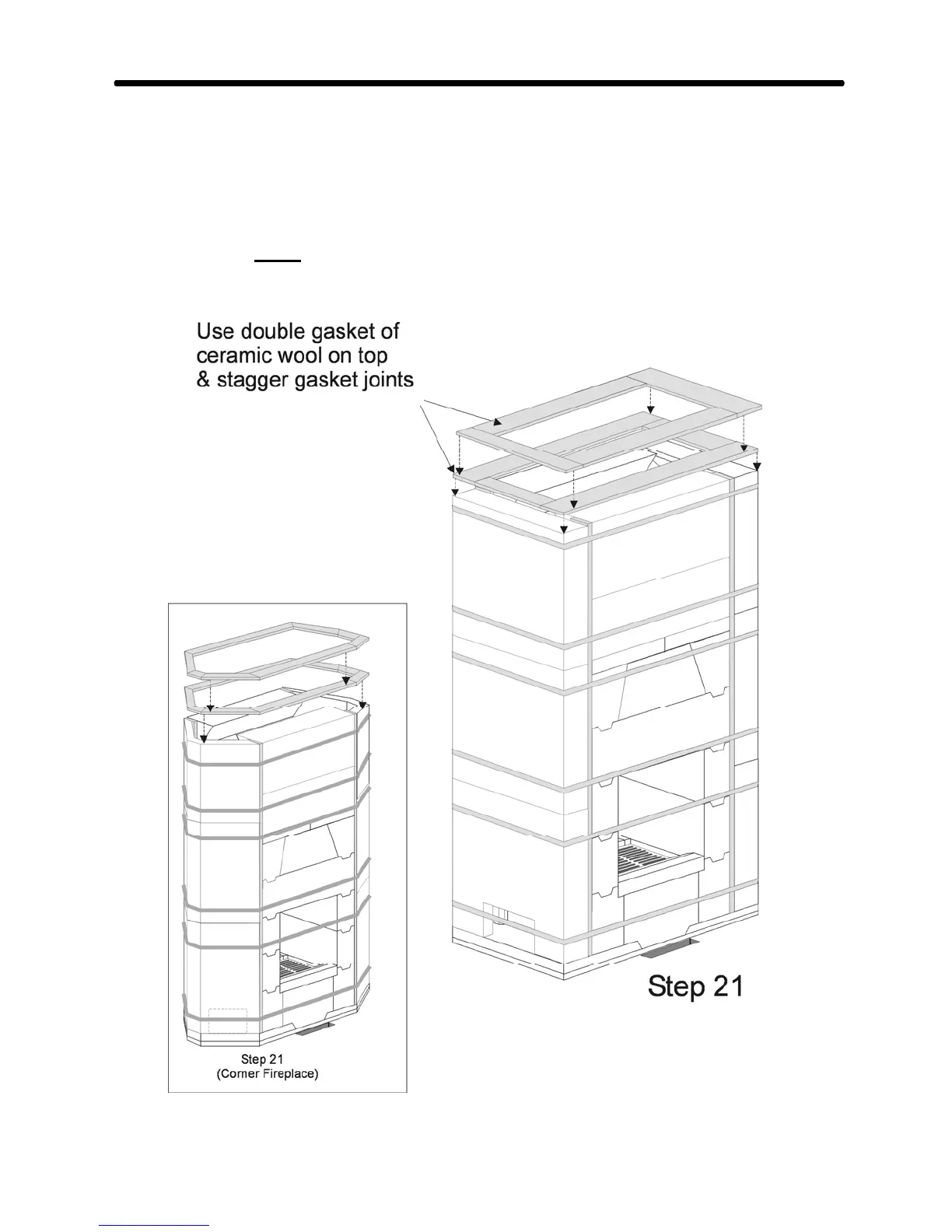

Install a gasket of strips of ceramic wool to the top of the fireplace, as illustrated below. (A few
spaced dabs of refractory mortar can be used to keep gaskets in place.)
On bake oven models, an extra strip should be installed front and rear to bring the center up to
the same level as the top of the side channels (see note below). Install the remaining strips, as
illustrated, using a small dab of refractory mortar to hold them in place. Trim the strips as
required for a snug fit. (Corner fireplace gaskets are placed with the same over-lapping principle
in mind.)
