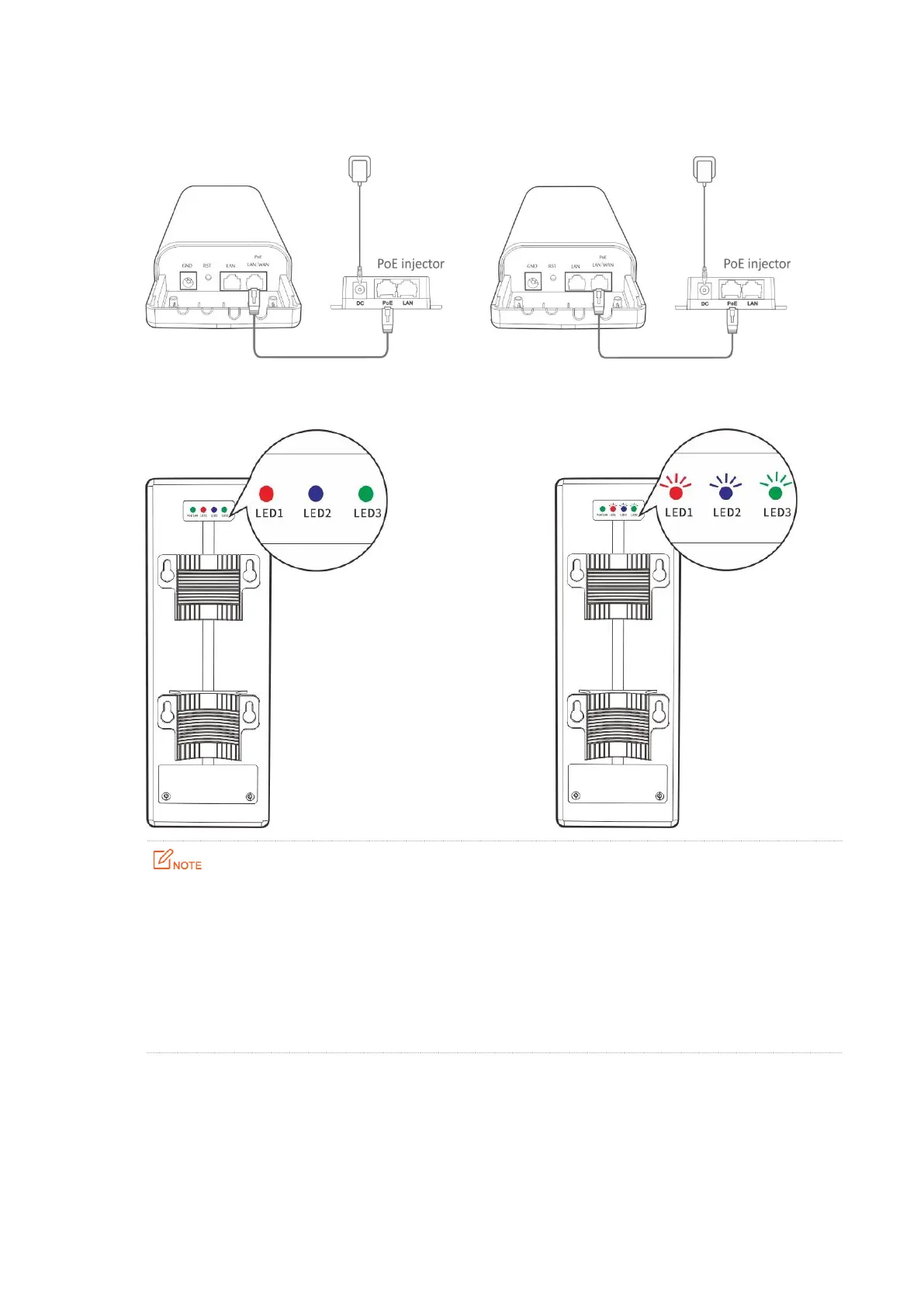

Step 2 Remove the housing of each CPE, and use the included PoE injectors to power them on.
Wait until the LAN/WAN LED indicators of the CPEs light up.
Step 3 Wait for the two CPEs to negotiate and connect to each other automatically. The
following LED indicator status indicates successful connection of the two CPEs.

If the bridging succeeds, the DHCP servers of the two CPEs are disabled, and the IP address of the
CPE working in Client mode changes to 192.168.2.2.

Refer to your actual product for the supported PoE power supply distance.

If the peer-to-peer automatic bridging fails, reset the two CPEs to factory settings, and try again.
Reset method: When the CPEs are working properly, hold down the reset button for about 8
seconds, and then release it. When all LED indicators light up, the CPE is restored to factory settings
successfully.
----End
AP mode
LED 1, 2 and 3 indicators
light solid on
Client mode
LED 1, 2 and 3 indicators
blink

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
