Tenda O3 User Manual

8
Scenario 2: Peer-to-multiple peers bridging
Step 1 Refer to Peer-to-peer bridging to make any two CPEs bridge to each other.
Step 2 Within 30 minutes after the peer-to-peer bridging succeeds, place the rest CPEs which are
in factory settings near the CPE with the LED1, LED2, and LED3 indicators solid on and
power them on. Wait about 1 minute. When the LED1, LED2, and LED3 indicators of these
new-added CPEs keep blinking, the peer-to-multiple peers bridging succeeds.

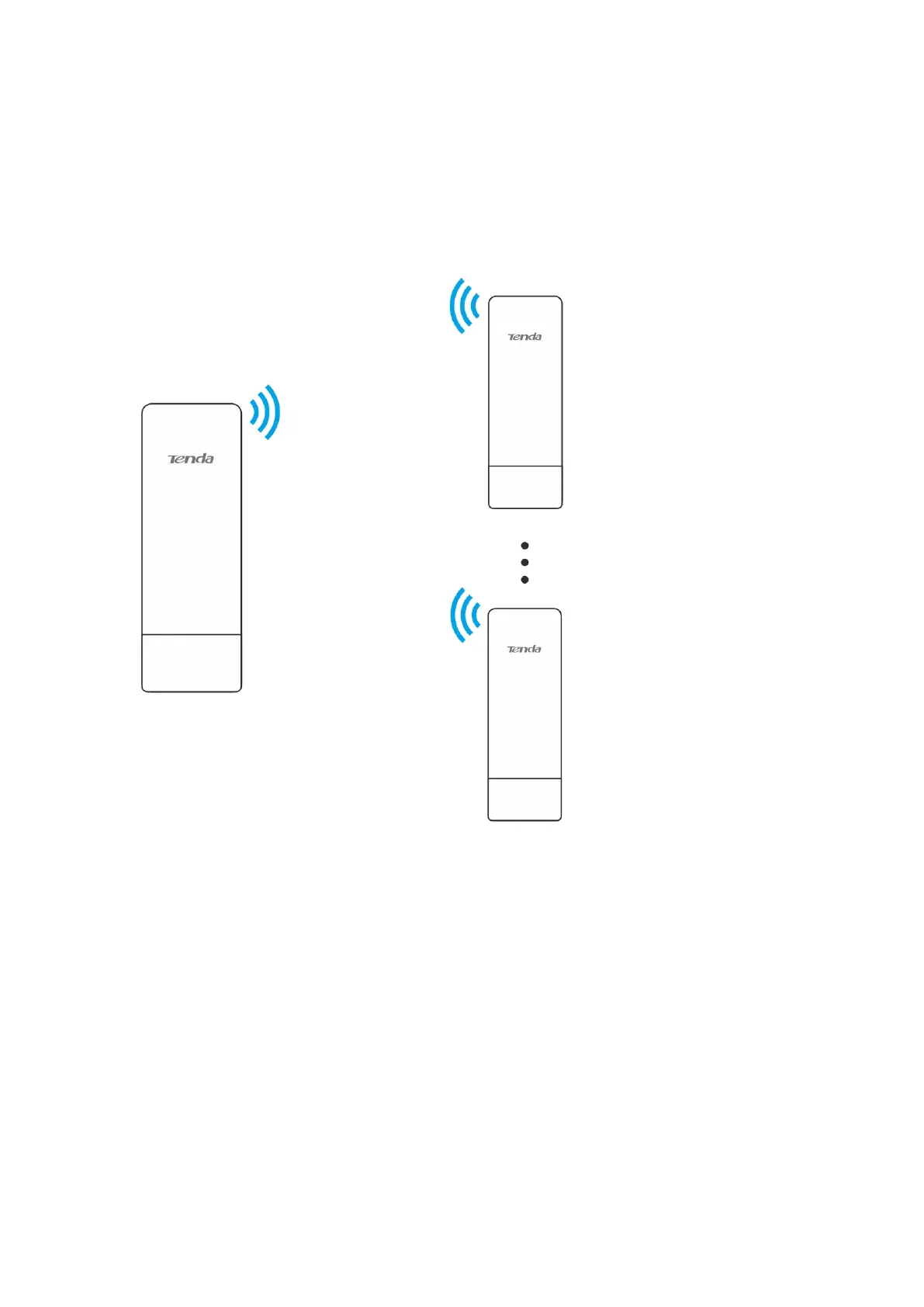

CPE 1: AP mode
LED 1, 2 and 3 indicators light
solid on
Client mode
LED 1, 2 and 3 indicators blink
Client mode
LED 1, 2 and 3 indicators blink
CPE 2
CPE 16

Tenda O3 Specifications

General

5 GHz	No
2.4 GHz	Yes
Number of users	15 user(s)
Transmitting power	29 dBmW
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivity	MCS0: -88dBm MCS7: -72dBm
Maximum outdoor range	5000 m
Maximum data transfer rate	150 Mbit/s
USB 2.0 ports quantity	0
Ethernet LAN (RJ-45) ports	1
Placement	Wall
Certification	FCC / CE / RoHS
Product color	White
LED indicators	LAN, Power, WAN
International Protection (IP) code	IP64
Antenna features	Integrated antenna
Antenna gain level (max)	12 dBi
Output current	1 A
Output voltage	12 V
Power consumption (max)	6 W
Security algorithms	WPA, WPA2, WPA2-PSK
Cables included	LAN (RJ-45)
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	-20 - 55 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	94.86 mm
Width	270 mm
Height	67.5 mm
