145
Configuration procedures

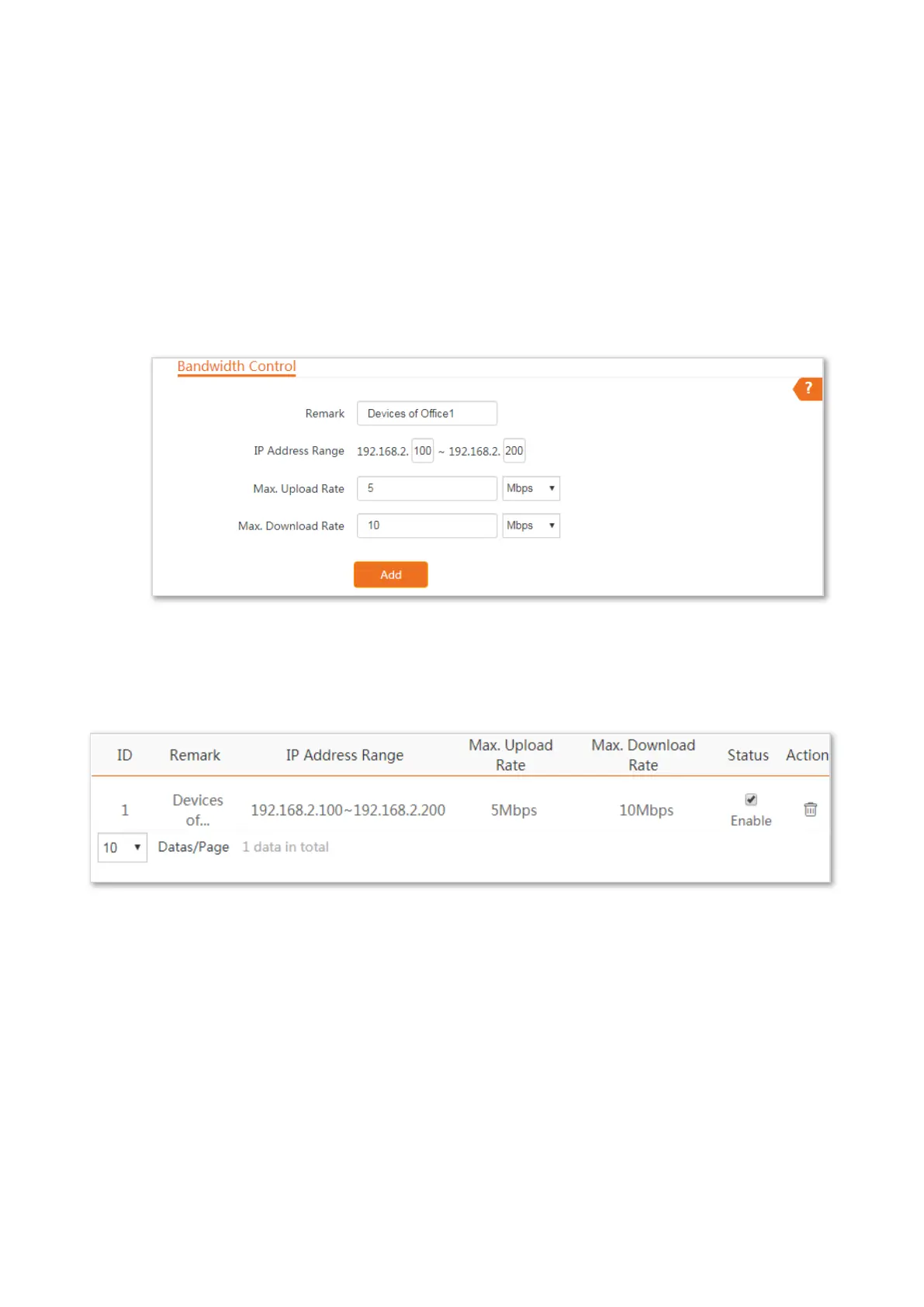

Step 1 Start a web browser on the computer connected to the CPE, visit 192.168.2.1 and choose
Advanced > Bandwidth Control.
Step 2 Enter a remark, such as Devices of Office1.
Step 3 Specify an IP address range, which are 100 and 200 in this example.
Step 4 Specify the maximum upload rate and download rate respectively, which are 5 and 10 in
this example.
Step 5 Click Add.
----End
If the rule is added successfully, it is displayed in the list below the Add button. See the following
figure:
Verification
For a device whose IP address is within the range of 192.168.2.100 to 192.168.2.200, its maximum
upload rate is 5 Mbps and its maximum download rate is 10 Mbps.

Other manuals for Tenda O3

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Tenda O3 and is the answer not in the manual?

Tenda O3 Specifications

General IconGeneral
5 GHzNo
2.4 GHzYes
Number of users15 user(s)
Transmitting power29 dBmW
Networking standardsIEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Receiver sensitivityMCS0: -88dBm MCS7: -72dBm
Maximum outdoor range5000 m
Maximum data transfer rate150 Mbit/s
USB 2.0 ports quantity0
Ethernet LAN (RJ-45) ports1
PlacementWall
CertificationFCC / CE / RoHS
Product colorWhite
LED indicatorsLAN, Power, WAN
International Protection (IP) codeIP64
Antenna featuresIntegrated antenna
Antenna gain level (max)12 dBi
Output current1 A
Output voltage12 V
Power consumption (max)6 W
Security algorithmsWPA, WPA2, WPA2-PSK
Cables includedLAN (RJ-45)
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)-20 - 55 °C
Operating relative humidity (H-H)10 - 90 %
Weight and Dimensions IconWeight and Dimensions
Depth94.86 mm
Width270 mm
Height67.5 mm
