Tenda W150D User Manual

ADSL2/2+ Router
or disallow clients at specific MAC addresses to connect to your
wireless network.
MAC Address Filter:
Selecting “Disable” means to deactivate the MAC
address filter feature. “Allow Access to Wireless Network” only allows
PCs at specified MAC addresses to connect to your wireless network
while
“
Deny Access to Wireless Network
”
only blocks PCs at specified
MAC addresses from connecting to your wireless network.
Add: Click it to add a new MAC to the MAC address list.
Delete: Click it to remove an existing entry.

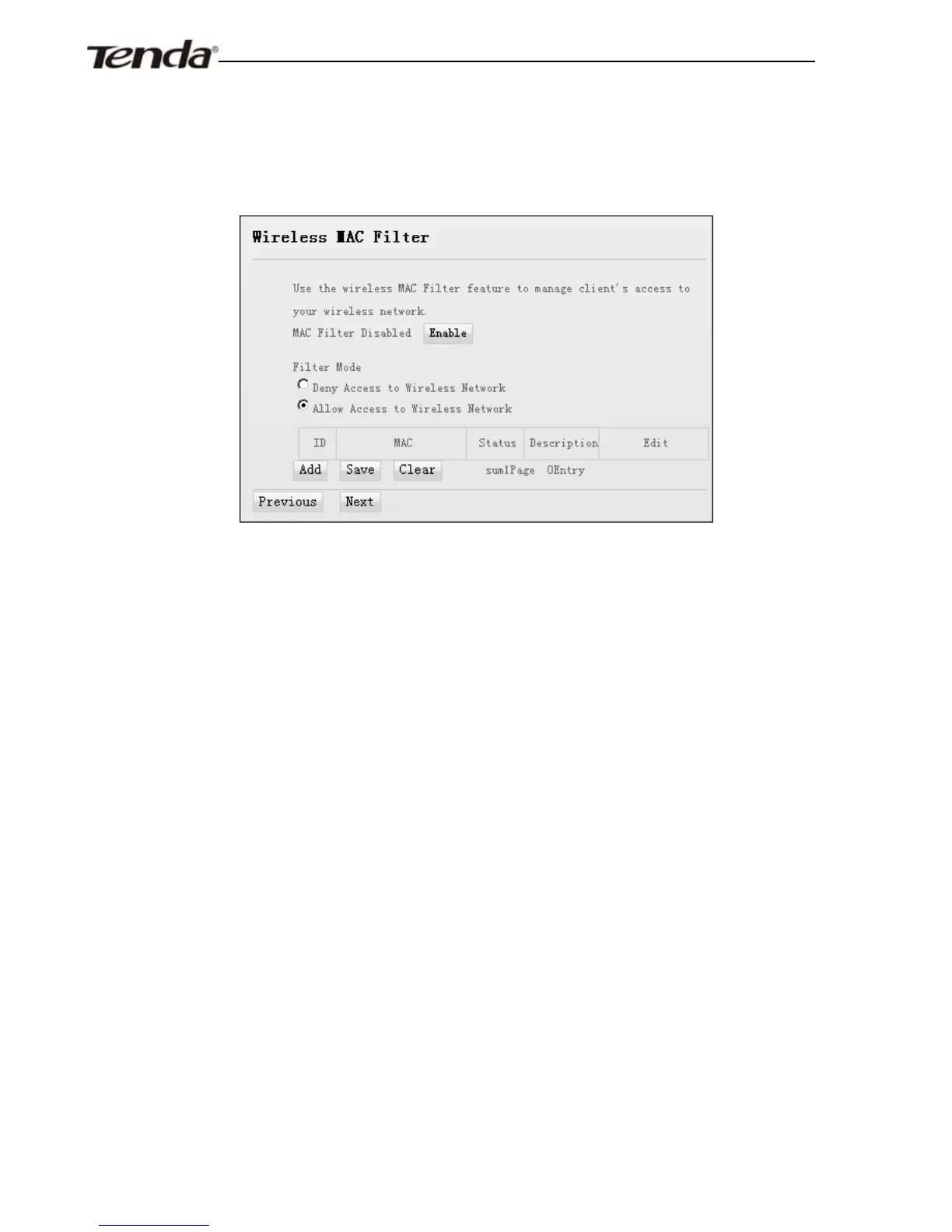

For example: To allow only a PC at the MAC address of
44:37:e6:2a:18:52 to connect to your wireless network, do as follows:
1. Click “Add”, enter “44:37:e6:2a:18:52”, fill in Description field
and select “Enable” as seen below:
- 55 -

Tenda W150D Specifications

General

VPN support	PPPTP, L2TP, Ipsec
Ethernet LAN	Yes
Cabling technology	10/100Base-T(X)
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet LAN interface type	Fast Ethernet
Wi-Fi band	No
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Channels quantity	13 channels
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
WLAN data transfer rate (max)	150 Mbit/s
Bandwidth	2.4 GHz
Interface	LAN, WAN, WLAN
USB ports quantity	0
Networking features	Ethernet, Fast Ethernet
Maximum data transfer rate	0.1 Gbit/s
Minimum system requirements	Internet Explorer 6.0 / Firefox 1.0
Supported data transfer rates	10/100Mbit/s
WLAN data transfer rates supported	11, 54, 150 Mbit/s
Supported network protocols	IPoE, PPPoE, PPPoA, IPoA, DHCP server
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK
Antennas quantity	1
Antenna gain level (max)	5 dBi
Web-based management	-
Ethernet LAN (RJ-45) ports	4
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (typical)	9 W
Storage temperature (T-T)	-40 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 90 %
Certification	FC, CE, RoHS
Cables included	LAN (RJ-45)
Product color	White
LED indicators	DSL, LAN, Link, Power, WAN, WLAN

Weight and Dimensions

Depth	171.95 mm
Width	118.97 mm
Height	31 mm
Weight	- g
