c. SYSTEM OVERVIEW
FIgures 1, 2, and 3 refer to all controls, indicators, and connectors on the TX Console. The
associated table 1 describes these in detail.
Console Overview
Table 1. Controls, Indicators, and Connections
NUMBER NAME DESCRIPTION
1 REAR PANEL LABEL Displays system ratings, serial number, warnings and cautions
2 ON/OFF SWITCH "I" is ON and "O" is OFF
3 EQUIPOTENTIAL GROUND
STUD
Provides a means of securely linking the earth grounds of the
Console to other grounded equipment
4 FUSE HOLDER Holds system fuses
5 ETHERNET/USB PORTS Factory use
6 FOOT PEDAL CONNECTOR Connection for system foot pedal
7 AC POWER INPUT Provides power connection and overload protection to
the system
8 SERIAL NUMBER Unique code assigned for identication of the unit
9 CARTRIDGE LOCK Locking mechanism for tube set cartridge
10 VACUUM SENSOR Sensor for measuring vacuum
11 CARTRIDGE RELEASE BUTTON Releases the tube set cartridge when pressed
12 CUT CONNECTOR Provides power to TX MicroTip
13 AIR CONNECTOR Provides pressurized air to irrigation cuff
14 IRRIGATION VALVE Controls ow of irrigation uid
15 VENT VALVE Controls aspiration line venting
16 PERISTALTIC PUMP HEAD Provides system aspiration
17 TOUCHSCREEN DISPLAY Provides access to user interface
18 SPEAKERS Provide audible feedback

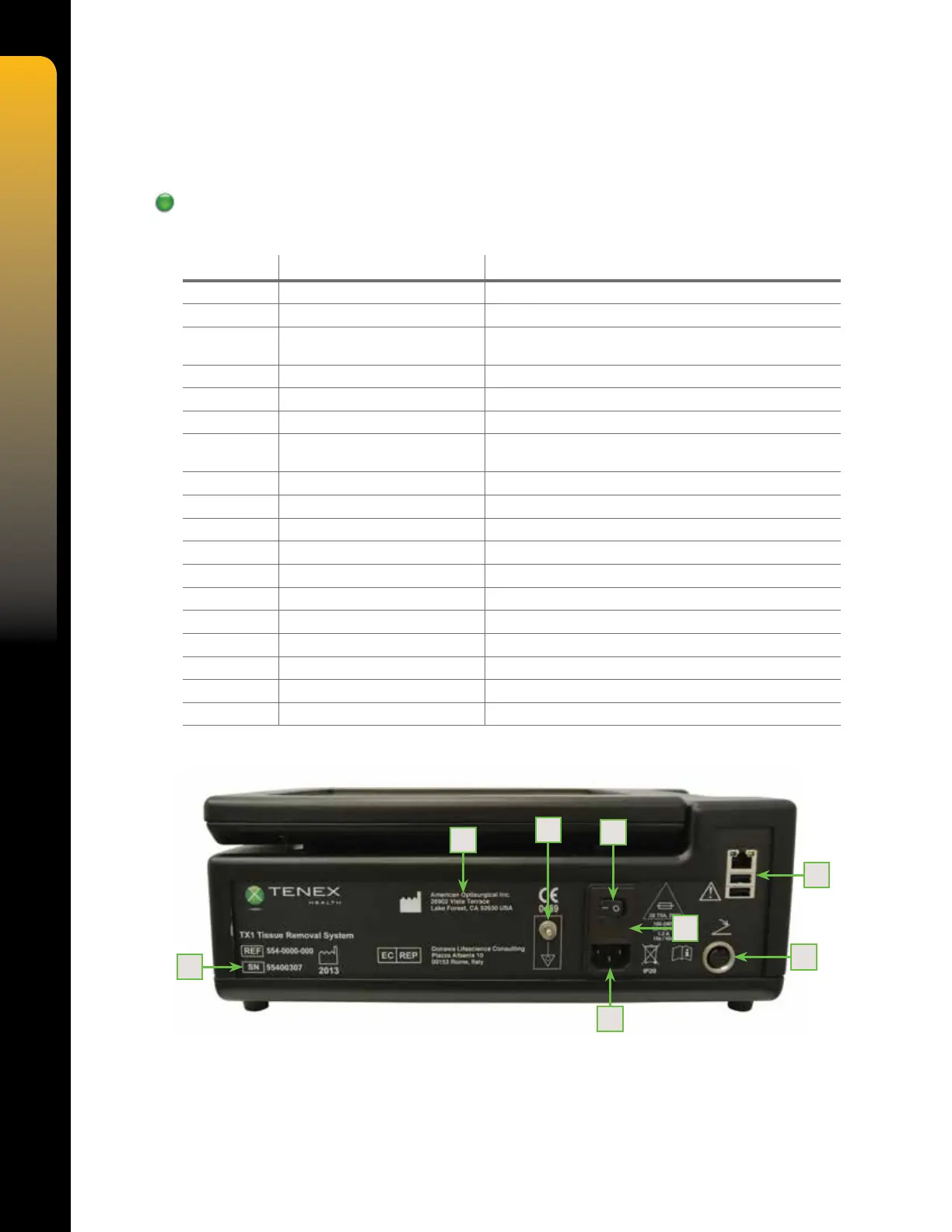

Figure 1 – Rear View
1
3
2
4
5
6
7
8
