e. ENVIRONMENTAL REQUIREMENTS
The TX System Console should be used in a clean environment that is suitable for surgery.
Environmental requirements are as follows:
Operating Environment
Temperature Humidity Altitude
10°C to 35°C 30% to 85% RH ≤2,000 meters (6,561 feet)
Storage/Transport Environment
Temperature Humidity Altitude
+5°C to +60°C 30% to 85% RH ≤4,267 meters (14,000 feet)
f. SYMBOL DESCRIPTIONS
The
table below provides the symbols that are found on the TX Console and their
denitions. These symbols are used to provide quick information or instruction in a limited space.
It is important to become familiar with these symbols and their denitions before setting up and
operating the TX Console.

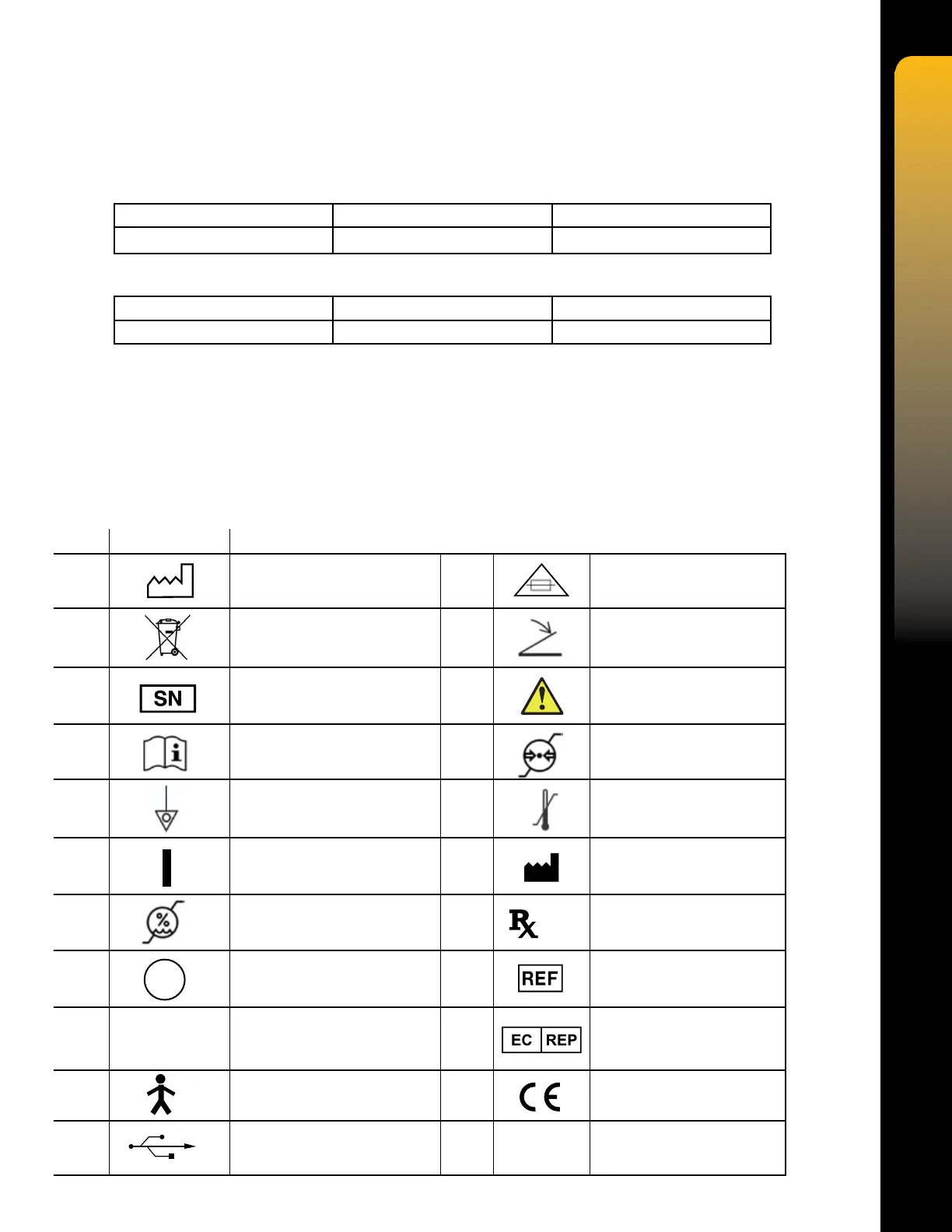

Table 2. Symbols found on the TX Console and Packaging
No. Symbol Denition
1
Date of Manufacture
Waste Electrical and Electronic
Equipment
Degree of protection against access
to hazardous parts and against solid
foreign object, as well as degree of
protection from ingress of water
Serial Number
Type B equipment
Consult accompanying
documents
Equipotential Ground Stud
Foot pedal
ON (power: connection to the
mains)
Humidity Range
OFF (power: disconnection
from the mains)
Attention: Refer to Chapter 1
Warnings and Precautions
Pressure Range
Temperature Range
2
9
3
10
11
4
12
5
13
6
7
8
14
15
16
IP20
USB Connection
Manufacturer
Caution: Federal law restricts
this device to sale by or on
the order of a physician.
17
18
19
20
21
Only
Catalog Number
European Authorized
Representative
CE Mark (European
Conformity)
Fuse Replacement
