4 MACHINE DESCRIPTION / CONTROLS

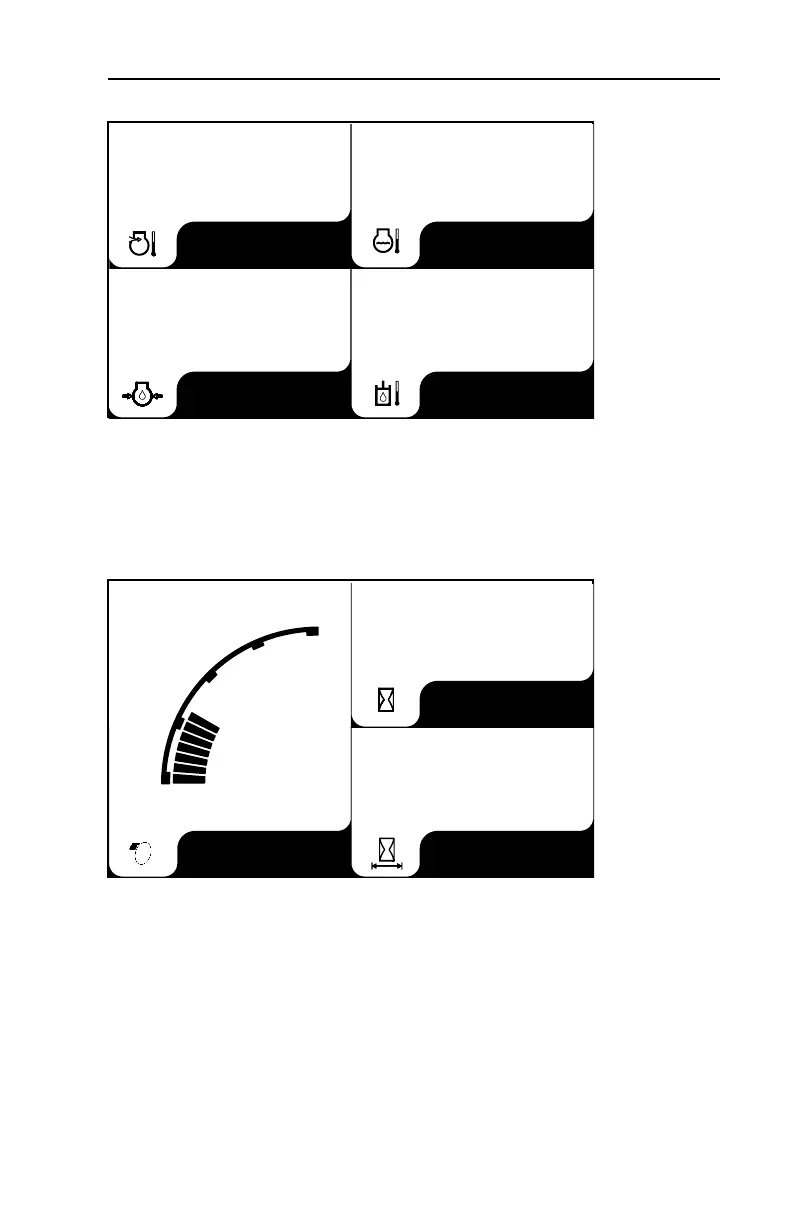

Gauge Screen 2
This screen displays engine air inlet temperature, engine coolant temperature,
engine oil pressure, and hydraulic oil temperature. These readings are critical to
machine function and if abnormal, all can cause the engine to derate in an effort
to protect the engine and hydraulic systems.
Gauge Screen 3
This screen displays speed, engine hours and trip hours. Units used in the display
can be configured (see 4.10-2 Config Menu - Display Units).
To access these secondary gauge screens:
• Press one of the four buttons beneath the screen.
• Press the buttons beneath the arrows to access the various gauge screens as
needed.
To reset Trip Hours:
• Press one of the four buttons beneath the screen.
• Press the button beneath “R” to reset once the selection bar appears.
Hyd. Oil
Coolant
Eng. Oil
Air Inlet
245° F
29
psi
149° F
41° F
Trip Hrs
Eng. Hrs
Speed
224
6.5
MPH
4.7
0
6
12
