Terex RL4000 Service Manual

Section 5 • Schematics
Part No. 116694 RL4000 • TML-4000 5 - 7
June 2013

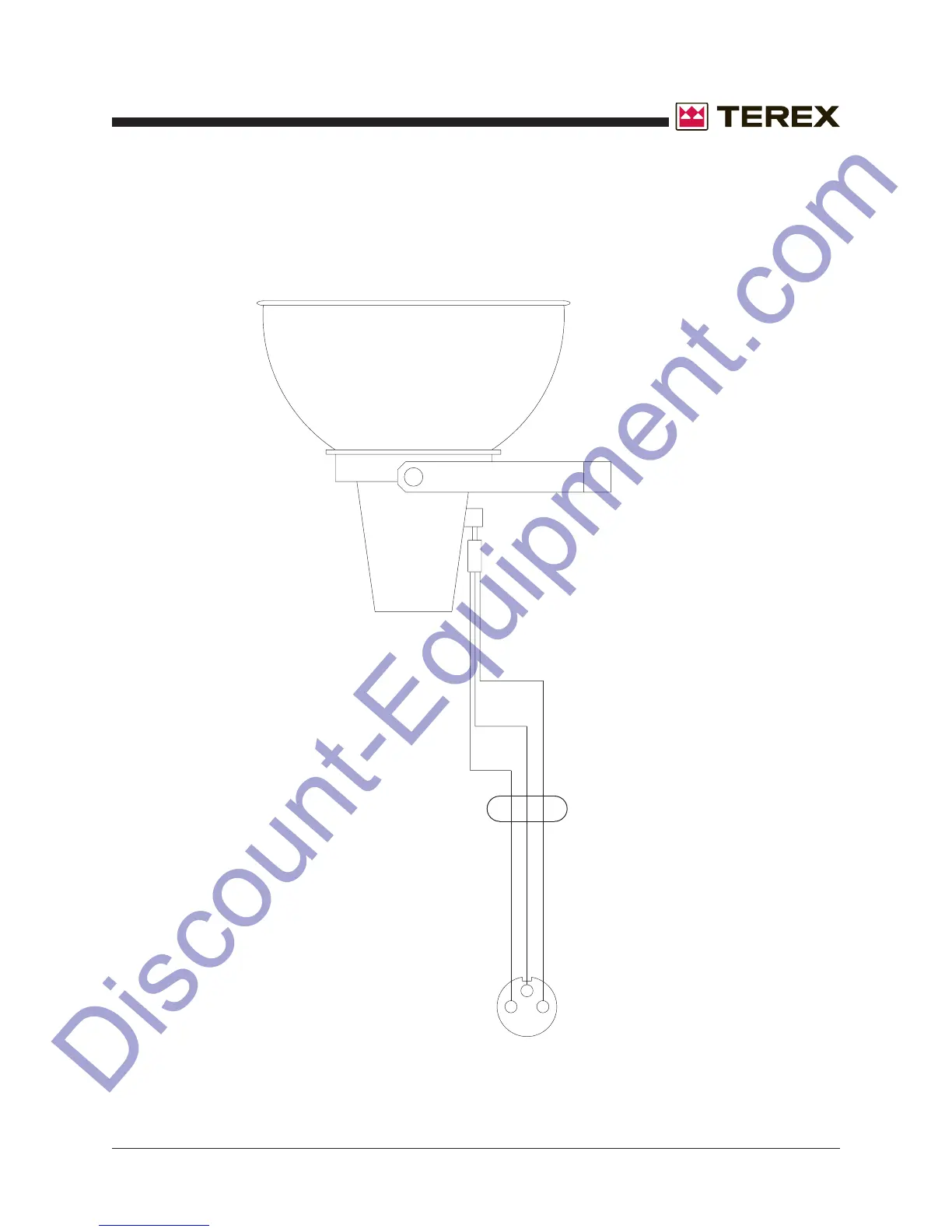

MH Light Fixture
Drawing #2985A
BLACK (BROWN)
GREEN (GRN/YEL)
WHITE (BLUE)
14/3
NOTE:
PIN CONFIGURATION IS THE SAMW
FOR TUNGSTEN HALOGEN FIXTURES
DOMESTIC COLOR
UCODE
WHITE
BLACK
GREEN
EUROPEAN COLOR
UCODE
LIGHT BLUE
BROWN
GRN/YEL
UCIRCUIT
COMMON FROM BALLAST
HOT FROM BALLAST (LIVE)
GROUND (EARTH)
