2.3 ANSI Safety Signs

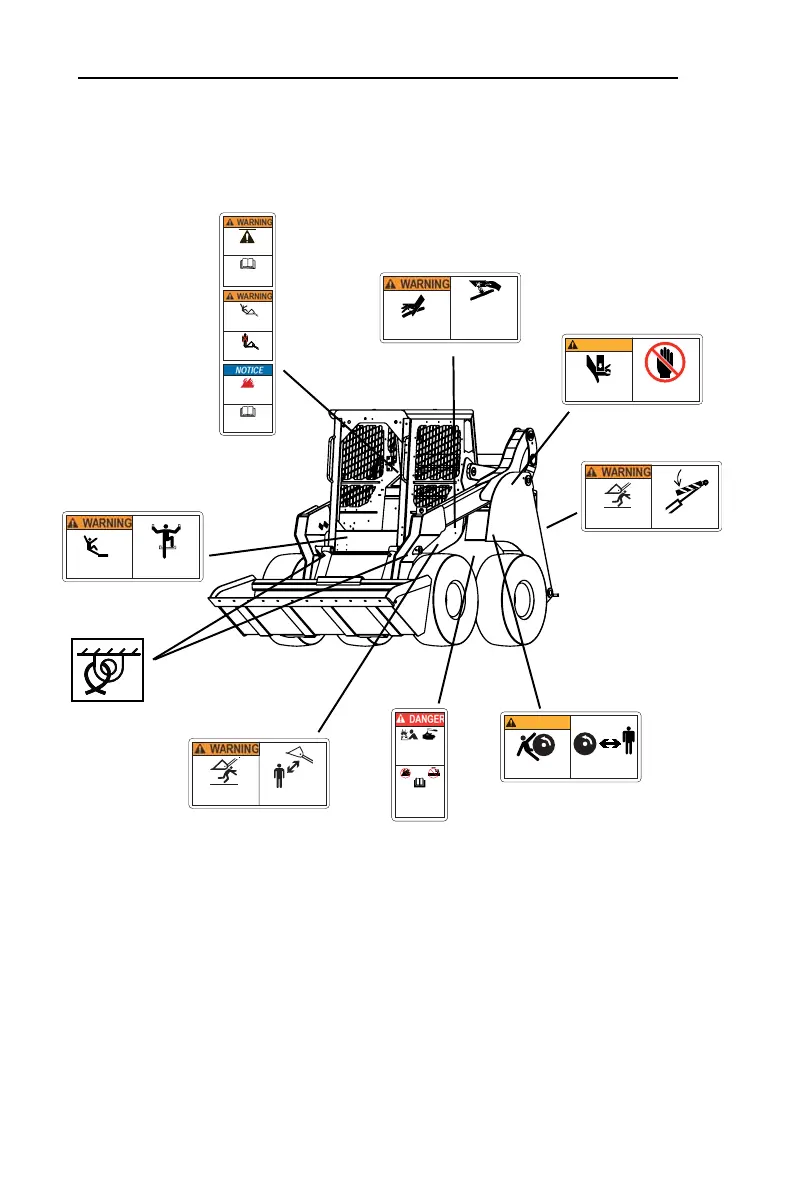

The safety signs are located in/on the machine as indicated. (Descriptions of the
symbols are provided in section 2.2)
Key
1. Fall hazard
2. Read operator’s manual / fall hazard (inside cab enclosure / fire notice)
3. Skin (oil) injection hazard
4. Crush hazard (pinch point)
5. Crush hazard (lift arm brace)
6. Crush hazard (run over)
7. Explosion / burn hazard (read operator’s manual) (on battery strap)
8. Crush hazard (lift arms)
9. Tie down locations, Front (on upper front corners of chassis)
2 SAFETY
12
WARNING
Crush Hazard
Contact with moving machine can
result in death or serious injury.
Stay clear of moving machine.
7005-813
Crush Hazard
Death or serious injury can result
from contact with moving lift arm or
attachment.
Keep clear of lift arms and
attachments.
2030-592
Crush Hazard
Death or serious injury can result
from contact with moving lift arm or
attachment.
Install lift arm brace prior to servicing.
2030-594
Fall Hazard
Serious injury or death can result
from falling.
Use the provided access system when
entering or exiting the machine.
2030-597
Injection Hazard
Escaping fluid under pressure can
penetrate skin, causing serious injury.
• Relieve internal pressure before
disconnecting any line or fitting.
• Keep away from leaks or pinholes.
• Use cardboard to check for leaks.
Fluid injected into skin must be surgi-
cally removed within a few hours by a
doctor familiar with this type of injury
or gangrene will result.
2030-602
Improper operation or maintenance
can result in serious injury or death.
Read and understand the opera-
tor’s manual and all safety signs
prior to operating or maintaining
the machine.
Fire Hazard
Flammable debris can collect near
hot components and lead to a fire.
Read Operator’s Manual
Keep the engine, exhaust and
chassis areas free of debris.
Do not use the bucket/attachment
as a work platform.
Fall Hazard
Falling can result in serious injury
or death.
1
3
2
5
6
9
Explosion/Burn Hazard
Will cause death, burns or
blindness due to ignition of
explosive gasses or contact
with corrosive acid.
• Keep all flames/sparks
away!
• No Smoking!
• Read and understand
all manuals prior to
operation.
2030-603
7
8
WARNING
Crush Hazard
Contact with moving parts can result
in serious injury.
Keep hands clear of moving parts
during equipment operation.
7005-812
4
