9 WALL CONNECTOR INSTALLATION GUIDE
Step Four - Mount on Wall

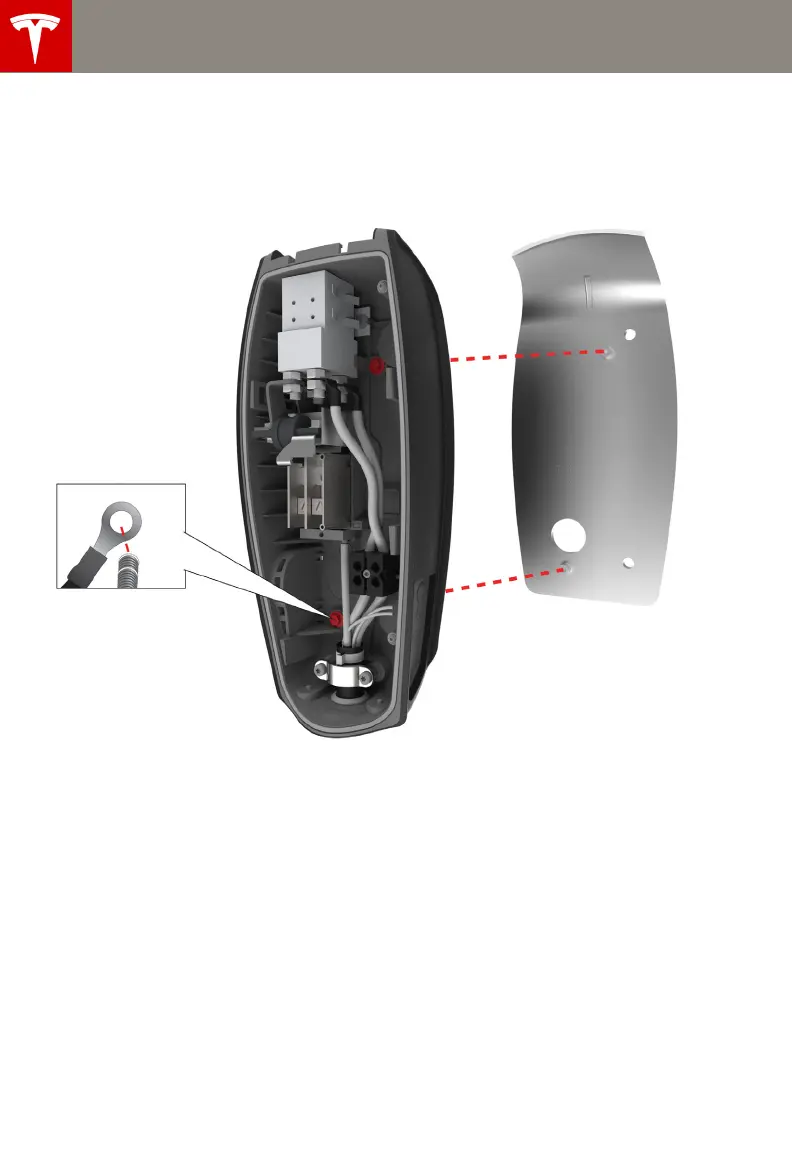

1 Position the connector over the bolts on
the mounting bracket as shown below.
2 Attach the Earth wire, as shown below.
3 Use the supplied flange screws to fasten
the connector onto the bracket. Use a
ratchet wrench and 8 mm socket to
tighten until snugly fitted.
