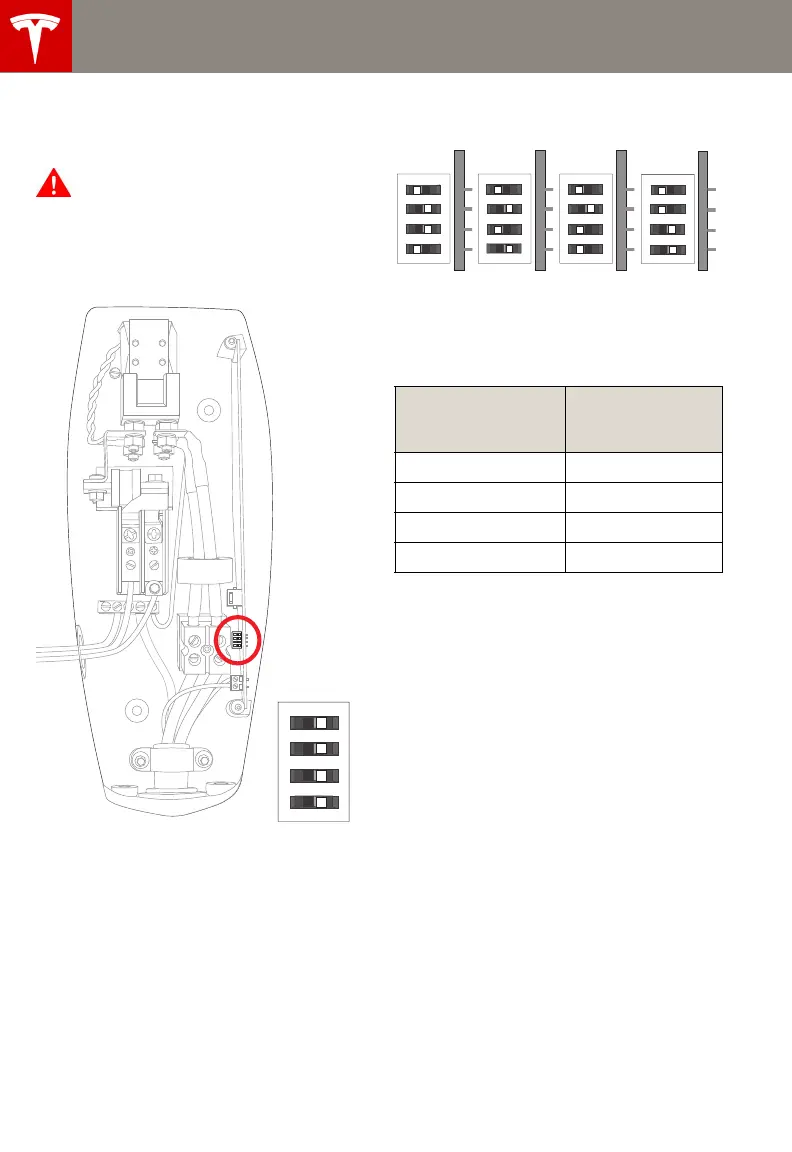

Step Six - Set the Operating Current
Adjust the DIP switches to set the operating
current. Use a pointed non-conductive object
such as a plastic pen.
WARNING: Power MUST remain off
before setting or changing DIP switches.
If you set DIP switches with the power on, not
only is it dangerous because of the risk of
electric shock, but the changes are not
recognised.
SETTINGS
CIRCUIT BREAKER
Adjust the operating current based on the
type of circuit breaker being used:
To determine the type of electrical breaker
you need, examine the distribution panel/
circuit breaker box to identify the amperage
available at the installation site.
DIP
switches
Test Mode
Circuit Breaker
Rating
(Amps)
Maximum Current
Supplied to Vehicle
(Amps)
50 40
40 32
20 16
16 10
1
2
3
4
1
2
3
4
1
2
3
4
1
2
3
4
16A
Breaker
20A
Breaker
40A
Breaker
50A
Breaker
