Teufel concept c - Speaker and Power Connections; Connecting Satellite Speakers; Connecting to Mains Power

10 • Concept C
Connecting satellite speakers
CAUTION
– Lay the speaker cables so they do not
pose a trip hazard.
NOTICE
Make sure the polarity is correct!
– Connect the like-coloured terminals,
otherwise the sound quality will suffer.
– The strands of the speaker cables are
marked with different colours or shapes
.

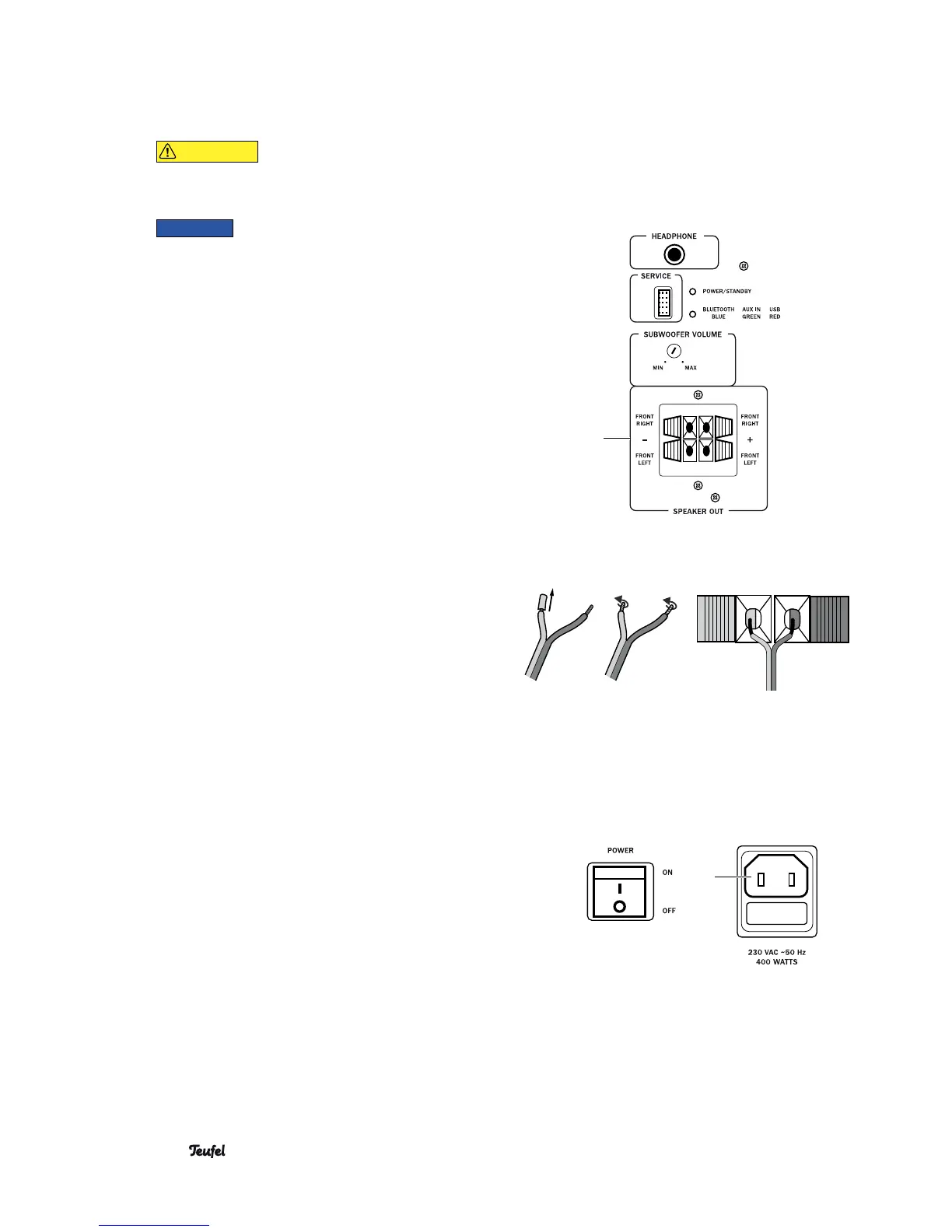

1. On the back of the Concept C are the analog
outputs SPEAKER OUT (13) for the satellite
speakers.
Run the speaker cables from the subwoofer to
each satellite speaker.
Helpful tip: Label the cables on the subwoofer end
– this will make the setup and tear-down of the
system easier.
2. Split the speaker cables down to approx. 30 mm
on both ends and strip approx. 10 mm of insulation
off of each cord.
3. Twist the stripped single wire ends together so that
no wire protrudes. Tin coating is not necessary.
4. Push down the connector terminal levers and put
the stripped cable ends into the corresponding
holes. When the levers are released, the cable
ends will be locked.
Connect all cables to the subwoofer in this way.
Ensure that no part of the insulation is clamped in
place.
5. Connect the other ends of the speaker cables to
the satellite speakers. The instruction manual of
the speakers contain instructions on this.
Connecting to the mains
• Insert the mains plug of the supplied power cord
into the socket (15).
• Plug the power cord into an easily accessible
mains socket.
• Plug the power cords of your components back into
the mains socket.
13
15
