Teufel concept c - Connections and Control Elements Details; Bluetooth Connectivity; Audio Input;Output Ports; Power and Status Indicators

7 • Concept C
CC 2013 SW
4
5
6
7
10
12
13
15 1614
8
9
11

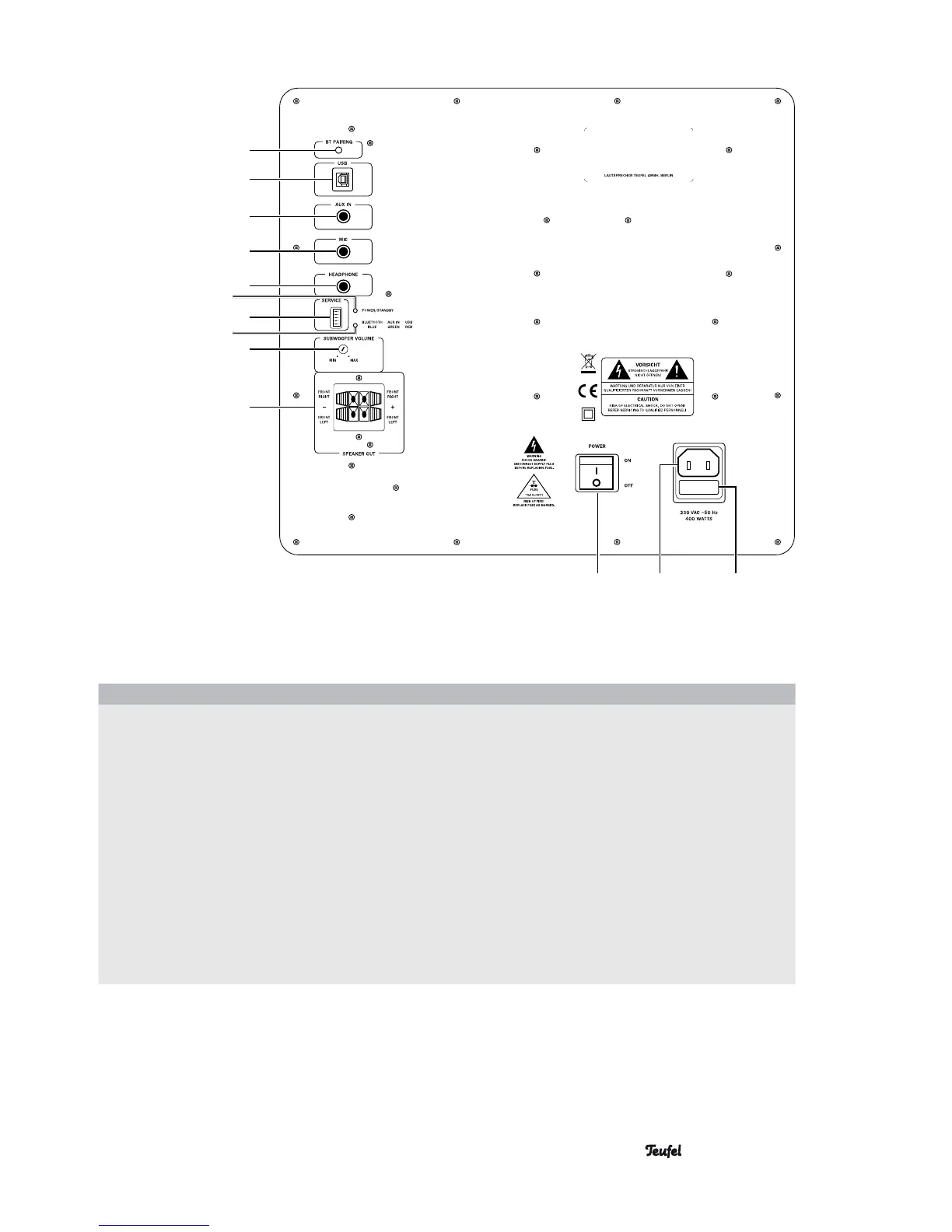

Item Name Description
4 BT PAIRING Establishing Bluetooth connection
5USB USB-connection port
6AUX IN Input jack for analog signal (e.g., MP3-Player)
7MIC Input jack for a microphone
8 HEADPHONE Output for headphones
9 POWER / STANDBY LED 1 (red=standby, green=on)
10
SERVICE Service jack (only for the service technician)
11 BLUETOOTH / AUX IN / USB LED 2 (blue=BLUETOOTH, green=AUX IN, red=USB)
12 SUBWOOFER VOLUME Volume control
13 SPEAKER OUT Analog audio output for satellite speakers
14 POWER ON / OFF Power switch
15 AC power socket
16 Fuse
