Table 3-5. Power LEDs
Sl.No Power Supply LED REF
Before SW1 TURN ON
1 VMAIN LD6
2 VCC3V3_TA LD24
After SW1 TURN ON
3 VCC_5V0 LD15
4 VCC3V3_PREREG LD4
5 VCC_3V3_SYS LD9
6 VDD_2V5 LD1
7 VDD_1V1 LD10
8 VDDA1V8 LD8
9 VDD_CORE LD2
10 VCC_CORE LD7
11 VDD_2V8 LD25
12 VCC1V2_DDR LD3

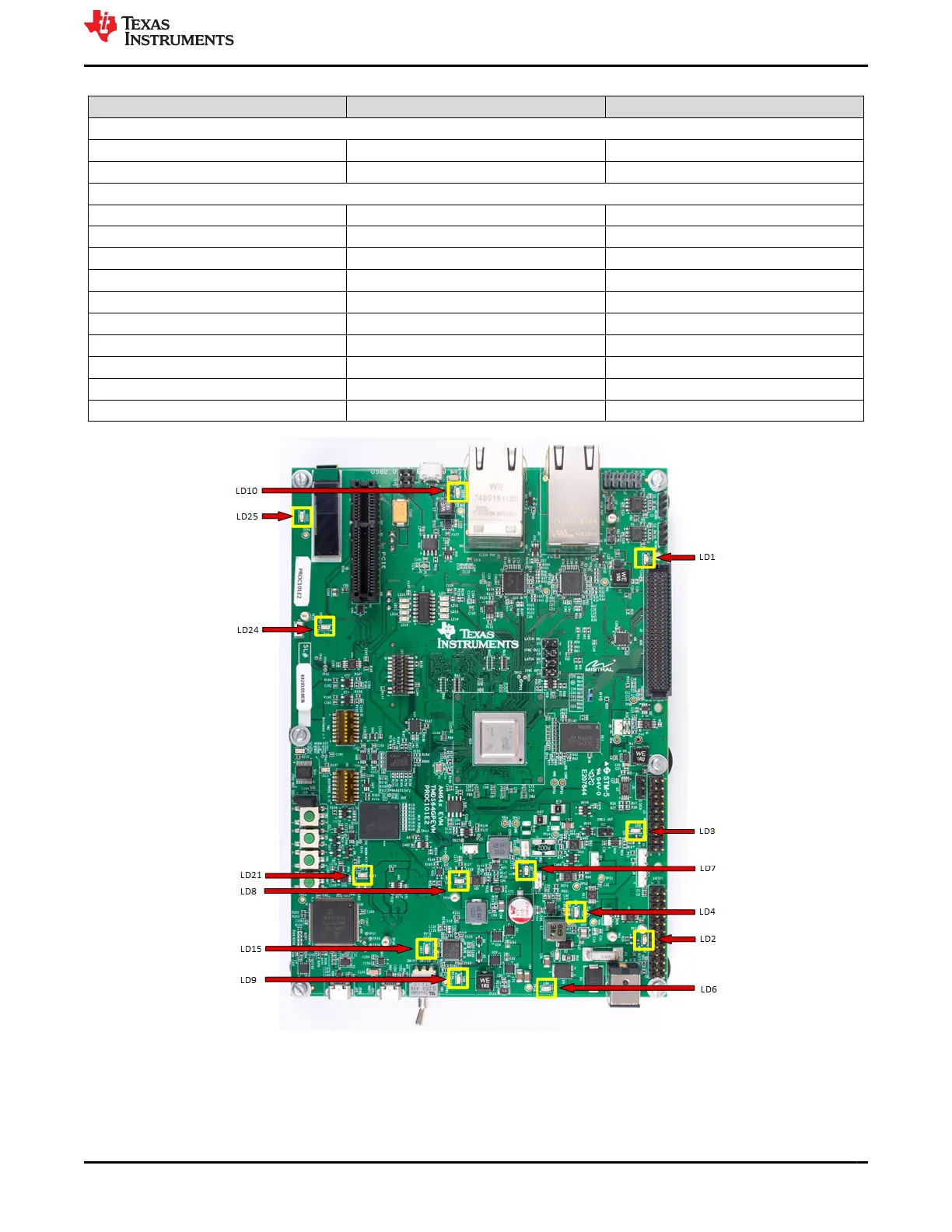

Figure 3-6. Power Good LEDs
