3.2 Functional Block Diagram

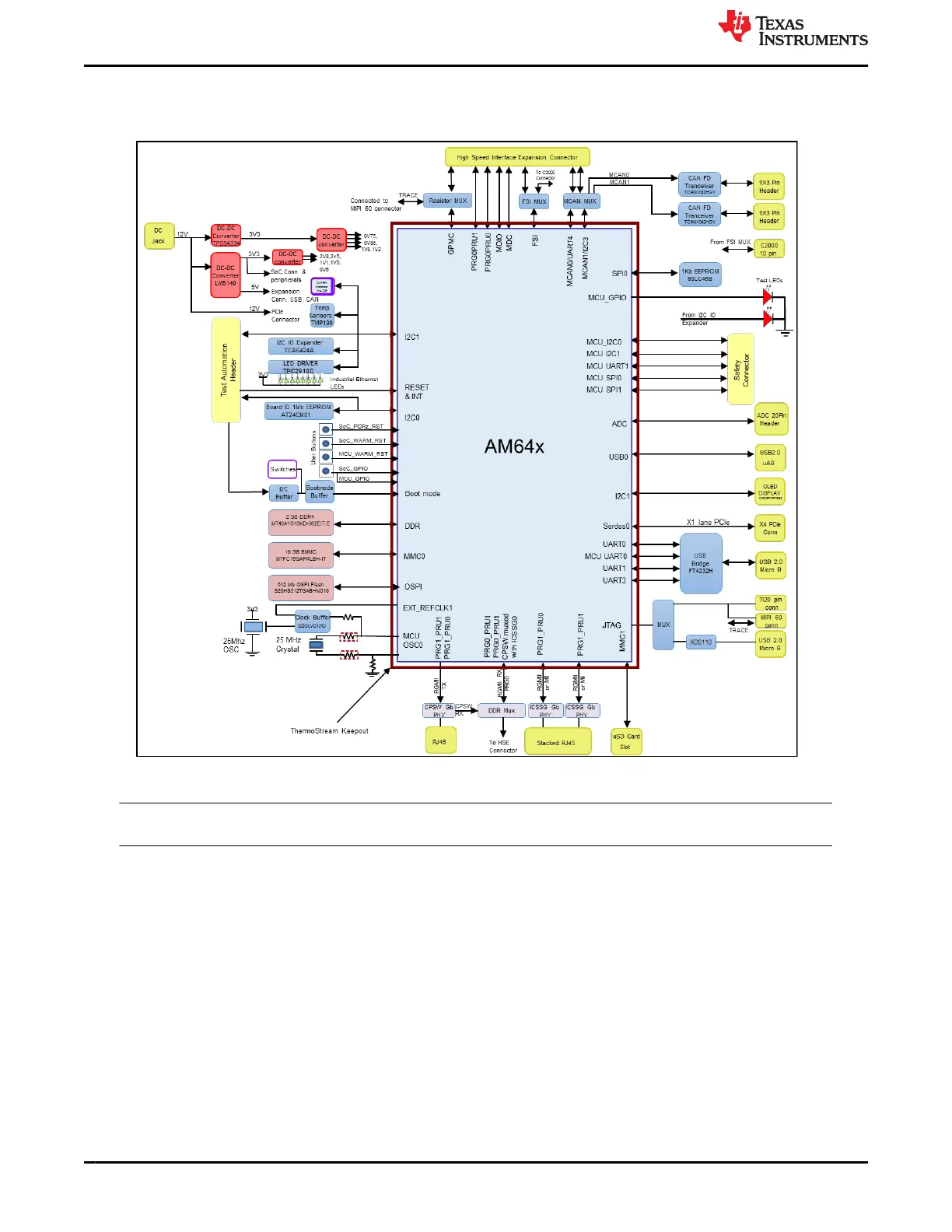

Figure 3-3 shows the functional block diagram of the AM64x/AM243x GP EVM.
Figure 3-3. General Processor Board Functional Block Diagram
Note
Diagram is compatible with both the AM6442 MPU and the AM2434 MCU version of the system.
System Description
www.ti.com
8 AM64x/AM243x GP EVM User's Guide SPRUIX0C – FEBRUARY 2021 – REVISED JUNE 2021
Submit Document Feedback
Copyright © 2021 Texas Instruments Incorporated
