LightCrafter™ 4500 Flash Programming Guide
Click the Detect Chain button in the upper left-hand corner of the tool. The Detect Chain button is
indicated with a red box in Figure 10.

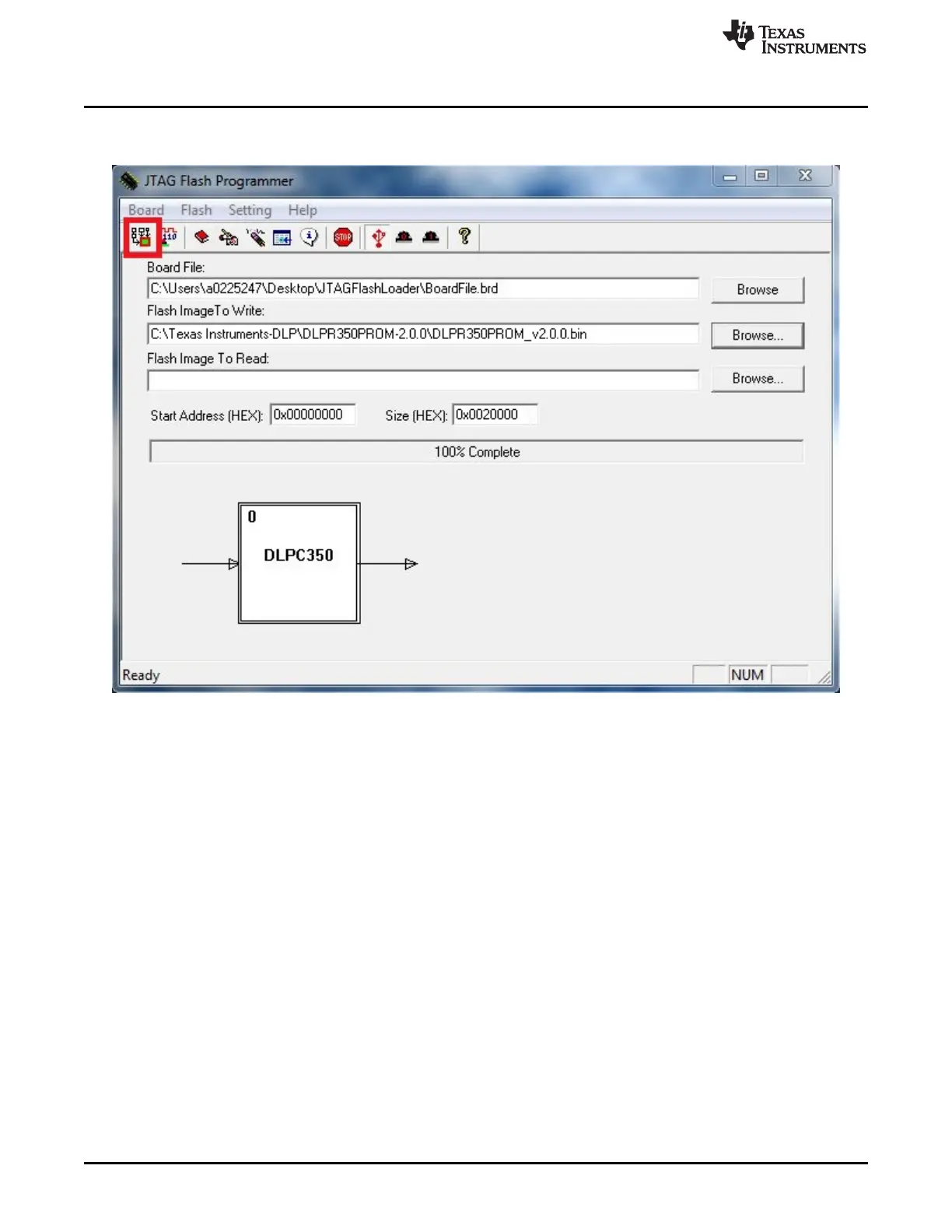

Figure 10. JTAG Chain Detection in Flash Programmer Tool
