Texas Instruments DLP LightCrafter 4500 Programming Guide

Flash Programming Procedure www.ti.com
4
DLPU017B–March 2014–Revised February 2018
Submit Documentation Feedback
Copyright © 2014–2018, Texas Instruments Incorporated
DLP
®
LightCrafter™ 4500 Flash Programming Guide
4 Flash Programming Procedure
Populate J30 with a 2-mm jumper on the DLP LightCrafter 4500, as shown in Figure 2 and Figure 3.

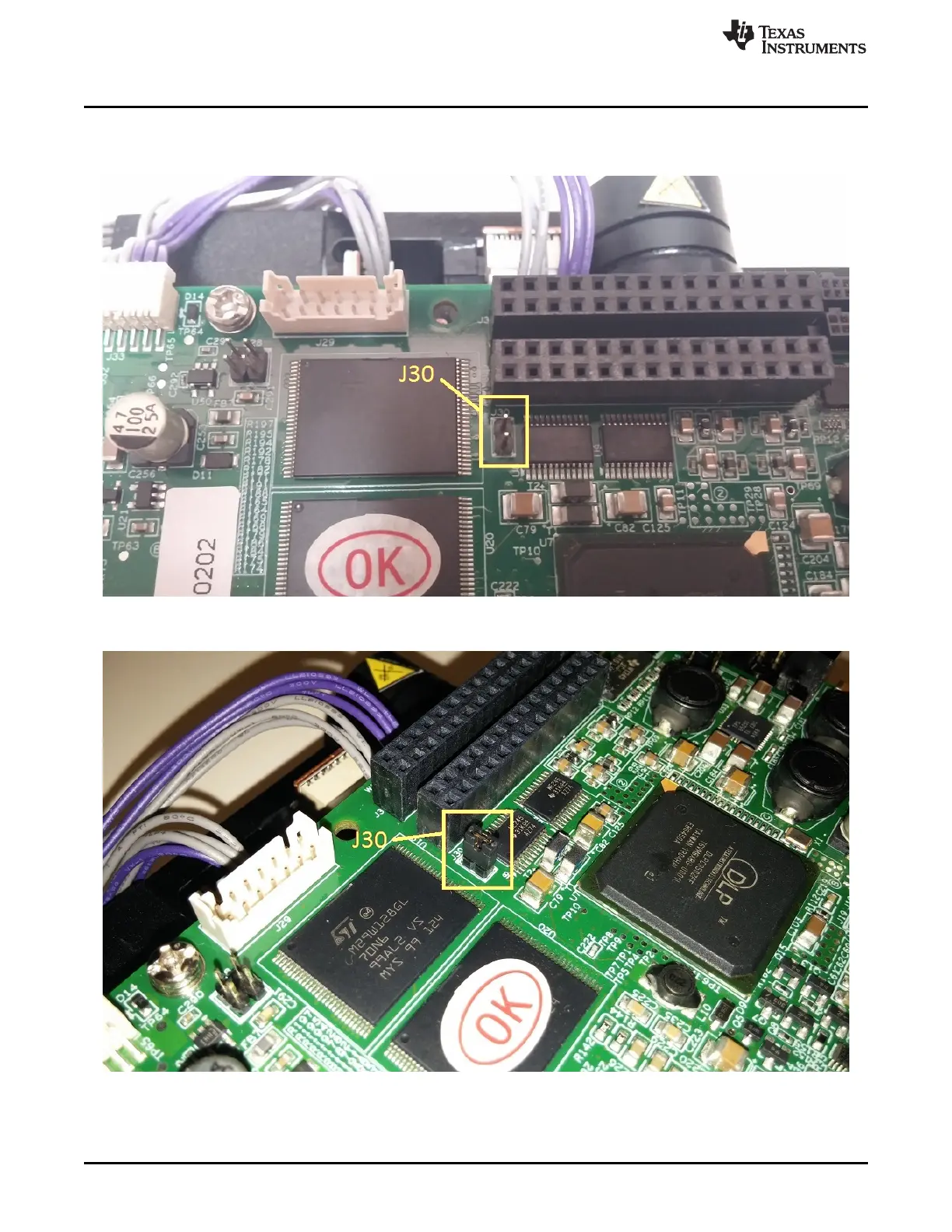

Figure 2. J30 Location on the DLP LightCrafter 4500
Figure 3. J30 Populated on the DLP LightCrafter 4500
