Texas Instruments DLP LightCrafter 4500 Programming Guide

www.ti.com Flash Programming Procedure
5
DLPU017B–March 2014–Revised February 2018
Submit Documentation Feedback
Copyright © 2014–2018, Texas Instruments Incorporated
DLP
®
LightCrafter™ 4500 Flash Programming Guide

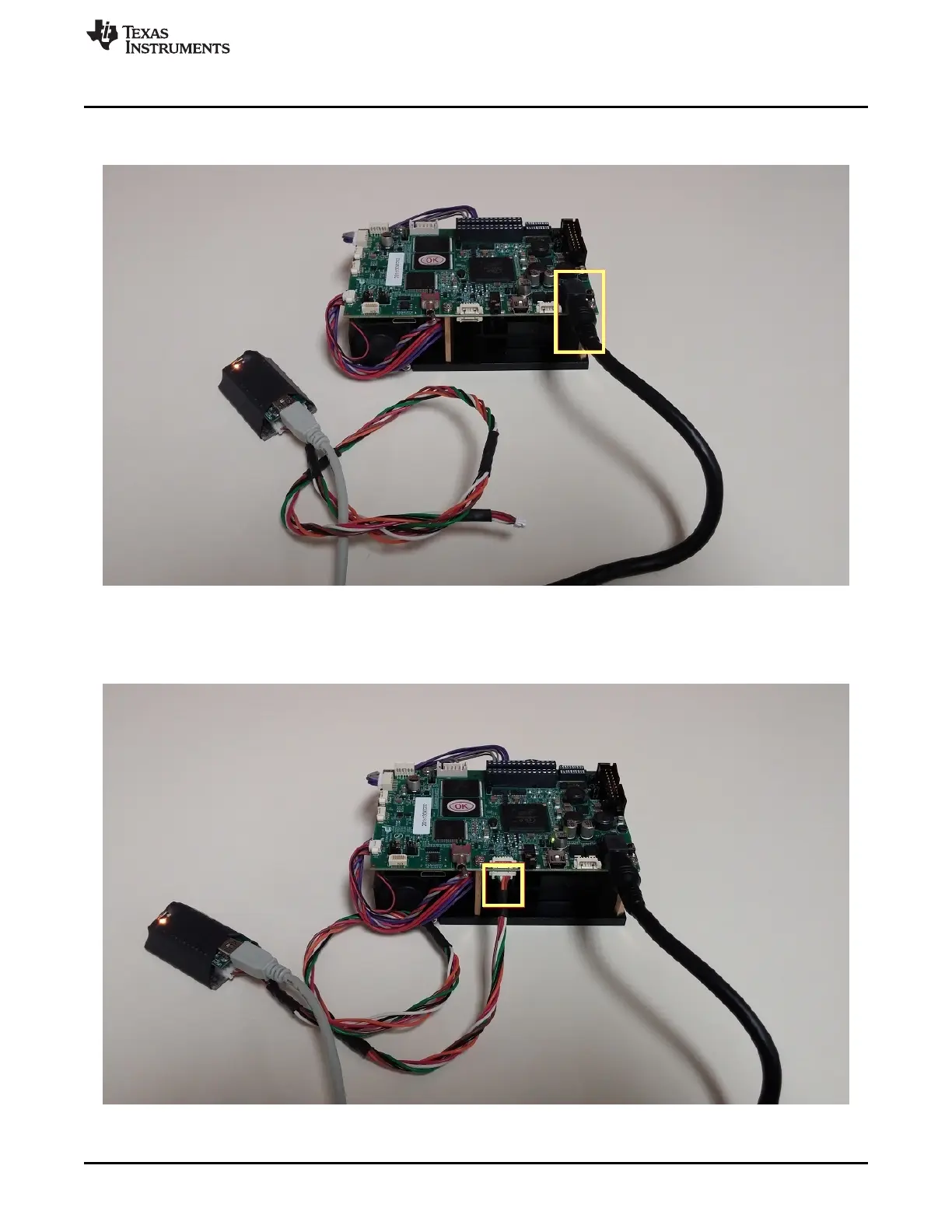

Connect the appropriate power supply to the DLP LightCrafter 4500, as shown in Figure 4. The fan on the
rear of the device turns on indicating the board is powered.
Figure 4. Power Supply Connected to the DLP LightCrafter 4500
Connect the JTAG cable to J25, located on the bottom side of the DLP LightCrafter 4500 board. Connect
the UM232H to the computer with an appropriate USB cable, as shown in Figure 5.
Figure 5. JTAG Cable Connected to the DLP LightCrafter 4500
