After the flash programmer tool displays the operation is 100% complete, disconnect the JTAG cable,
remove the jumper from J30, and disconnect the power supply from the DLP LightCrafter 4500, as shown
in Figure 15.

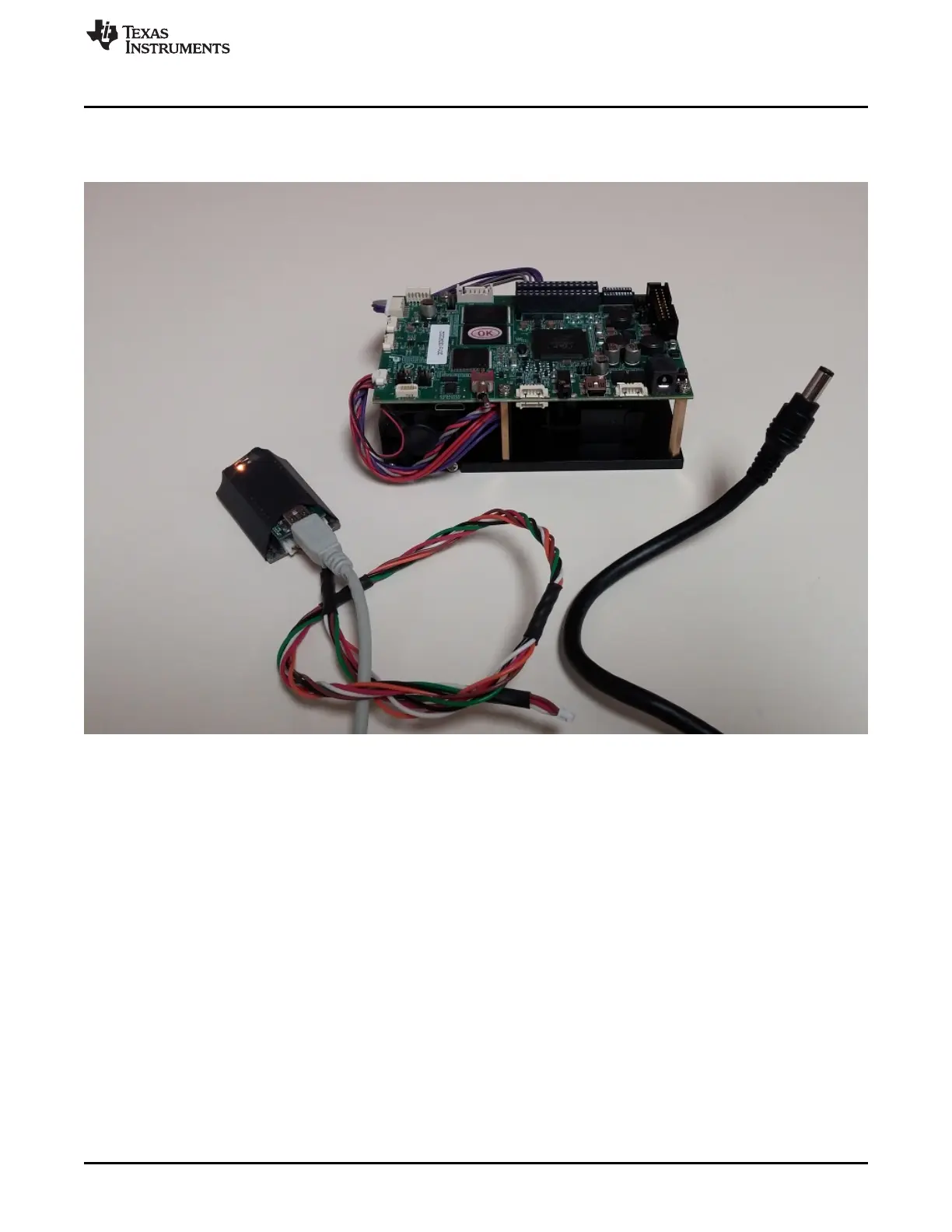

Figure 15. Power and JTAG Cable Removed from the DLP LightCrafter 4500
Connect the LightCrafter 4500 to a PC loaded with the LightCrafter 4500 GUI via USB. Reconnect the
power cable to the LightCrafter 4500.
