1.1
F28377S_B
PWM_DAC
Red
Blue
SN74LVC2G07
330
330
+3V3
+3V3
+3V3
GND
1K
1K
1K
1K
0.1u
0.1u
0.1u
0.1u
GND
GND
GND
GND
0.1u
GND
TMS320F28377S
D9
D10
U9
1A
1
2A
3
2Y
4
1Y
6
VCC
5
GND
2
R38
R39
R36
R37
R40
R41
C33
C34
C35
C36
C24
GPIO2/EPWM2A/OUTPUTXBAR1/SDAB
91
GPIO3/EPWM2B/OUTPUTXBAR2/MCLKRB/SCLB
92
GPIO4/EPWM3A/OUTPUTXBAR3/CANTXA
93
GPIO10/EPWM6A/CANRXB/ADCSOCBO/EQEP1A/SCITXDB/UPP-WAIT
100
GPIO11/EPWM6B/SCIRXDB/OUTPUTXBAR7/EQEP1B/UPP-START
1
GPIO12/EPWM7A/CANTX/MDXB/EQEP1S/SCITXDC/UPP-ENA
3
GPIO13/EPWM7B/CANRXB/MDRB/EQEP1I/SCIRXDC/UPP-D7
4
GPIO14/EPWM8A/SCITXDB/MCLKXB/OUTPUTXBAR3/UPP-D6
5
GPIO15/EPWM8B/SCIRXDB/MFSXB/OUTPUTXBAR4/UPP-D5
6
GPIO16/SPISIMOA/CANTXB/OUTPUTXBAR7/EPWM9A/SD_D1/UPP-D4
7
GPIO17/SPISOMIA/CANRXB/OUTPUTXBAR8/EPWM9B/SD1_C1/UPP-D3
8
GPIO18/SPICLKA/SCITXDB/CANRXA/EPWM10A/SD1_D2/UPP-D2
9
GPIO19/SPISTEA/SCIRXDB/CANTXA/EPWM10B/SD1_C2/UPP-D1
11
GPIO20/EQEP1A/MDXA/CANTXB/EPWM11A/SD1_D3/UPP-D0
12
GPIO21/EQEP1B/MDRA/CANRXB/EPWM11B/SD1_C3/UPP-CLK
13
GPIO41/EM1A3/SCLB
51
GPIO42/SDAA/SCITXDA/USB0DM
73
GPIO43/SCLA/SCIRXDA/USB0DP
74
GPIO58/MCLKRA/EM1D26/EM2D10/OUTPUTXBAR1/SPICLKB/SD2_D2/SPISIMOA
52
GPIO59/MFSRA/EM1D25/EM2D9/OUTPUTXBAR2/SPISTEB/SD2_C2/SPISOMIA
53
GPIO60/MCLKRB/EM1D24/EM2D8/OUTPUTXBAR3/SPISIMOB/SD2_D3/SPICLKA
54
GPIO61/MFSRB/EM1D23/DM2D7/OUTPUTXBAR4/SPISOMIB/SD2_C3/SPISTEA
56
GPIO62/SCIRXDB/EM1D22/EM2D6/EQEP3A/CANRXA/SD2_D4
57
GPIO63/SCITXDC/EM1D21/EM2D5/EQEP3B/CANTXA/SD2_C4/SPISIMOB
58
GPIO64/EM1D20/EM2D4/EQEP3S/SCIRXDA/SPISOMIB
59
GPIO65/EM1D19/EM2D3/EQEP3I/SCITXDA/SPICLKB
60
GPIO66/EM1D18/EM2D2/SDAB/SPISTEB
61
GPIO69/EM1D15/SCLKB/SPISIMOC
75
GPIO70/EM1D14/CANRXA/SCITXDB/SPISOMIC
76
GPIO71/EM1D13/CANTXA/SCIRXDB/SPICLKC
77
GPIO72/EM1D12/CANTXB/SCITXDC/SPISTEC
80
GPIO73/EM1D11/XCLKOUT/CANRXB/SCIRXDC
81
GPIO78/EM1D6/EQEP2A
82
GPIO84/SCITXDA/MDXB/MDXA
85
GPIO85/EM1D0/SCIRXDA/MDRB/MDRA
86
GPIO86/EM1A13/EM1CAS/SCITXDB/MCLKXB/MCLKXA
87
GPIO87/EM1A14/EM1RAS/SCIRXDB/MFSXB/MFSXA
88
GPIO89/EM1A16/EM1DQM1/SCITXDC
96
GPIO90/EM1A17/EM1DQM2/SCIRXDC
97
GPIO91/EM1A18/EM1DQM3/SDAA
98
GPIO92/EM1A19/EM1BA1/SCLA
99
GPIO99/EM2A1/EQEP1I
14
U1G$3
GPIO17
GPIO16
GPIO2
GPIO3
GPIO4
GPIO12
GPIO12
GPIO13
GPIO13
GPIO14
GPIO10
GPIO11
GPIO41
GPIO42
GPIO43
GPIO20
GPIO20
GPIO21
GPIO21
GPIO58
GPIO15
DAC1
DAC2
DAC3
DAC4
GPIO18
GPIO18
GPIO19
GPIO19
GPIO59
GPIO60
GPIO61
GPIO62
GPIO63
GPIO64
GPIO65
GPIO66
GPIO69
GPIO70
GPIO71
GPIO72
GPIO73
GPIO78
GPIO84
GPIO85
GPIO86
GPIO87
GPIO89
GPIO90
GPIO91
GPIO92
GPIO99
A
B
C
D
E
A
B
C
D
E
1
2
3
4
5
6
Date:
6/22/2015 9:21:57 AM
Sheet:
5/6
REV:
TITLE:
Document Number:

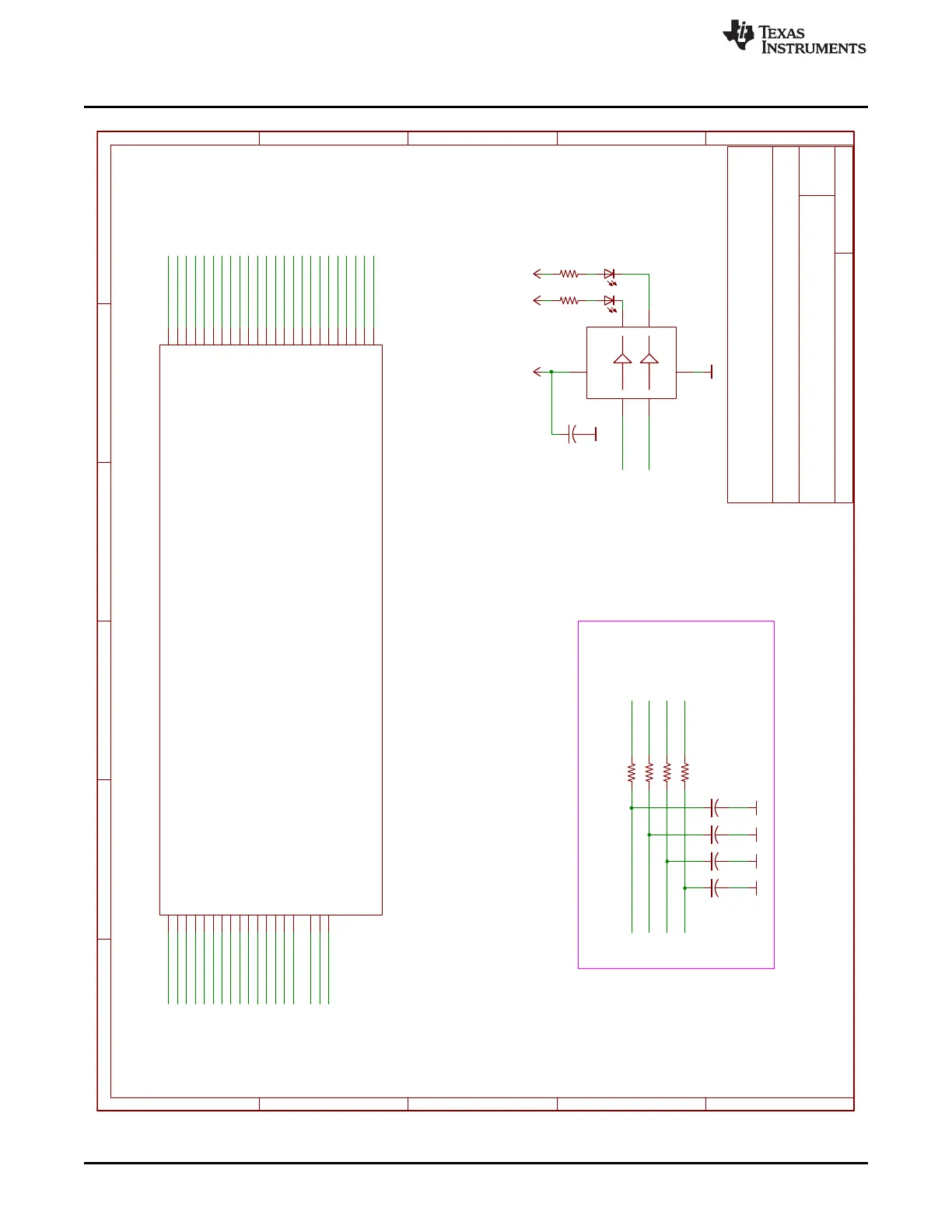

LAUNCHXL-F28377S
