Texas Instruments PCM186xEVM - Layouts; Top Copper; Top Silk Screen

www.ti.com Schematics, Bill of Materials and Layouts
6.3 Layouts

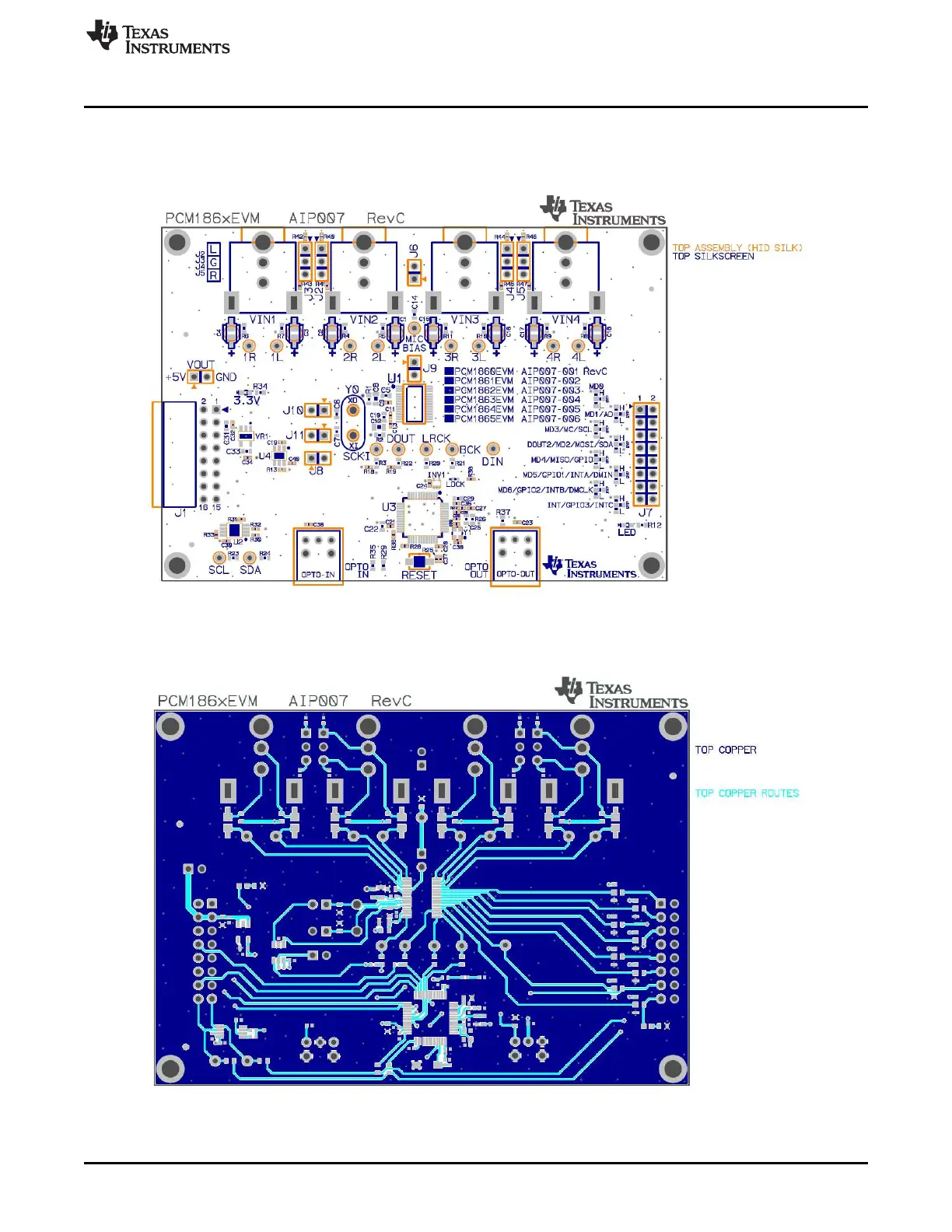

Figure 17 through Figure 19 display the board layouts for the PCM186xEVM.
Figure 17. Top Silk Screen
Figure 18. Top copper
19
SLAU615–December 2014 PCM186xEVM
