3.2 PCB Layouts
Figure 3-1 through Figure 3-6 illustrate the EVM PCB layouts.

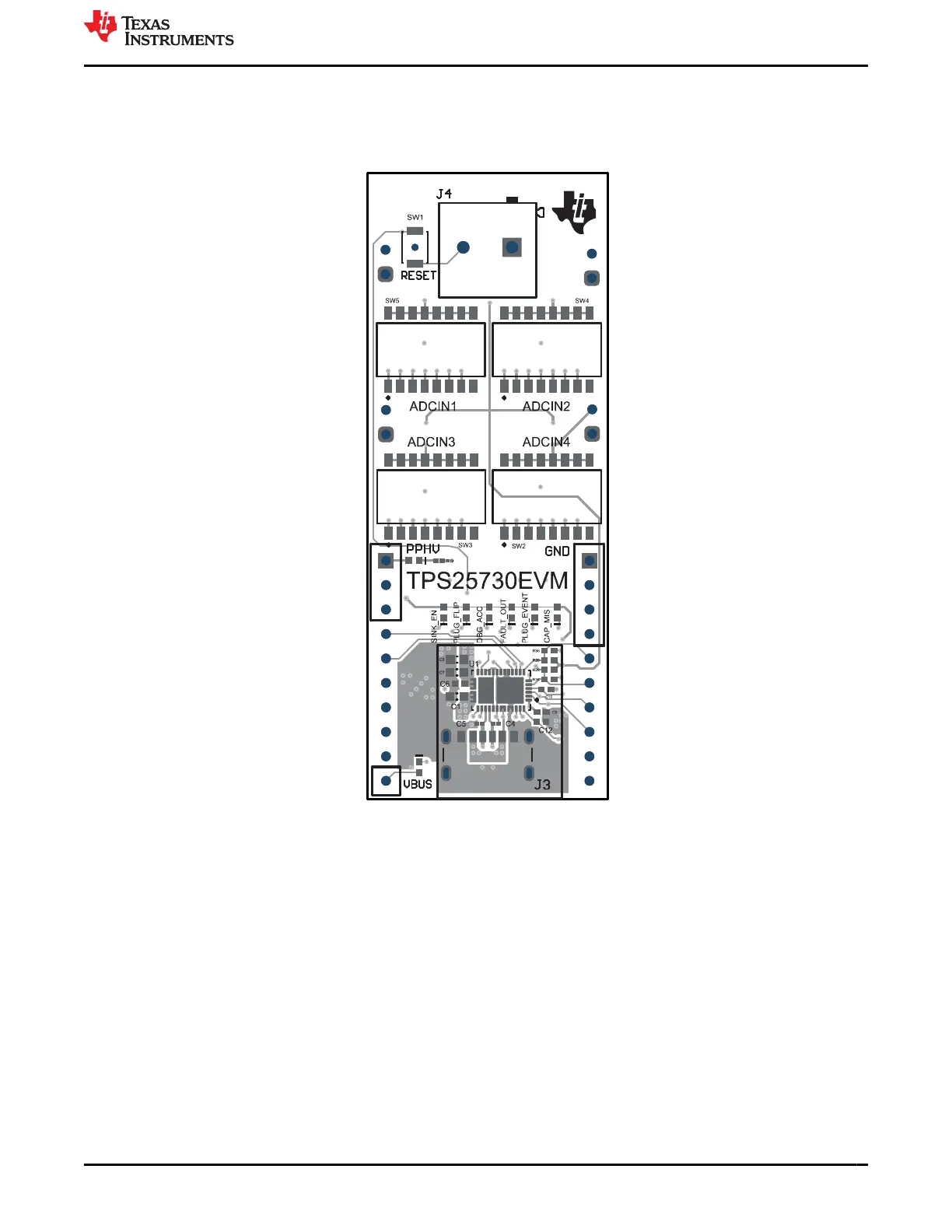

Figure 3-1. TPS25730EVM Top Composite View
