Texas Instruments TPS25730 - 1.4 Device Information

TPS25730D
CC
V
BUS
GND
CC1/2
2
PPHV 5A
I2C Target
Configuration
pins
LDO
3.3V
Set GPIO
Functions
Terminal
Block
J1
(5V to 20V)
Header
J3
TVS2200
ADCINx
Switches
Header
J3 & J4

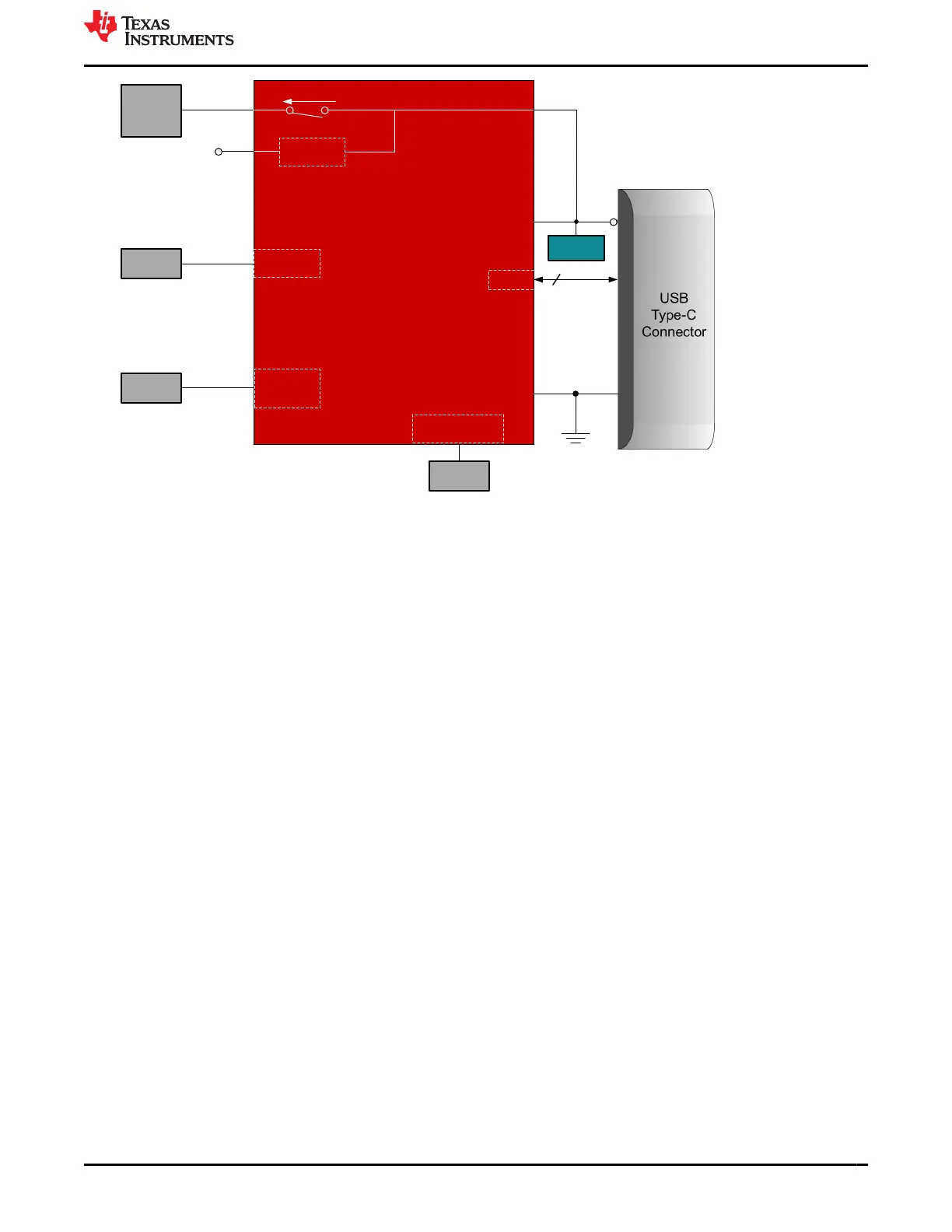

Figure 1-1. TPS25730EVM Block Diagram
1.4 Device Information
The TPS25730EVM allows for the configuration of the TPS25730 without the need to program or use software.
As the TPS25730 is a USB-PD controller for use in sink-only applications, the following sink capabilities of the
TPS25730EVM are configurable:
• Minimum voltage
• Maximum voltage
• Operating current
• Maximum current
The TPS25730EVM configures the aforementioned capabilities using ADCIN1, ADCIN2, ADCIN3, and ADCIN4
input pins of the TPS25730. The TPS25730EVM utilizes four sets of switches; each set of switches
corresponding one of the four ADCIN pins.
