I2C_ADDR
5 µA
R_I2C
DEBUG_CTL1
DEBUG_CTL2
Debug Data
To Address
Decoder
To Address
Decoder
Tristate
ADC

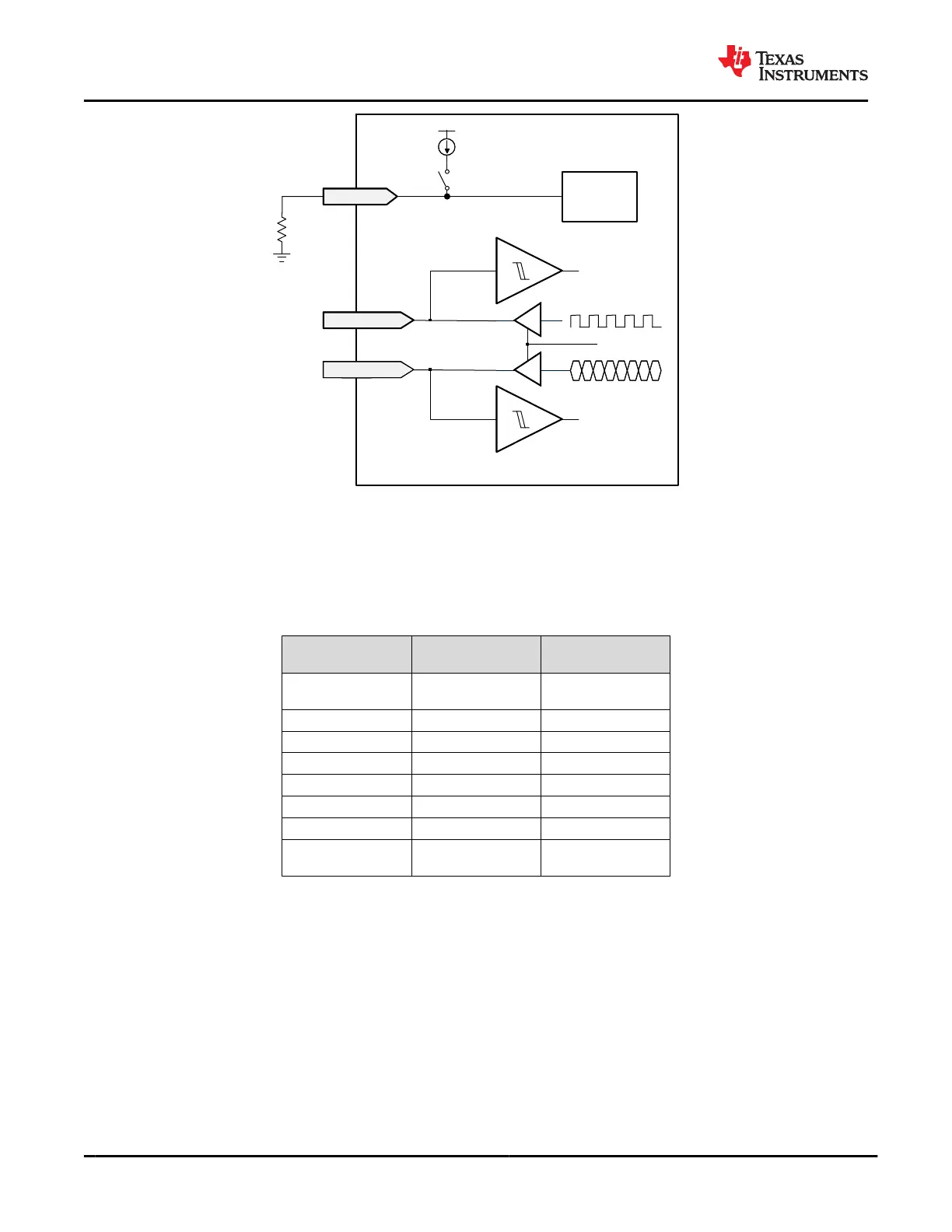

Figure 9-67. I
2
C Address Decode
Table 9-10 lists the external resistance needed to set bits [3:1] of the I
2
C Unique Address. For the Primary
TPS65982 (UART Master), the I2C_ADDR pin is grounded and this TPS65982 is connected to the SPI Flash. In
a two Type-C port system sharing one SPI Flash, I2C_ADDR is left as an open-circuit (UART Slave 1) and this
TPS65982 is referred to as the Secondary.
Table 9-10. I
2
C Address Resistance
TPS65982
DEVICE
EXTERNAL
RESISTANCE (1%)
I
2
C UNIQUE
ADDRESS [3:1]
SPI Owner, UART
Master 0 (Primary)
0 Ω 0x00
UART Slave 7 38.3 kΩ 0x01
UART Slave 6 84.5 kΩ 0x02
UART Slave 5 140 kΩ 0x03
UART Slave 4 205 kΩ 0x04
UART Slave 3 280 kΩ 0x05
UART Slave 2 374 kΩ 0x06
UART Slave 1
(Secondary)
Open 0x07
TPS65982
