Analog Front End IC TMS37122 - Reference Guide August ’01

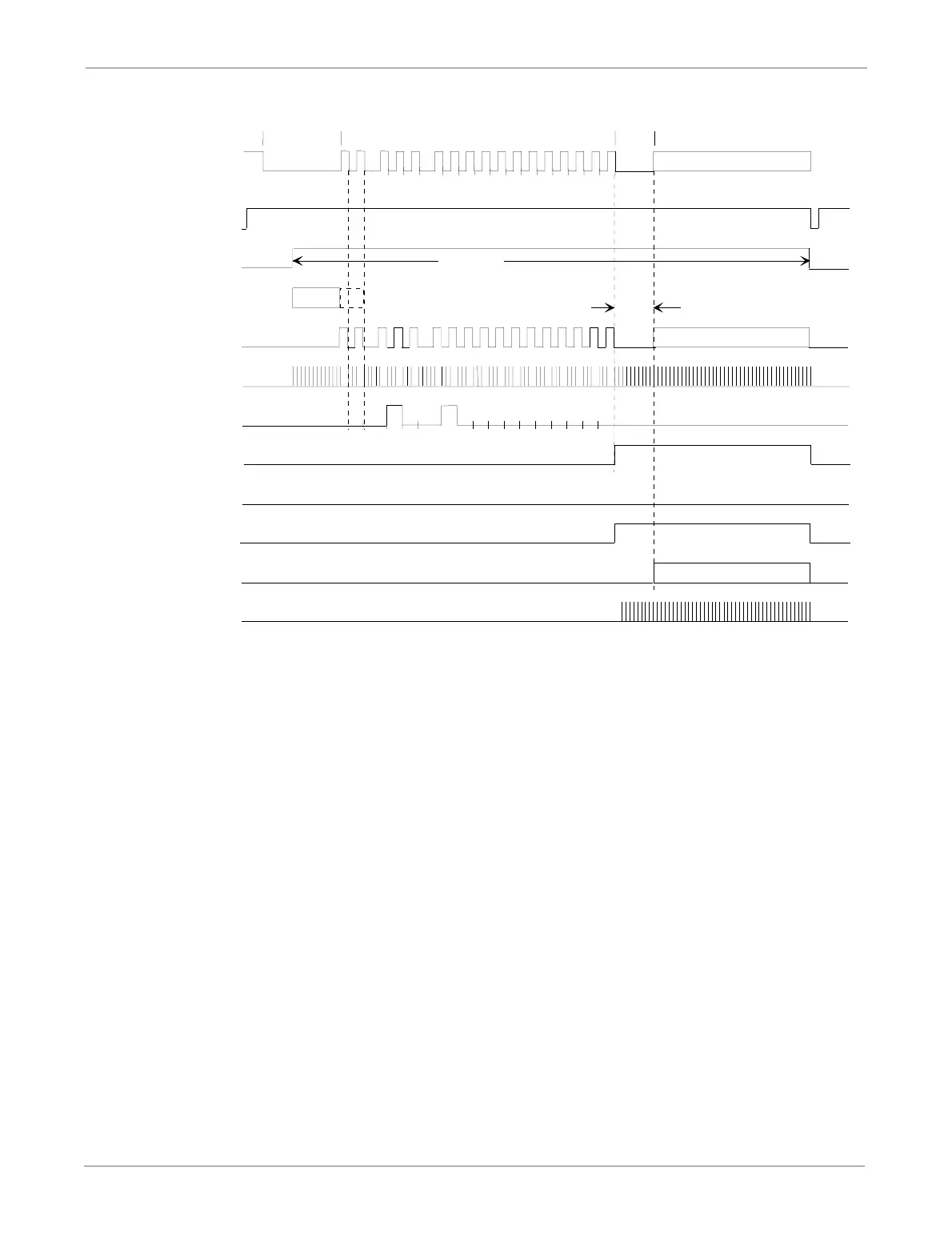

Figure 28: Passive Entry Wake Pattern Detection
After checking the Command the Microcomputer knows that a Passive Entry function is re-
quested (see Figure 29). The Challenge will be encrypted (ENCR), respectively the Rolling
Code will be determined depending on the system. Then the Microcomputer waits for the next
EOBA signal created by the Base Station, switching off the Transmitter. When this has hap-
pened, the UHF Transmitter is activated and the Response Telegram is sent to the Base Sta-
tion. There the Response is checked and the door is opened if valid.
The Microcomputer initializes the 3D-AFE after transmission of the Response with a short
negative pulse at WDEEN. The circuit returns to Standby Mode and is ready for next cycle.
