Texecom Speech Dialler Installation Manual

Speech Dialler Installation Manual
INS232-2 9

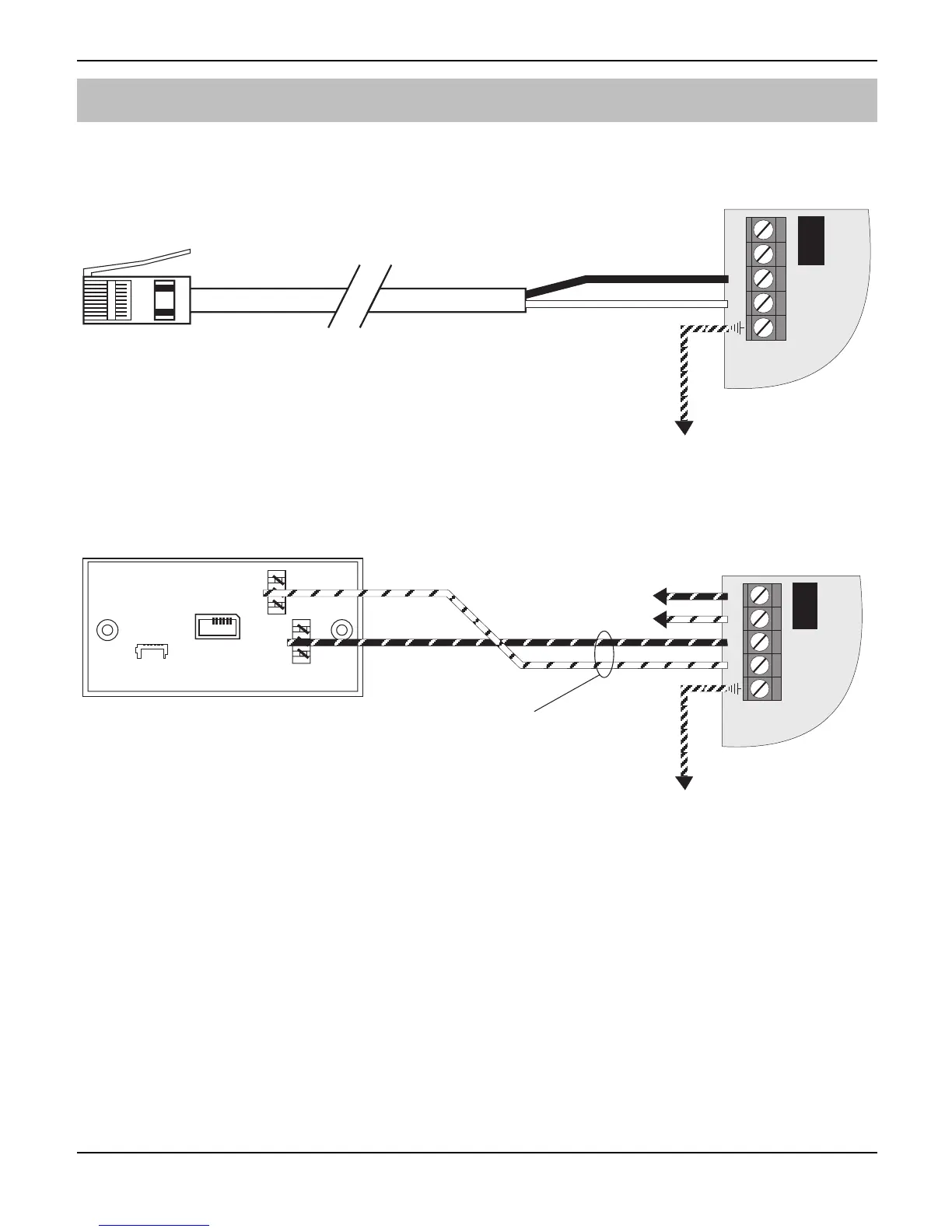

Connections to the Telephone Line
The easiest way to connect the dialler to the telephone line is to use the telephone
lead that is provided with the unit as shown below:
Black
Yellow
Standard BT telephone plug
R1 T1 R T
Connect to Earth
However, if the lead is not long enough or the serial connection is required the dialler
can be hard wired to the telephone socket as shown below:
3
2
1
6
5
4
White/Blue
BT Master Jack (NTE5)
User accessible connections
Cable type 1/0.5mm CW1308
Blue/White
R1 T1 R T
Connect to Earth
To other telephone
extension sockets
Failure to fit an earth cable may prevent proper operation of the system
and will invalidate the Texecom warranty and product approval.
The telephone cable must be secured using the screw mount cable tie
provided.
#"
