©Copyright Task Force Tips LLC 2002-2021 19 LIN-030 May 21, 2021 Rev18
9.3 IMPULSE TRIGGER VALVE SYSTEM NOZZLE COLORED PISTOL GRIPS
The TFT Impulse Trigger Valve System nozzles are supplied with black pistol grip covers. The pistol grip covers are available from TFT
in various colors for those departments wishing to color code the nozzle to the discharge controls. Follow the steps below to change the
pistol grip cover.
1. Orient nozzle vertically. This keeps the dampening fluid in the pistol grip from spilling
out.
2. Remove the Cap. (1/2 in square drive) The Adjusting Screw (3/16 in Allen Wrench) may
need to be turned in or removed to be able to engage the square pocket in the cap.
Note the position of the Adjusting Screw before moving it.
3. Slide off the Pistol Grip Cover and install a new one. Be sure the Pistol Grip Cover’s
internal rib is toward the back of the nozzle.
4. Reinstall the Cap until it bottoms out on its shoulder.
5. Reinstall or reposition the Adjusting Screw if it has been moved from its original
location.
6. Flow nozzle to check performance of slow closer. Adjust as needed.
9.4 SERVICE TESTING
In accordance with NFPA 1962, equipment must be tested a minimum of annually. Units failing any part of this test must be removed
from service, repaired and retested upon completion of the repair.
9.5 REPAIR
Factory service is available with repair time seldom exceeding one day in our facility. Factory serviced equipment is repaired by
experienced technicians, wet tested to original specifications, and promptly returned. Any returns should include a note as to the nature
of the problem and whom to reach in case of questions.
Repair parts and service procedures are available for those wishing to perform their own repairs. Task Force Tips assumes no liability for
damage to equipment or injury to personnel that is a result of user service. Contact the factory or visit the web site at tft.com for parts
lists, exploded views, test procedures and troubleshooting guides.
Performance tests shall be conducted on the equipment after a repair, or anytime a problem is reported to verify operation in accordance
with TFT test procedures. Consult factory for the procedure that corresponds to the model and serial number of the equipment. Any
equipment which fails the related test criteria should be removed from service immediately. Troubleshooting guides are available with
each test procedure or equipment can be returned to the factory for service and testing.
10.0 EXPLODED VIEWS AND PARTS LISTS
Exploded views and parts lists are available at tft.com/serial-number.
Service technicians bear responsibility for ensuring use of appropriate protective clothing and
equipment. The chosen protective clothing and equipment must provide protection from potential
hazards users may encounter while servicing equipment. Requirements for protective clothing and
equipment are determined by the Authority Having Jurisdiction (AHJ).
CAUTION
Any alterations to the product or its markings could diminish safety and constitutes a misuse of
this product.
All replacement parts must be obtained from the manufacturer to assure proper operation of the
device.

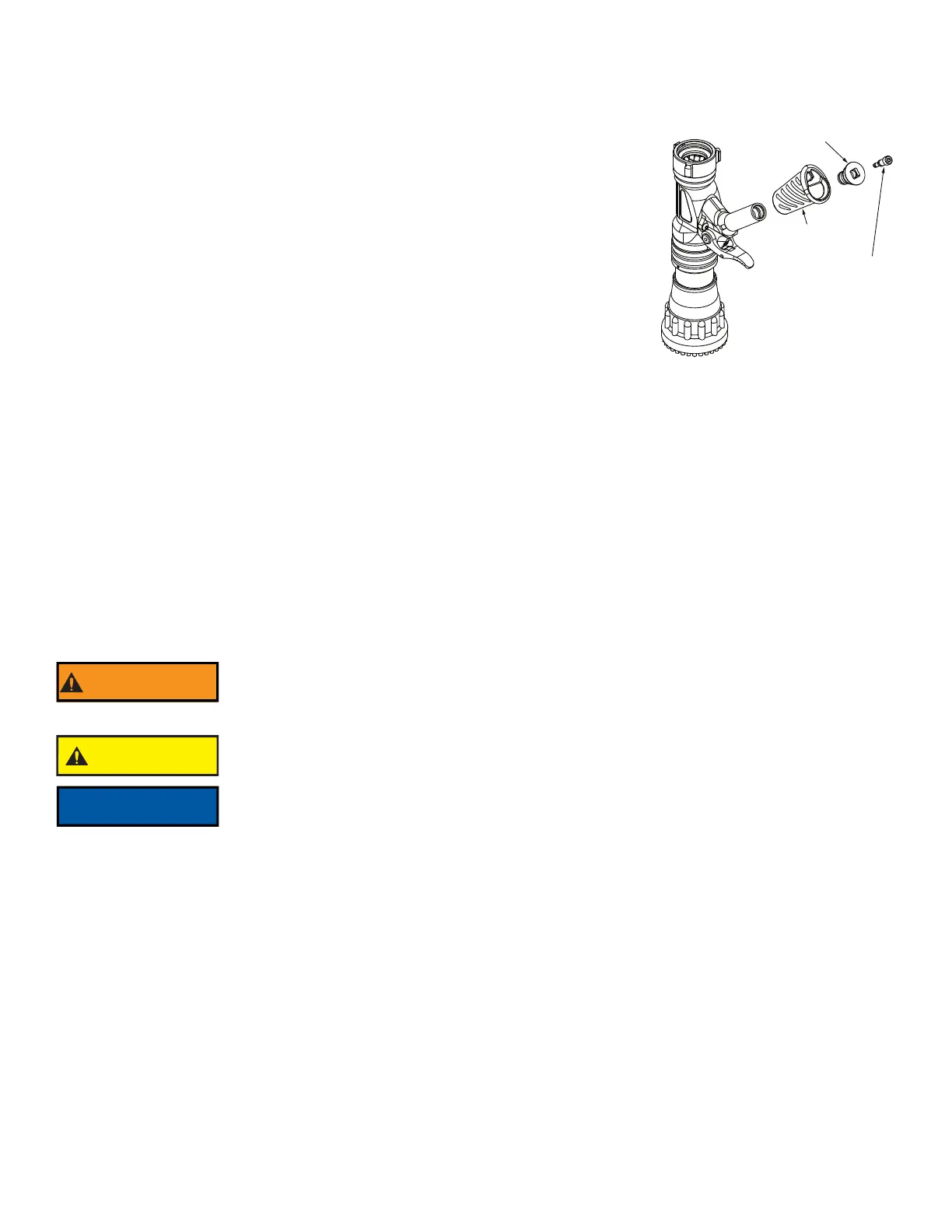

Pistol Grip Cover
Cap
(1/2 in square drive)
Adjusting Screw
(3/16 in Allen Wrench)
Figure 9.3
