Installation and Maintenance
Service Manual

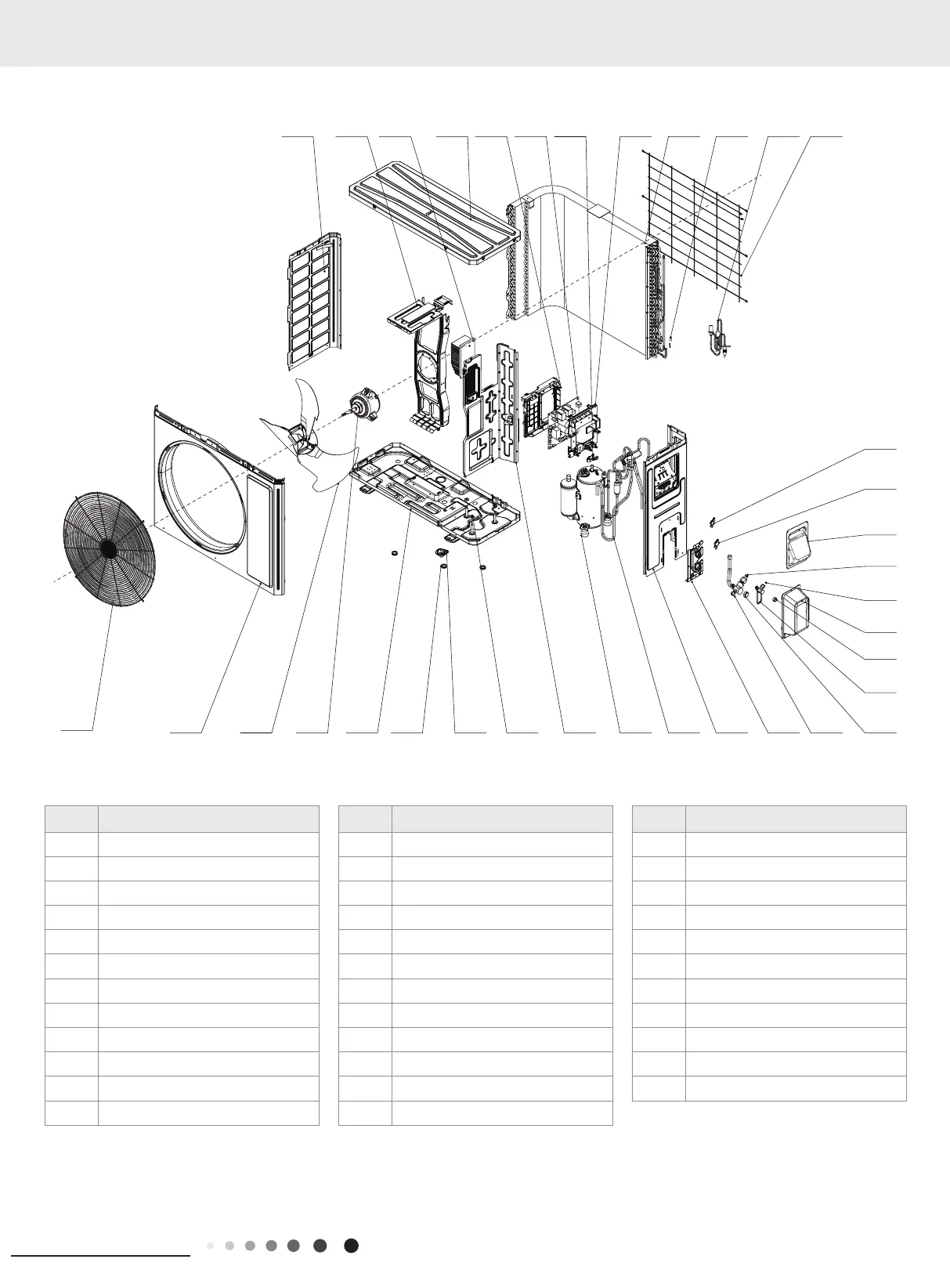

10. Exploded View and Parts List
NO. Description
1 Front Grill
2 Cabinet
3 Axial Flow Fan
4 Brushless DC Motor
5 Chassis Sub-assy
6 Drainage Plug
7 Drainage Connecter
8 Cushioned Nut
9 Clap Board Assy
10 Compressor and ttings
11 4-way Valve Assy
12 Right Side Plate Assy
NO. Description
13 Valve Support Sub
14 Cut-off Valve
15 Back Cover Nut
16 Cut-off Valve
17 Back Cover Nut
18 Valve Cover
19 Union Nut
20 Union Nut
21 Handle
22 Support
23 Valve Support Bafe
24 Rear Grill
Some models may not contain some parts, please refer to the actual product.
NO. Description
25 Electronic Expansion Valve assy
26 Temperature Sensor
27 Condenser Assy
28 Electric Box Cover
29 Pipe Clamp
30 Main Board
31 Electric box
32 Top Cover-assy
33 Motherboard radiator
34 Motor Support Sub-Assy
35 Left Side Plate
GRHART36AS3
The component picture is only for reference; please refer to the actual product.
1
2 3 4 5 6 7 8 9 10 11 12 13 14 15
16
17
18
19
21
22
23
20
