TGM YAP1FF - Exploded View and Parts List; Indoor Unit

85
Installation and Maintenance
Service Manual

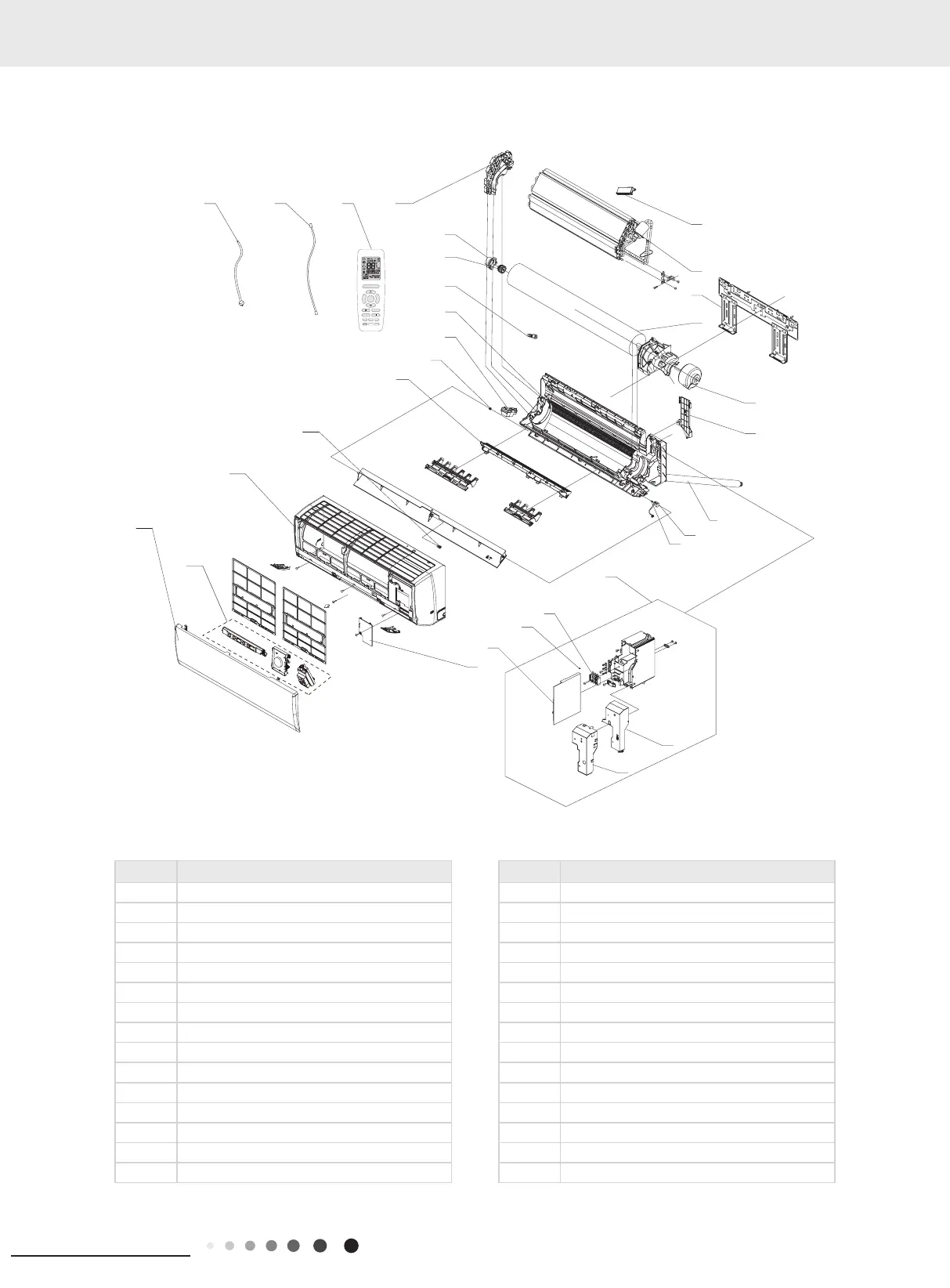

10. Exploded View and Parts List
10.1 Indoor Unit
Some models may not contain some parts, please refer to the actual product.
The component picture is only for reference; please refer to the actual product.
GWHART09SA2
No. Description
1 Front Panel
2 Front Case
3 Axile Bush
4 Helicoid Tongue
5 Left Axile Bush
6 Display Board
7 Rear Case assy
8 Rubber Plug (Water Tray)
9 O-Gasket sub-assy of Bearing
10 Ring of Bearing
11 Cold Plasma Generator
12 Evaporator Assy
13 Wall Mounting Frame
14 Cross Flow Fan
15 Fan Motor
No. Description
16 Connecting pipe clamp
17 Drainage Hose
18 Stepping Motor
19 Crank
20 Electric Box Assy
21 Terminal Board
22 Jumper
23 Main Board
24 Electric Box Cover Sub-Assy
25 Shield Cover of Electric Box Cover
26 Electric Box Cover
27 Power Cord
28 Connecting Cable
29 Remote Controller
30 Evaporator Support
292827
30
2
4
9
10
7
12
13
15
16
17
18
19
20
21
22
23
25
26
8
1
3
5
11
14
24
6
6
ON/OFF
MODE
I FEEL T-ON T-OFF
TURBO
TEMP
CLOCK
LIGHT
X-FAN
SLEEP
FAN
