GRHART18AS2
Some models may not contain some parts, please refer to the actual product.

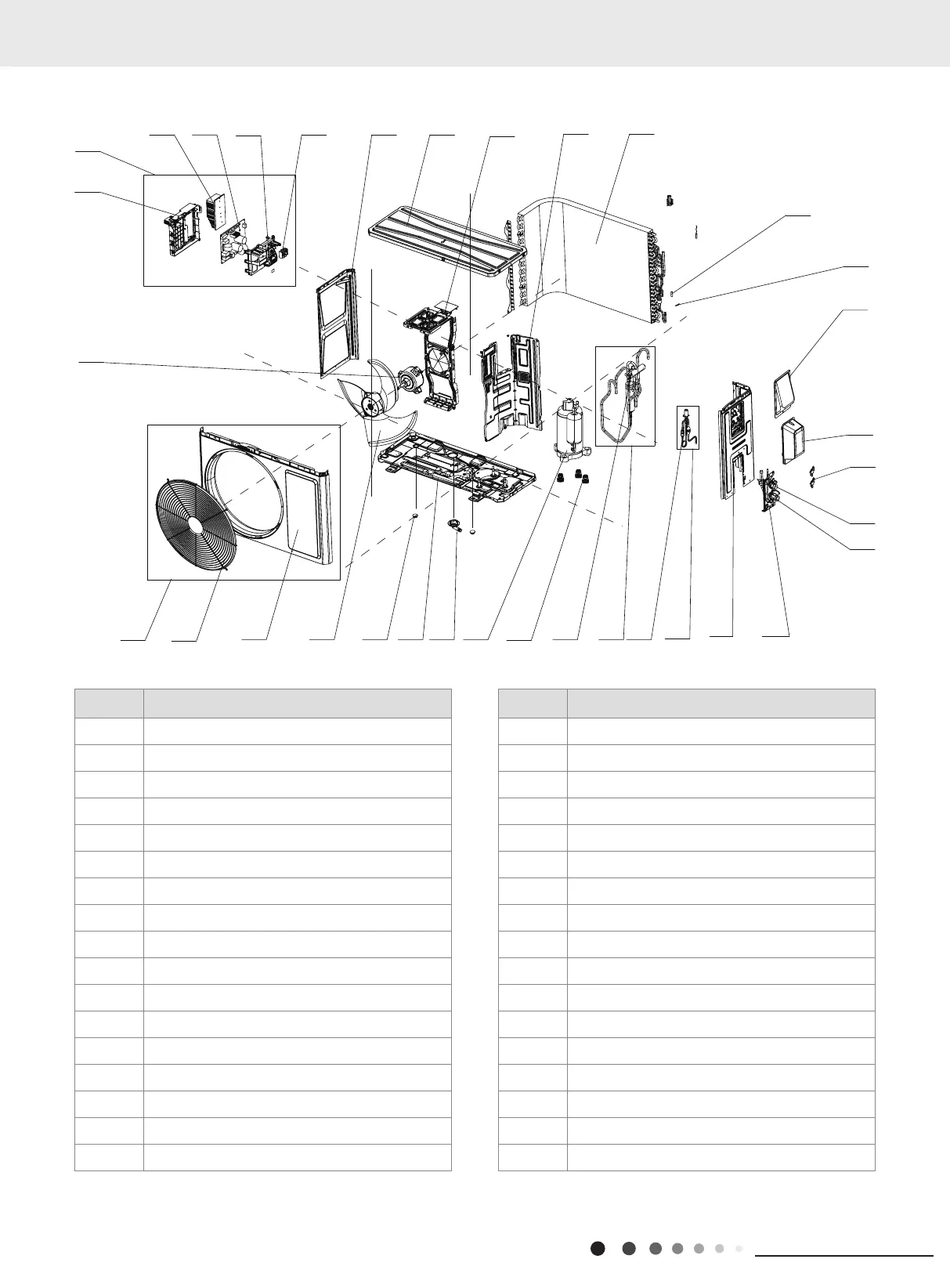

10. Exploded View and Parts List
