11.2 Removal Procedure of Outdoor Unit
Caution: discharge the refrigerant
completely before removal.
11. Removal Procedure
Step Procedure

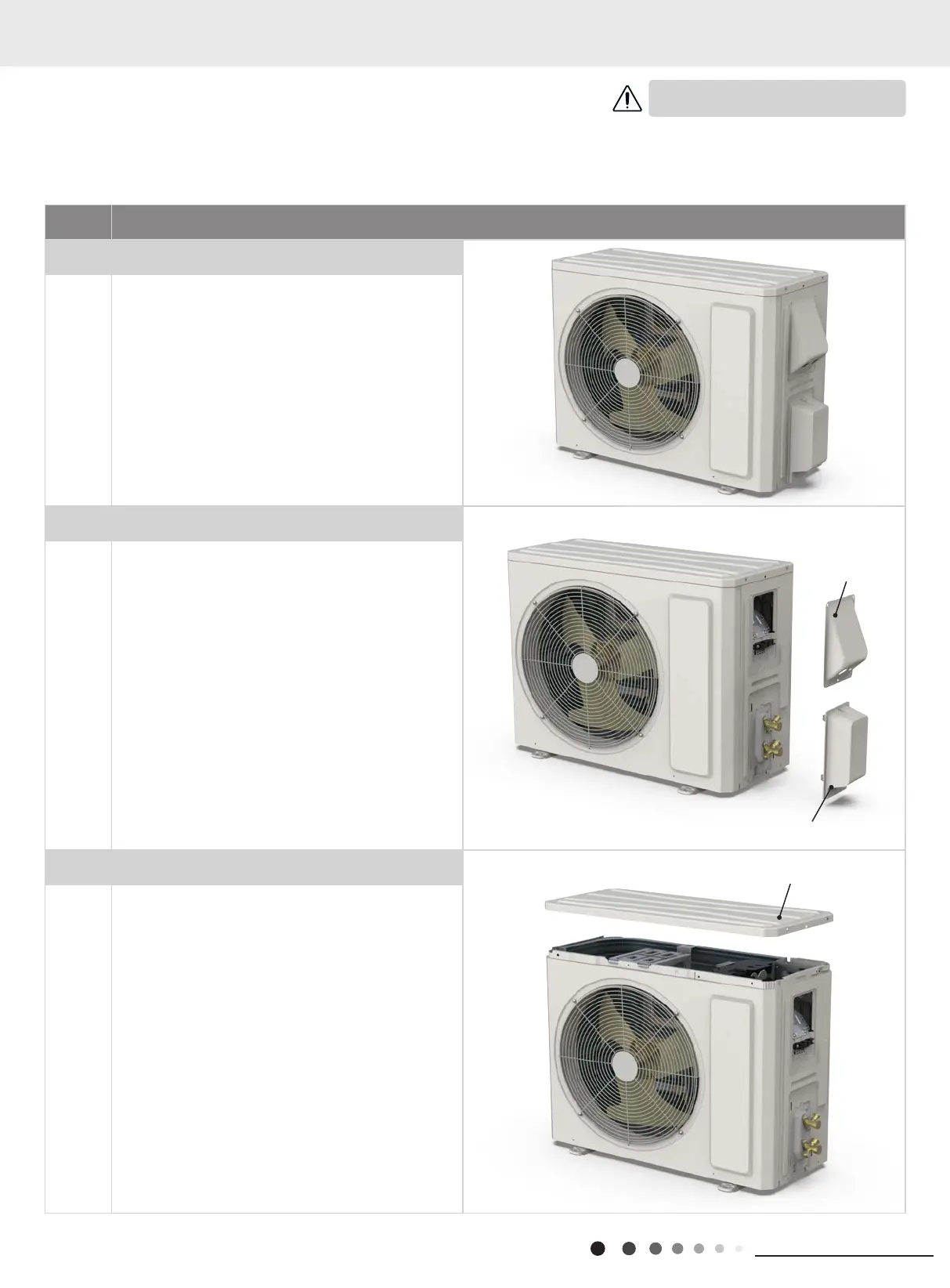

1. Before disassembly
2. Remove Cover of Pass Wire and valve cover
Remove the screws fixing Cover of Pass Wire
,
valve
cover and then remove them.
3. Remove top cover
Remove the screws xing top panel and then remove
the top panel.
Cover of
Pass Wire
Valve cover
Top cover
