Installation and Maintenance
Service Manual
Step Procedure

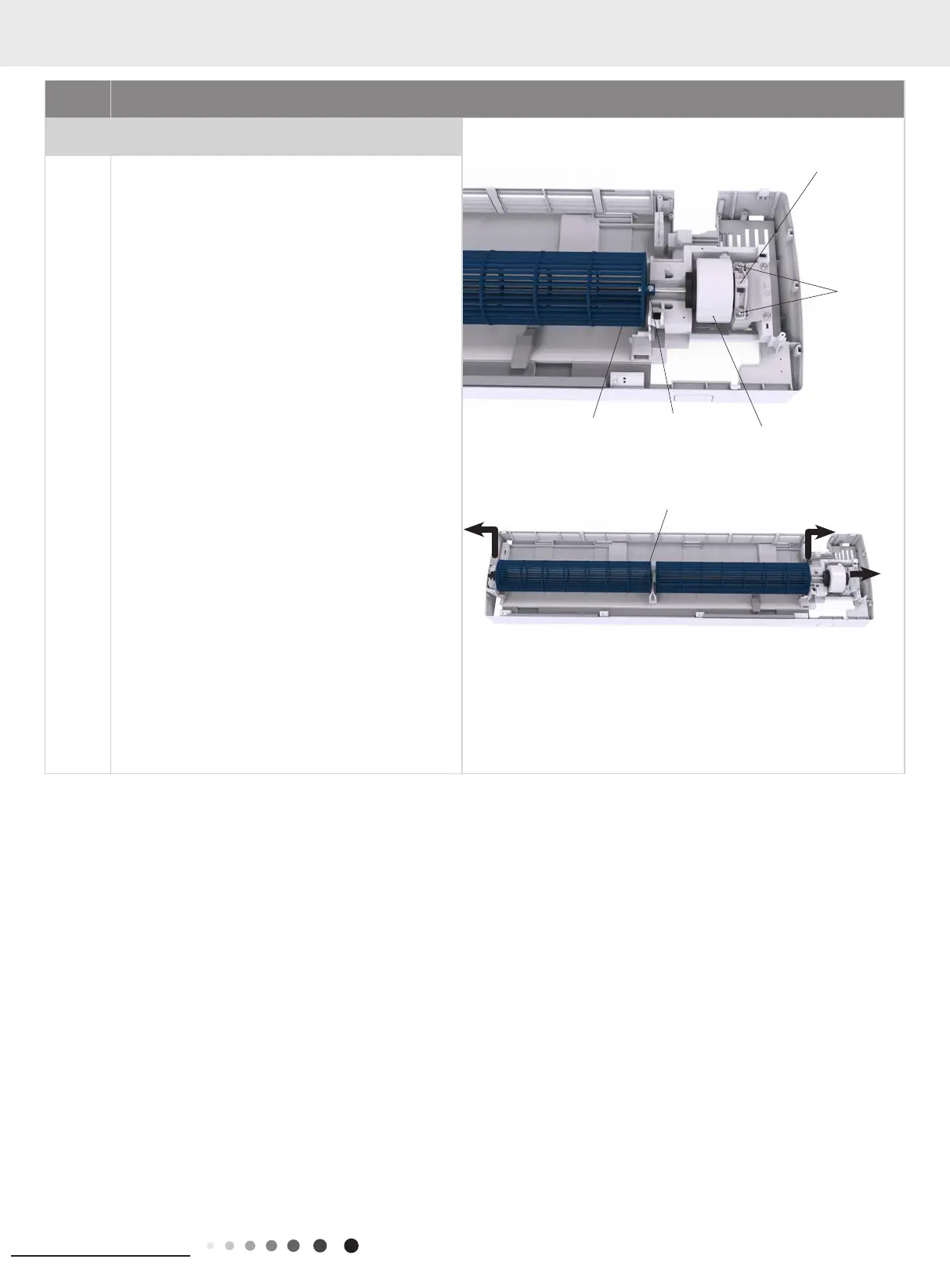

8.Remove motor and cross ow fan
a
b
Remove the screws xing motor xed clip 2 and then
remove the motor xed clip 2.
Remove the screw on the motor shaft and pull out the
motor.
Remove the screw fixing cross flow fan, leave out of
the cross ow fans.
Screws
Screw
Screw
Motor
Cross ow fan
Motor Fixed Clip 2
11. Removal Procedure
