103
Installation and Maintenance
Service Manual
Clasps
Electric box
11. Removal Procedure
Step Procedure

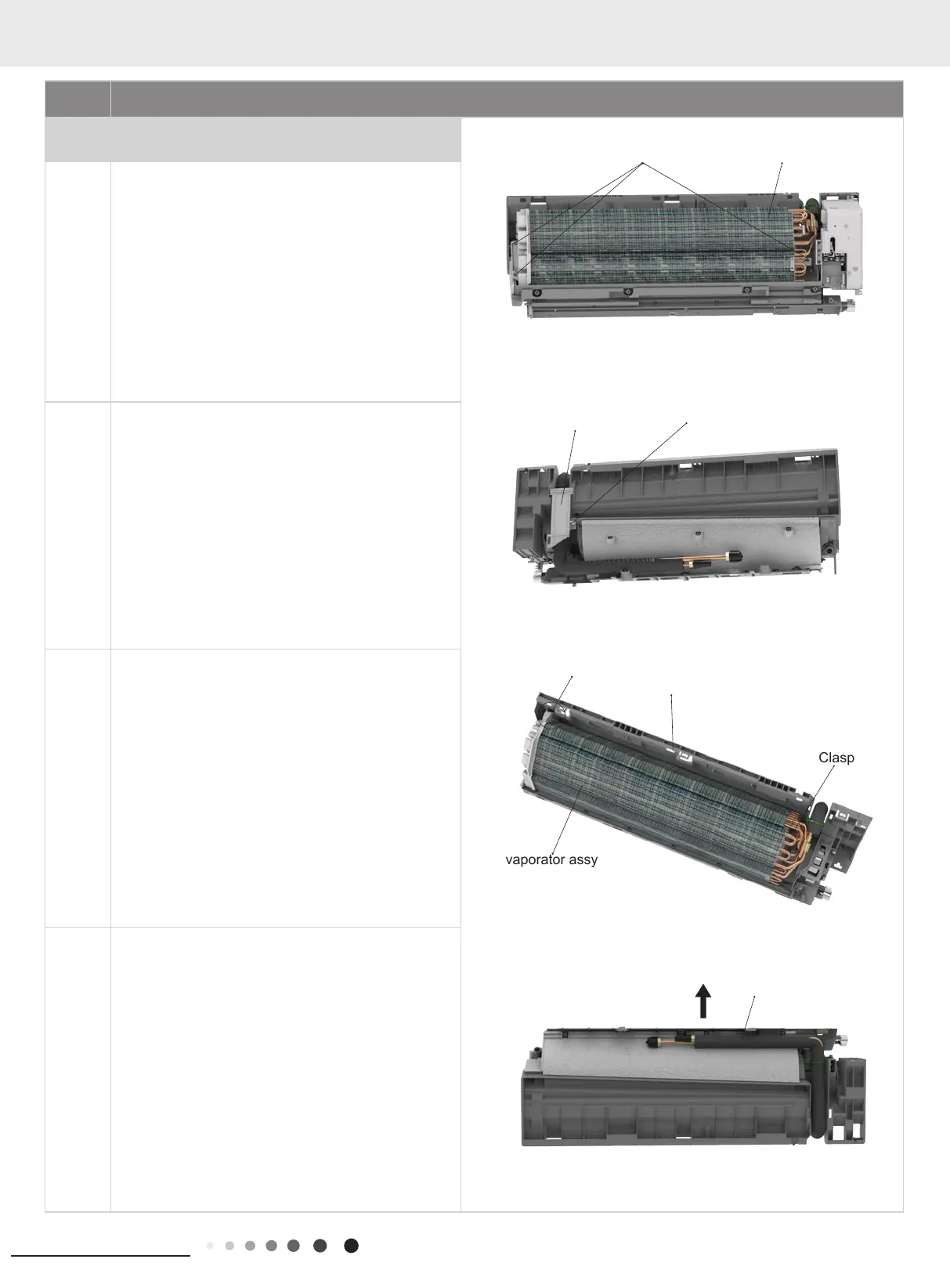

8.Remove evaporator assy
a
Remove 3 screws xing evaporator assy.
b
At the back of the unit, remove the screw fixing
connection pipe clamp and then remove the connection
pipe clamp.
c
First remove the left side of the evaporator from the
groove of bottom case and then remove the right side
from the clasp on the bottom case.
d
Adjust the position of connection pipe on evaporator
slightly and then lift the evaporator upwards to remove
it.
Screw
Connection
pipe clamp
Groove
Bottom case
Clasp
Evaporator assy
Connection pipe
Screw
Evaporator assy
To Next Page
