GRHART09AS2 GRHART12ASA2 GRHART12AS2
5
6
7
8
9
11
12
13
14
15
16171819202122232425262728
29
30
31
32
33
34
35
36
37 38
NO. Description
1 Top Cover Assy
2 Condenser Left Border Plate
3 4-Way Valve
4 Sponge(Condenser)
5 Rear Grill
6 Condenser Assy
7 Temp Sensor Sleeving
8 Sensor Insert
9 Right Side Plate
10 Earthing Plate Subassy
11 Wire Clamp
12 Electronic Expansion Valve
13 Electric Expand Valve Fitting
NO. Description
14 Cable Cross Plate
15 Valve Cover
16 Silencer
17 Cut off Valve Sub-Assy
18 Strainer
19 Cut-off valve 1/4(N)
20 Valve Support
21 4-Way Valve Assy
22 Compressor and Fittings
23 Chassis Sub-assy
24 Motor Support
25 Brushless DC Motor
26 Axial Flow Fan
NO. Description
27 Cabinet
28 Front Grill
29 Drainage Joint
30 Left Side Plate
31 Clapboard
32 Electric Box Assy
33 Electric Box
34 Main Board
35 Electric Box Cover
36 Terminal Board
37 Temperature Sensor
38 Radiator

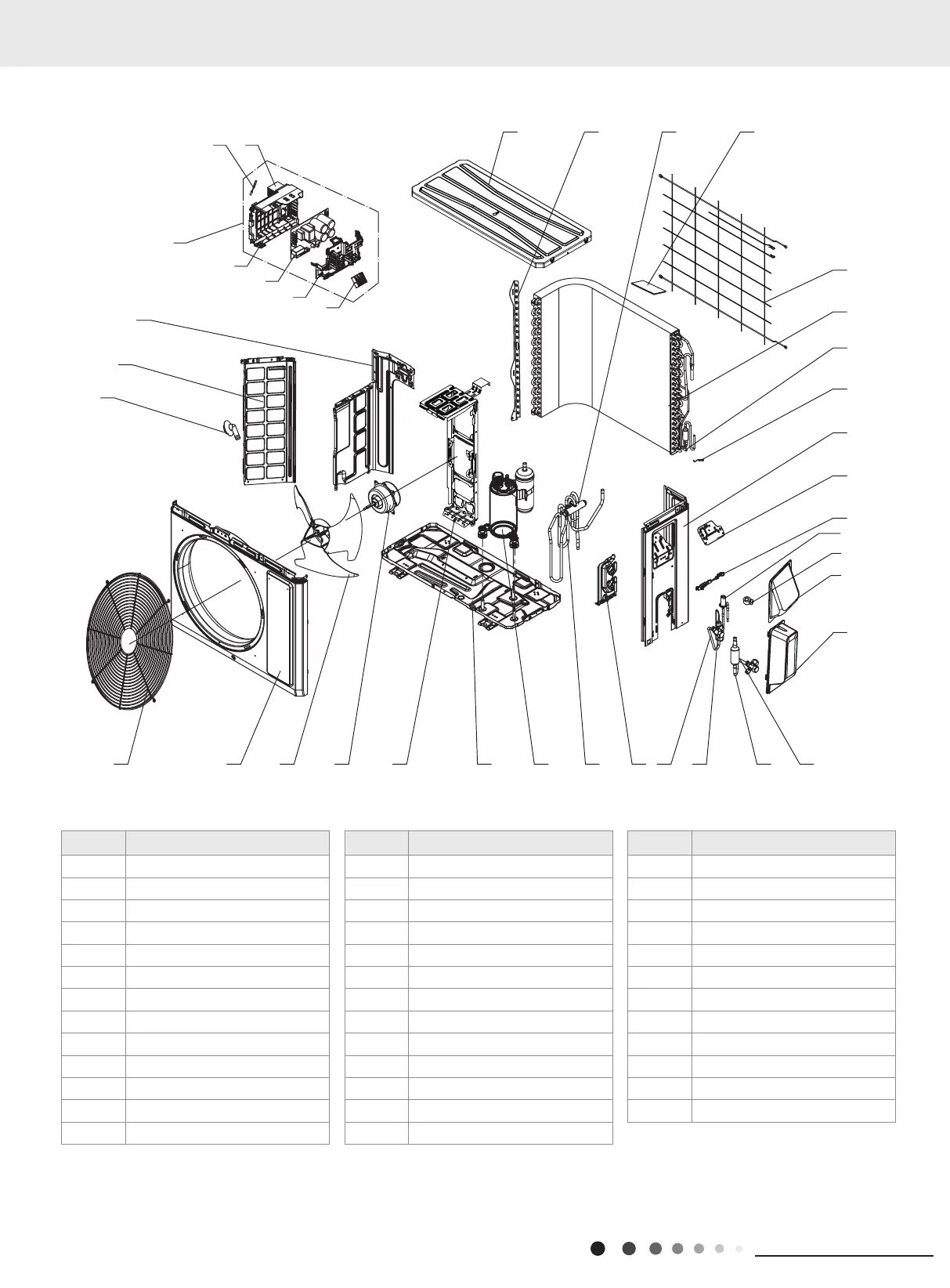

10. Exploded View and Parts List
