Installation and Maintenance
Service Manual

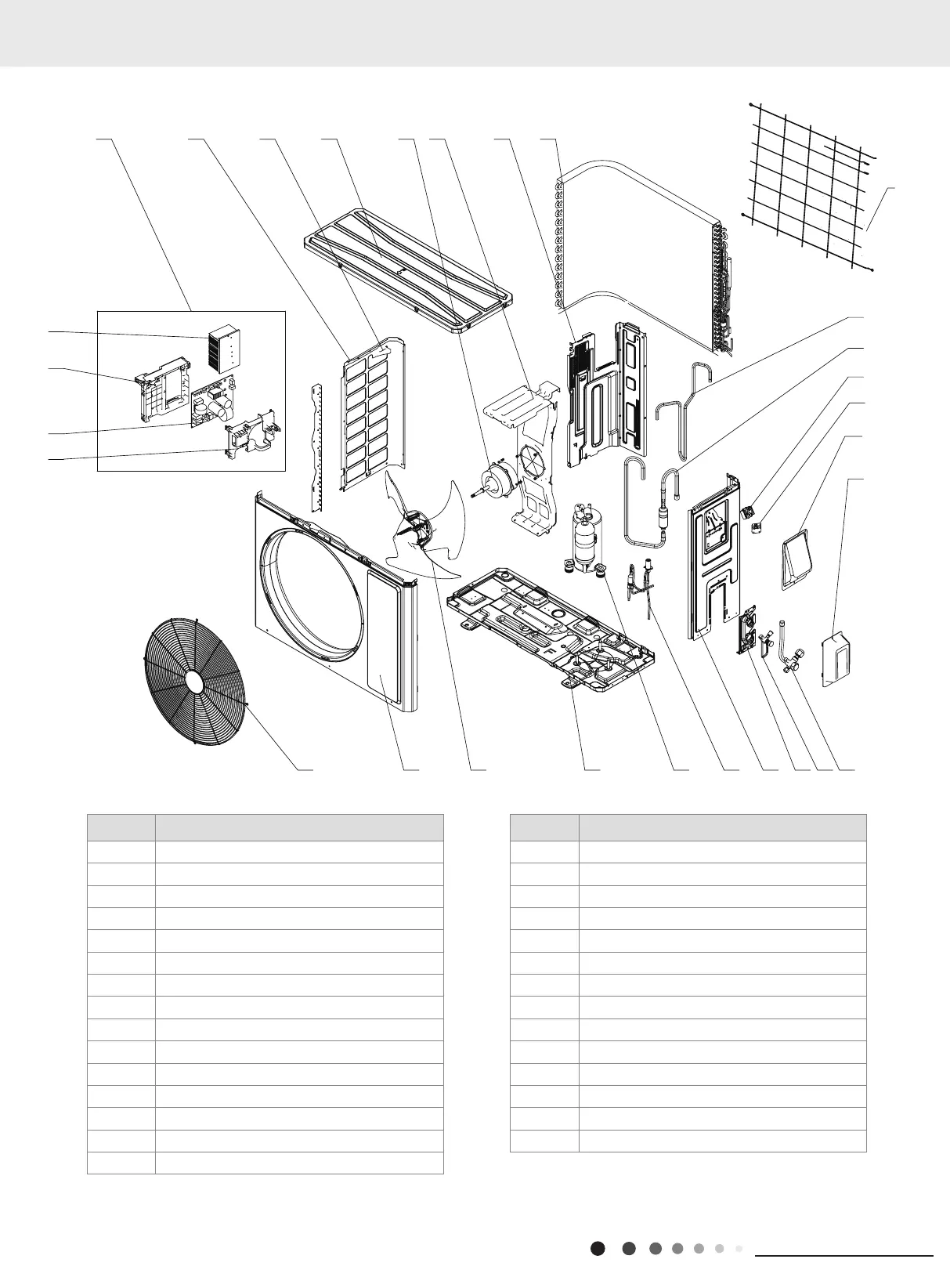

10. Exploded View and Parts List
The component is only for rererence;please refer to the actual product
GRART24AS2
NO. Description
1 Grill
2 Front Panel
3 Axial Flow Fan
4 Chassis Sub-assy
5 Compressor and Fittings
6 Electronic expansion valve parts
7 Right Side Plate
8 Valve Support
9 Cut off Valve
10 Cut off Valve
11 Valve Cover
12 Handle
13 Earthing Plate Sub-assy
14 Terminal Board
15 Inspiration Tube Assembly
NO. Description
16 Exhaust Pipe
17 Rear Grill
18 Condenser Assy
19 Clapboard Assy
20 Motor Support
21 Brushless DC Motor
22 Top Cover Assy
23 Left Side Plate
24 Condenser Left Border Plate
25 Electric Box Assy
26 Radiator
27 Electric Box
28 Main Board
29 Electric Box Cover
Some models may not contain some parts, please refer to the actual product.
12
11
13
14
15
16
1819202122232425
26
27
28
29
