Do not use to cut adhesive labels!
Glue residue will be left on the
cutter blade and impair its
function.
The cutter has a blade life of
500,000 cuts when using paper
weighing 160 g/m² and 250,000
cuts when using paper weighing
200 g/m².
43

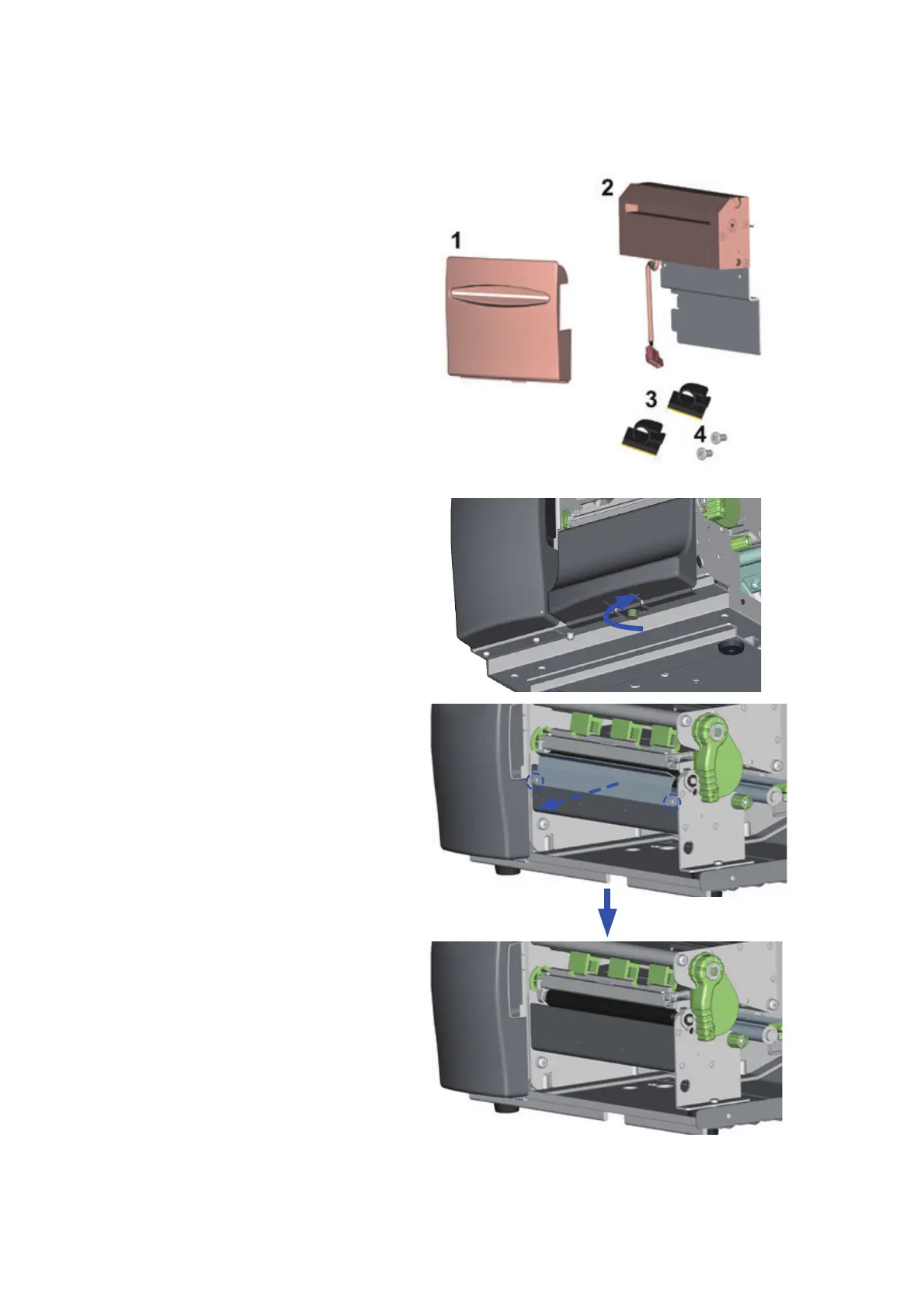

Components
1. Cutter Cover
2. Cutter Module
3. Cable Clips
4. Screws
1. Face the front of the Printer and
remove the Lower Cover Plate Screw.
2. Remove the Lower Cover Plate.
3. Remove the two screws in the front
of the Printer to remove the Tear
Off Bar.
To Next Page
