Tharo Systems H-435+ - Ribbon Shield Adjustment

6 Maintenance and Adjustment
6.6 Ribbon shield adjustment
(a) (b)
A
B
52
If ribbon wrinkle occurs during printing, adjust the ribbon shield.
Example:

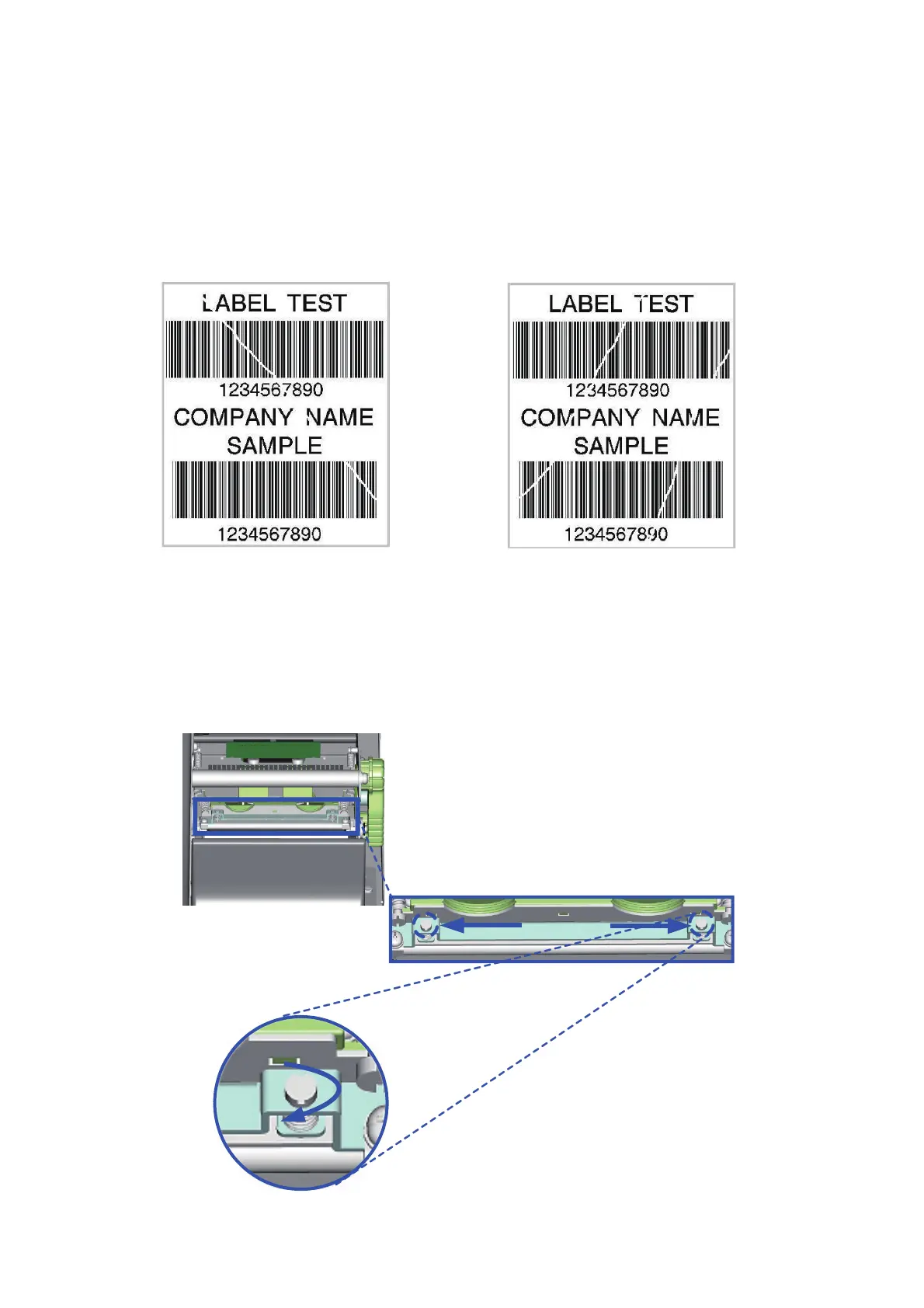

If ribbon wrinkle occurs as shown in figure (a), please turn the ribbon shield screw A clockwise,
and if ribbon wrinkle occurs as shown in figure (b), please turn the ribbon shield screw B clockwise.
For best results, only adjust the screw by one half turn for each test print.
The maximum adjustment of the screw is two revolutions.
If the screws are turned more than the acceptable range, the paper feed may not be smooth.
