1 Barcode Printer
1
3

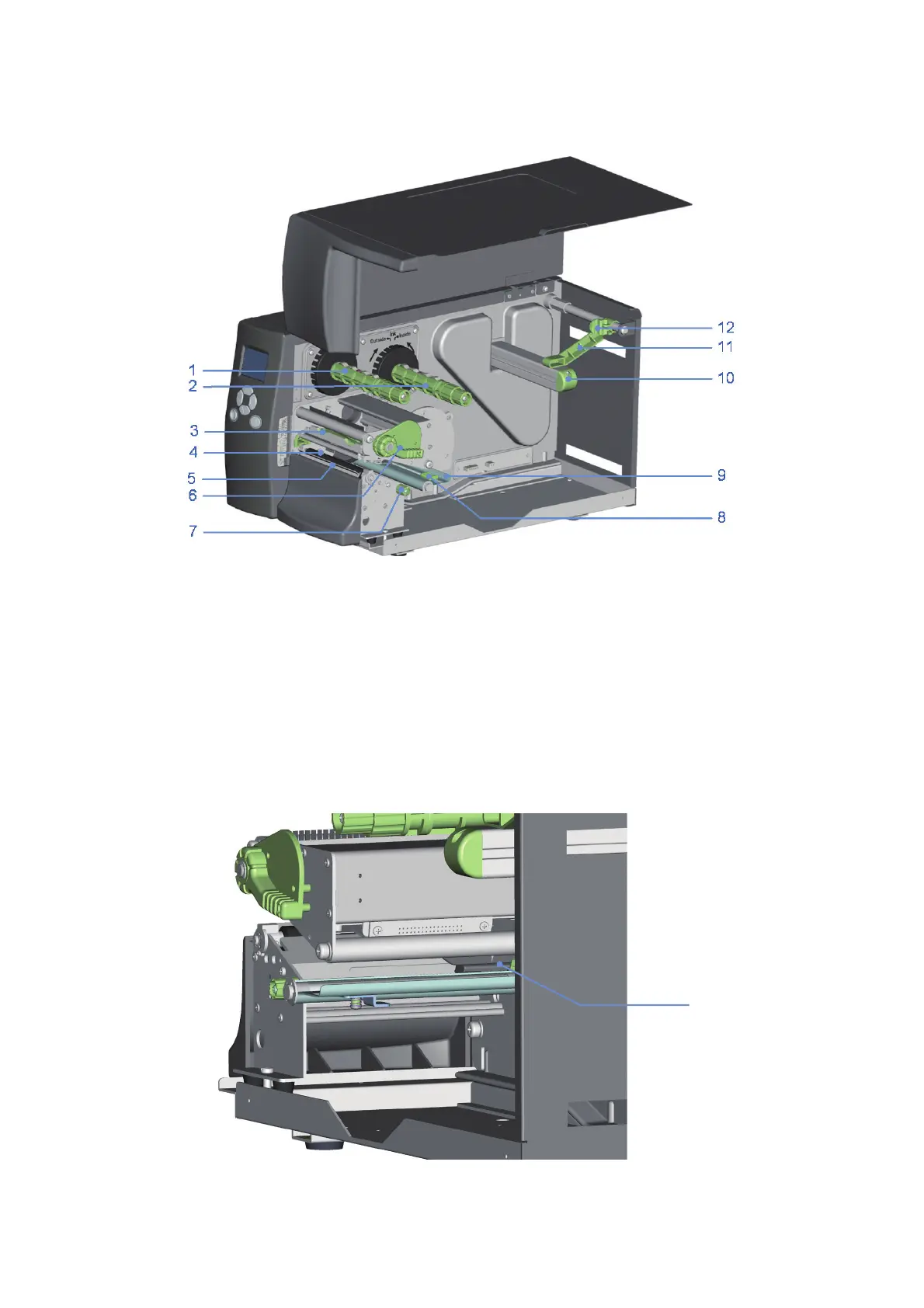

1. Moveable Sensor
1. Ribbon Rewind Hub
2. Ribbon Supply Hub
3. Printer Mechanism
4. Platen
5. Tear-off Plate
6. Printhead Lever
7. Sensor Adjustment Knob
8. Label Guide
9. Label Tension Guide
10. Label Supply Hub
11. Label Roll Guide
12. Release Catch
